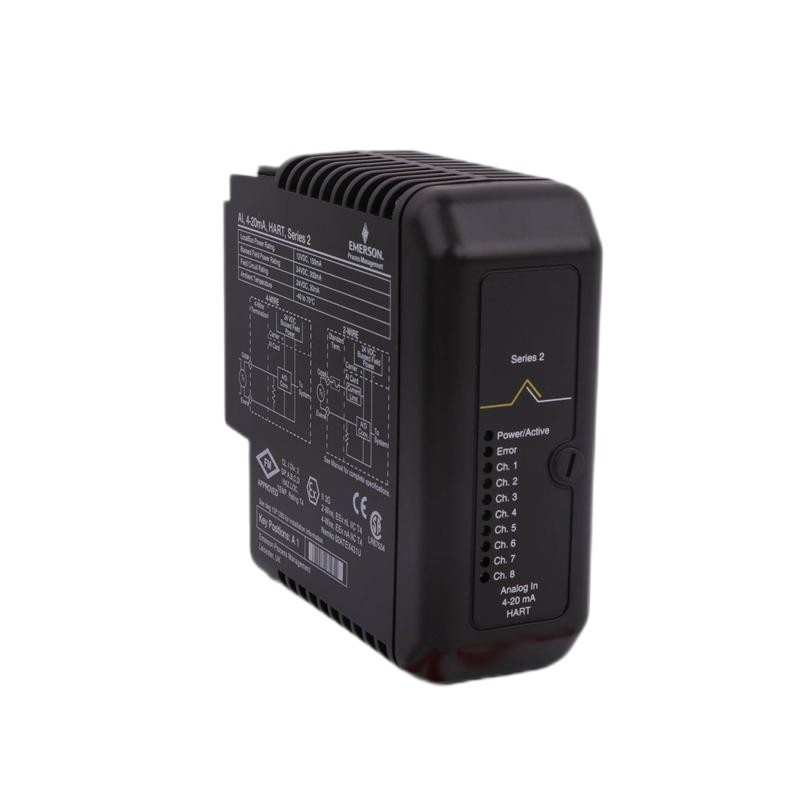

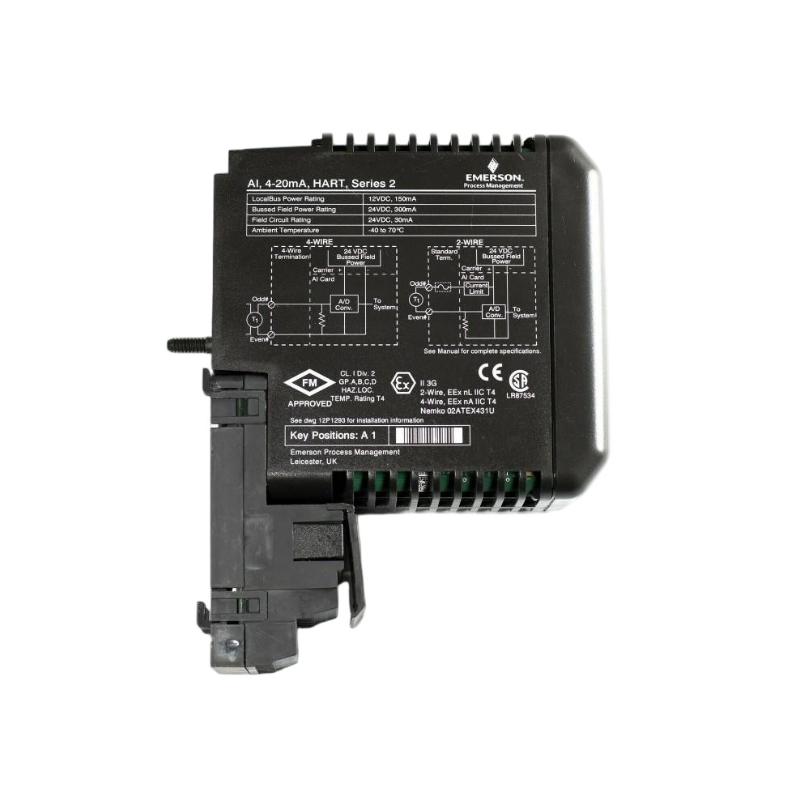

The Emerson SE4003S2B3 KJ3222X1-BA1 + KJ4001X1-CC1 Analog Input Module is a high-accuracy 8-channel 4–20 mA HART input solution designed for DeltaV™ distributed control systems. It is widely used for acquiring reliable process signals from field transmitters such as pressure, temperature, flow, and level instruments.

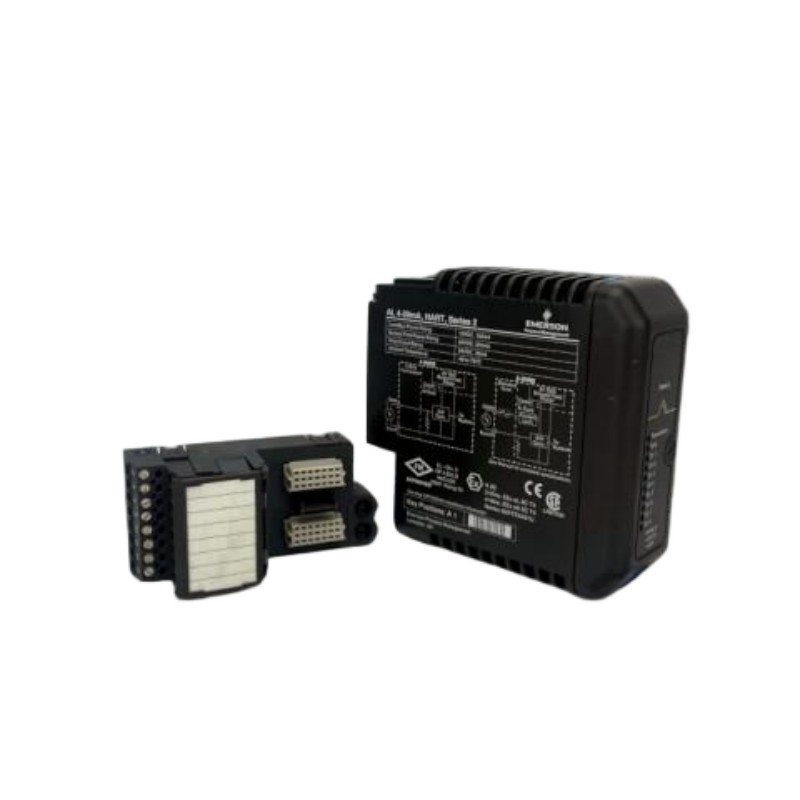

Built for industrial-grade performance, this module ensures stable signal conversion, strong noise immunity, and consistent measurement accuracy in continuous process environments. Its combination of the KJ3222X1-BA1 input card and KJ4001X1-CC1 termination block provides flexible installation and dependable field wiring integrity, making it suitable for critical automation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4003S2B3 (KJ3222X1-BA1 + KJ4001X1-CC1) |
| Module Type | Analog Input Module |
| System Platform | DeltaV M-Series |
| Input Channels | 8 Channels |
| Input Signal | 4–20 mA with HART |
| Input Card | KJ3222X1-BA1 |

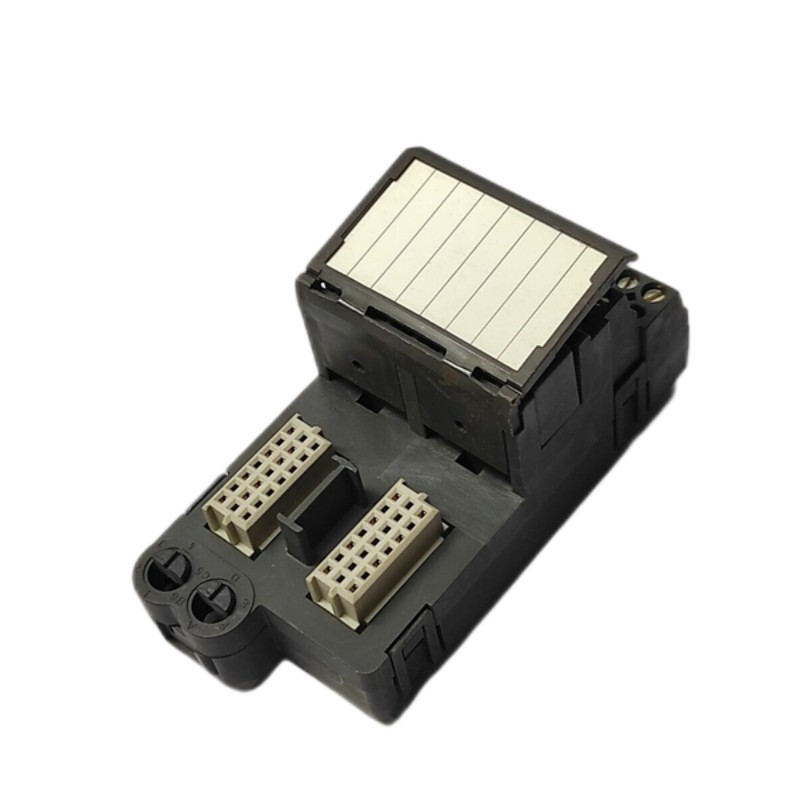

| Termination Block | KJ4001X1-CC1 |
| Accuracy | High-precision process measurement class |
| Communication | HART-enabled diagnostics |
| Power (LocalBus) | 12 VDC |
| Field Power | 24 VDC excitation support |
| Diagnostics | Channel-level diagnostics and device status |
| Installation Type | Carrier-mounted module |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Protection Class | Industrial-grade IP20 |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 160 × 130 × 45 mm |
| Weight | Approx. 0.45 kg |
