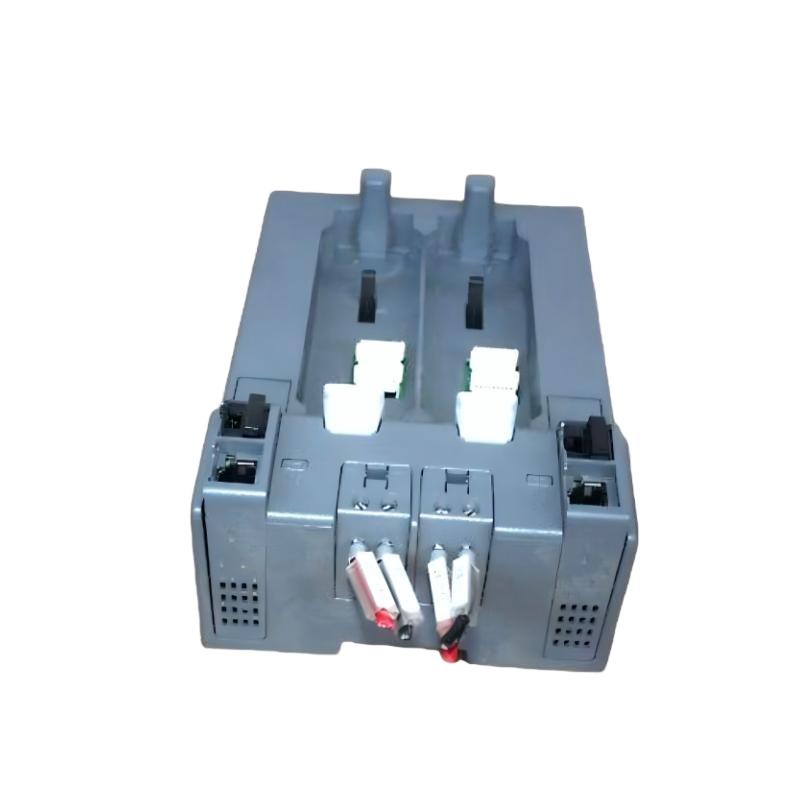

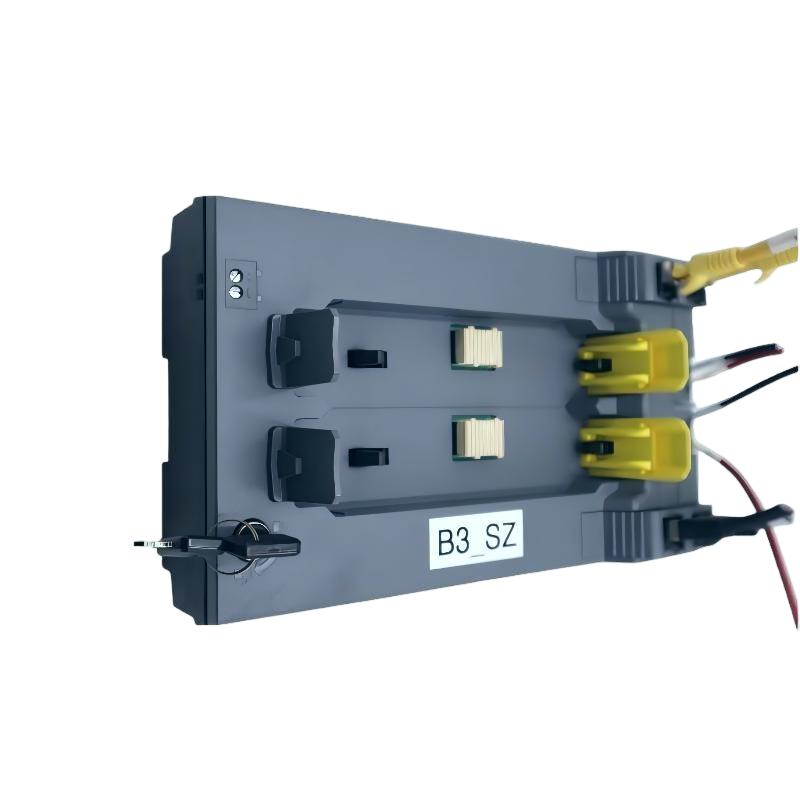

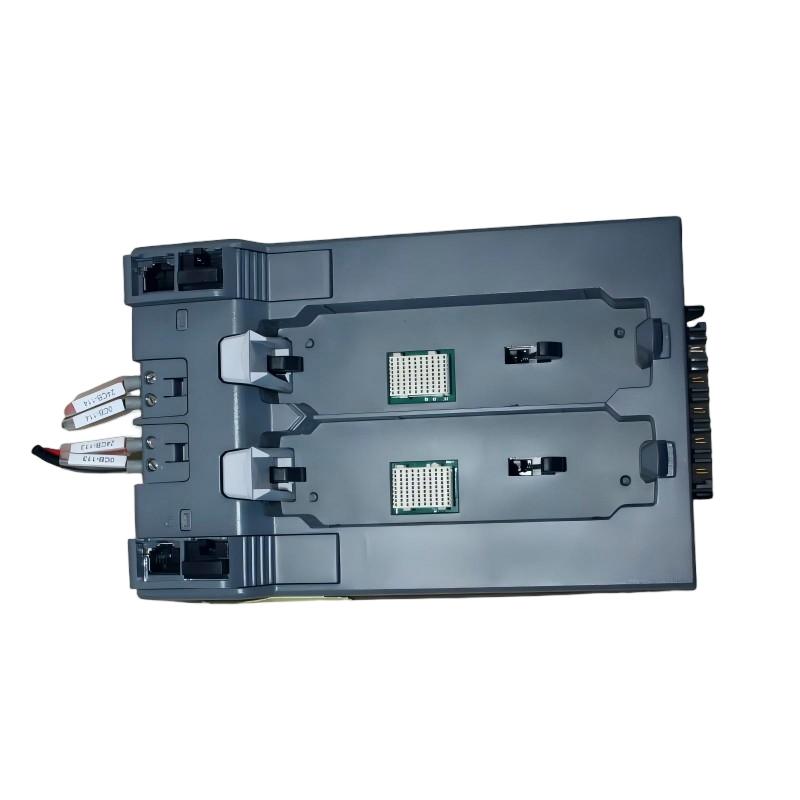

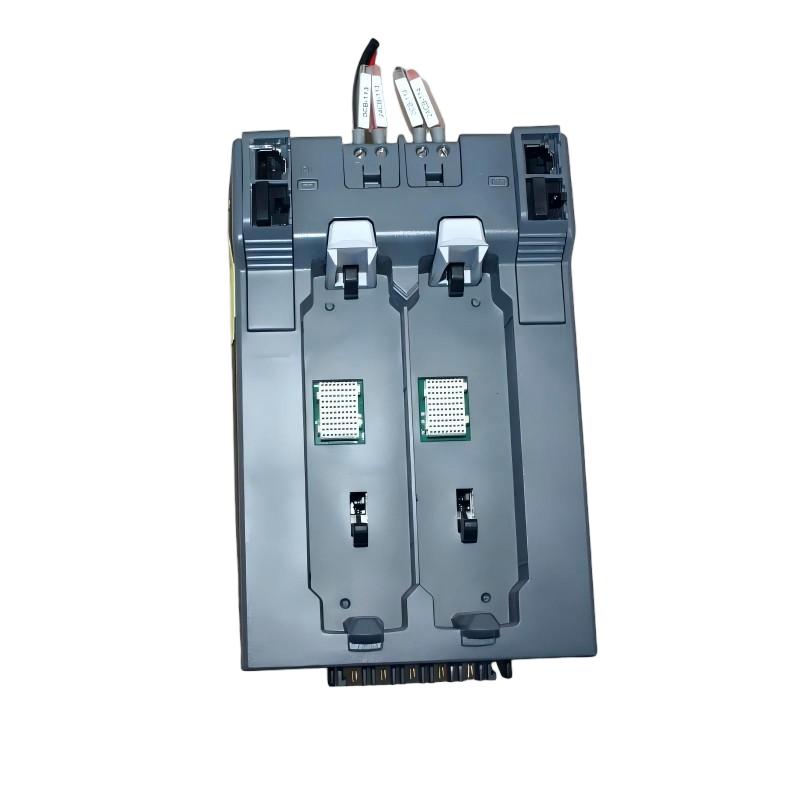

The Emerson KL4001X1-BA1 Controller Carrier Module is a core structural component used within DeltaV™ and SIS architectures to support controller and I/O assemblies. It provides a stable mounting and backplane interface that enables reliable communication, power distribution, and signal integrity between system modules.
Designed for safety-critical and continuous process environments, this carrier ensures mechanical rigidity and electrical stability for controller operation. It is commonly deployed in high-availability automation systems where modular scalability, redundancy support, and long-term reliability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KL4001X1-BA1 |
| Module Type | Controller Carrier Module |
| System Platform | DeltaV / SIS Architecture |
| Function | Module mounting, backplane communication, power distribution |
| Slot Configuration | Multi-module carrier support |
| Backplane Interface | High-speed system communication bus |
| Redundancy Support | Supported in system architecture |
| Installation Type | Rack / Cabinet mounted |
| Material | Industrial-grade metal chassis |
| Grounding | Integrated chassis grounding design |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Vibration Resistance | Industrial process control standard |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 482 × 178 × 76 mm |
| Weight | Approx. 2.6 kg |
