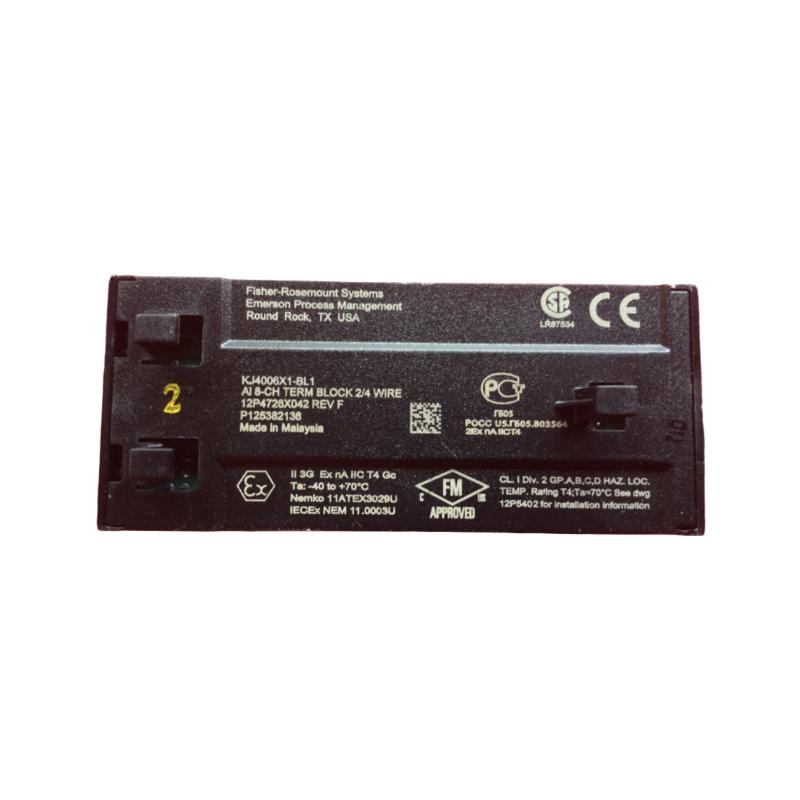

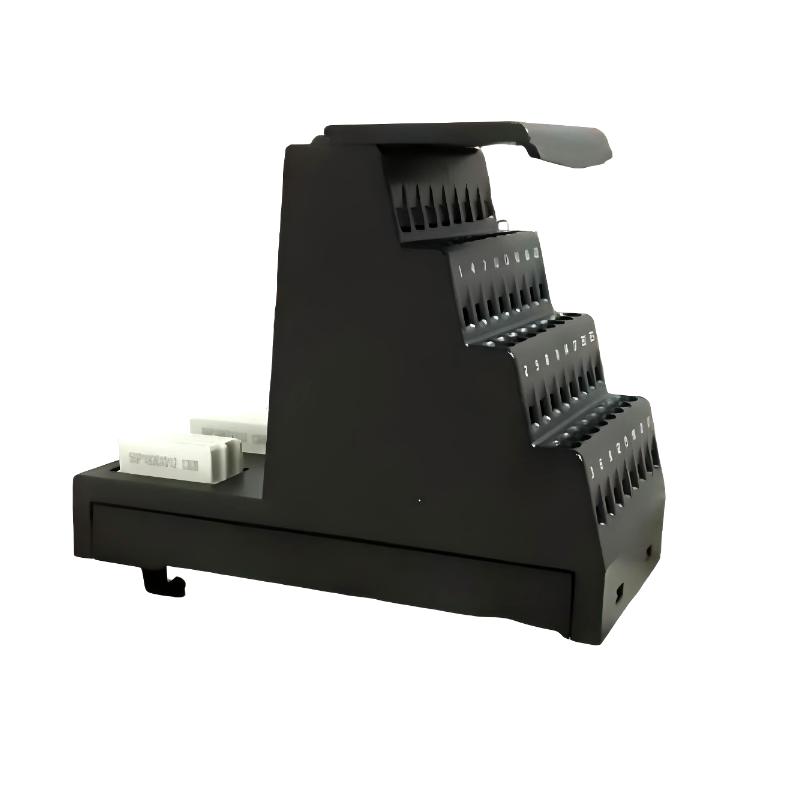

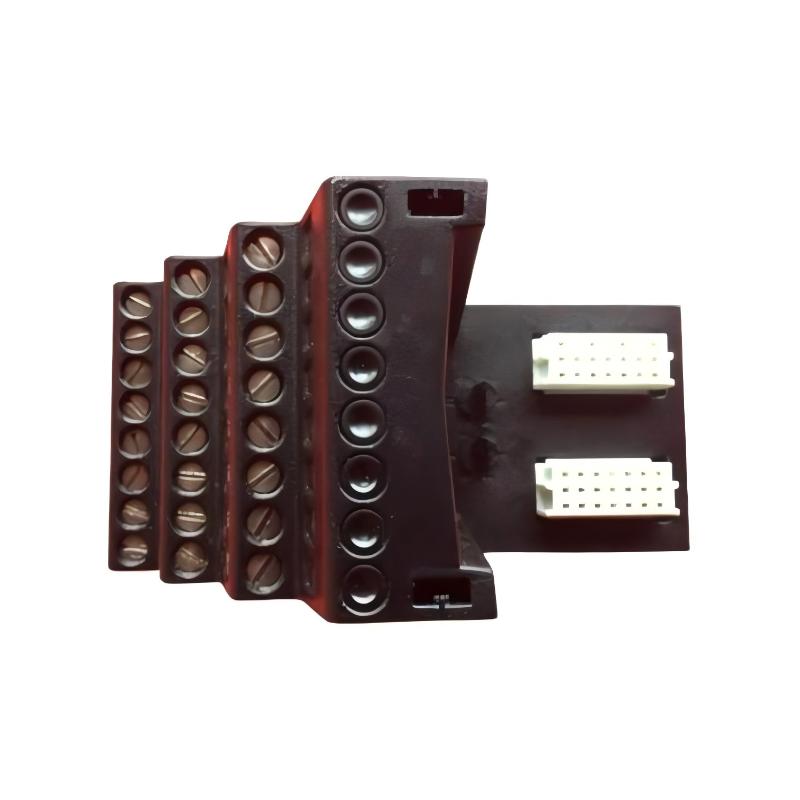

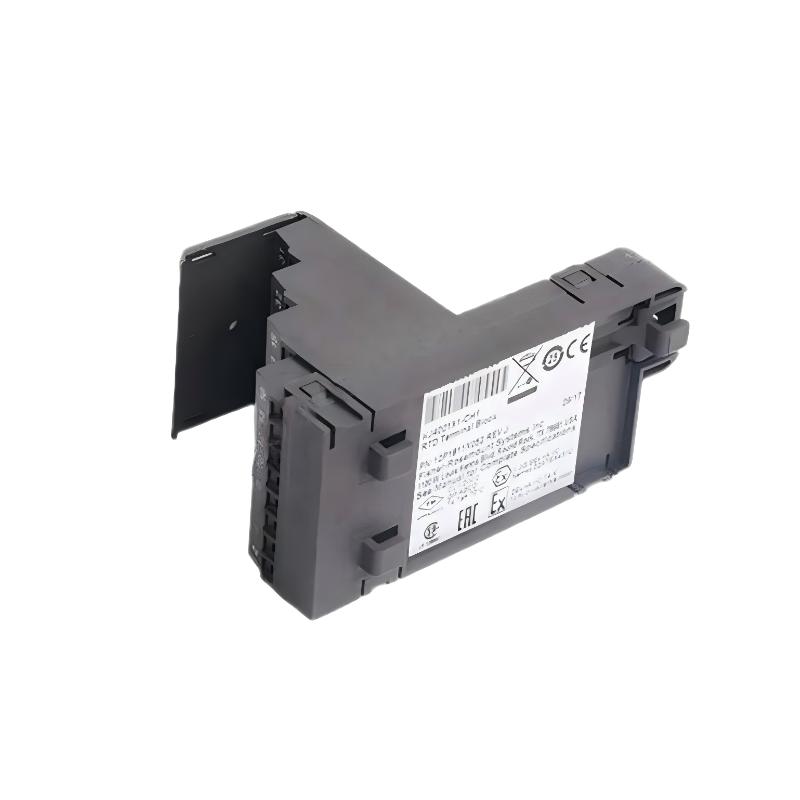

The Emerson KJ4006X1-BL1 Terminal Block Module is an 8-channel interface termination solution designed for DeltaV™ S-Series distributed control systems. It provides secure field wiring connections for analog input signals, ensuring stable signal transmission between field instruments and control system I/O modules.
Built for industrial reliability, this terminal block supports accurate signal routing from transmitters and sensors while maintaining strong electrical isolation and resistance to harsh plant environments. It is commonly used in compact I/O architectures where space efficiency, wiring clarity, and long-term stability are critical.
Technical Specifications Parameter Specification Manufacturer Emerson Model KJ4006X1-BL1 Module Type Terminal Block Module System Platform DeltaV S-Series Channels 8 Analog Input Channels Signal Type 4–20 mA / Voltage (system dependent) Function Field wiring termination & signal routing Field Power 30 VDC / 60 VDC (application dependent) Isolation Industrial signal isolation design Installation Type DIN rail / panel mounted Keying System Mechanical keying for module compatibility Operating Temperature -40°C to +70°C Humidity 5–95% RH non-condensing Environmental Rating Industrial control cabinet use
Physical Specifications Item Specification Dimensions (L × W × H) 85 × 100 × 25 mm Weight Approx. 0.35 kg
Recommended Related Models
Emerson KJ4006X1-BK1 Redundant Interface Terminal Block
Emerson KJ4006X1-BF1 32-Channel Terminal Block
Emerson VE4003S2B1 Analog Input Module
Emerson VE4005S2B3 Analog Output Module
Emerson VE4031S2T2B1 Discrete Input Module
Emerson VE5001 KJ1501X1-BA2 Power Supply Module
Popular Emerson Models
Emerson VE3008 Controller Module
Emerson VE4003S2B1 Analog Input Module
Emerson VE4005S2B3 Analog Output Module
Emerson VE4031S2T2B1 Discrete Input Module
Emerson VE6046P3 Communication Module
Emerson VE4070 Communication Module
Applications The KJ4006X1-BL1 is widely used in process industries where reliable analog signal termination and stable field wiring are required.
Typical applications include:
Oil and gas production systems
Petrochemical and refining plants
Power generation facilities
Water and wastewater treatment systems
Chemical processing industries
Pharmaceutical manufacturing
Food and beverage production
Industrial automation control cabinets
Advantages
Compact 8-channel analog termination design
Stable and secure field wiring connections
Supports reliable signal transmission to control systems
Reduces wiring complexity in control cabinets
Strong resistance to electrical noise and interference
Easy installation and replacement in modular systems
Compatible with DeltaV S-Series architecture
Industrial-grade durability for harsh environments
Supports long-term operational stability
Improves overall system maintainability
Technical FAQs 1. What is the main function of this module? It provides termination points for analog input signals between field devices and the control system.
2. How many channels does it support? It supports 8 analog input channels.
3. What system is it used in? It is designed for Emerson DeltaV S-Series systems.
4. What type of signals does it handle? It is typically used for 4–20 mA and other analog process signals.
5. Is it an active electronic module? No, it is a passive terminal block used for wiring and signal routing.
6. What is its installation method? It is installed on DIN rail or within control cabinets.
7. What is the operating temperature range? -40°C to +70°C.
8. Does it require configuration? No electrical configuration is required, but proper keying alignment is necessary.
9. Is it suitable for harsh environments? Yes, it is designed for industrial automation conditions.
10. Why is this module widely used? Because it provides reliable, compact, and stable signal termination for DeltaV analog input systems.
