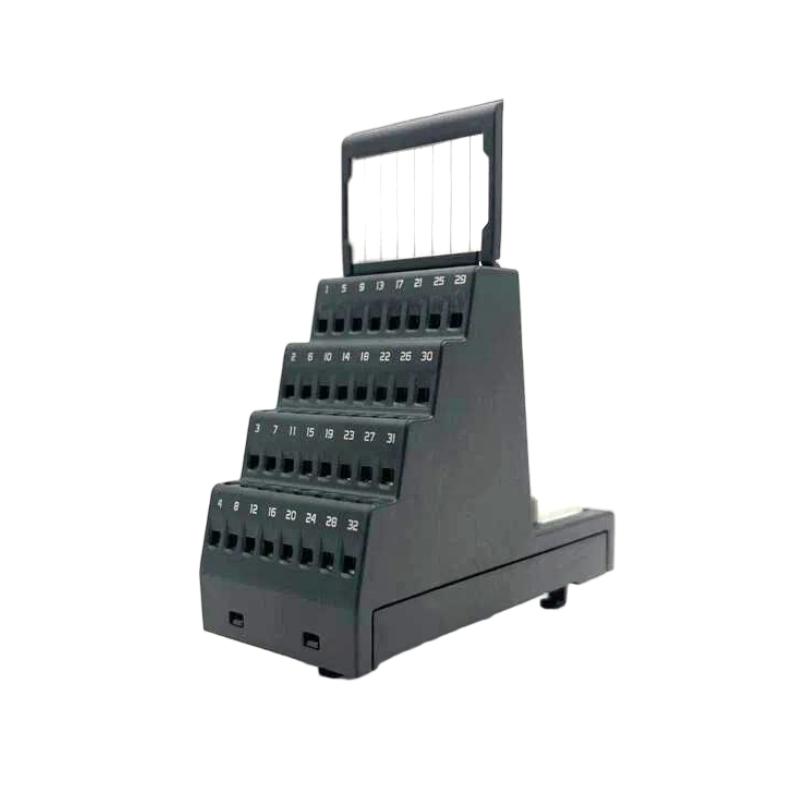

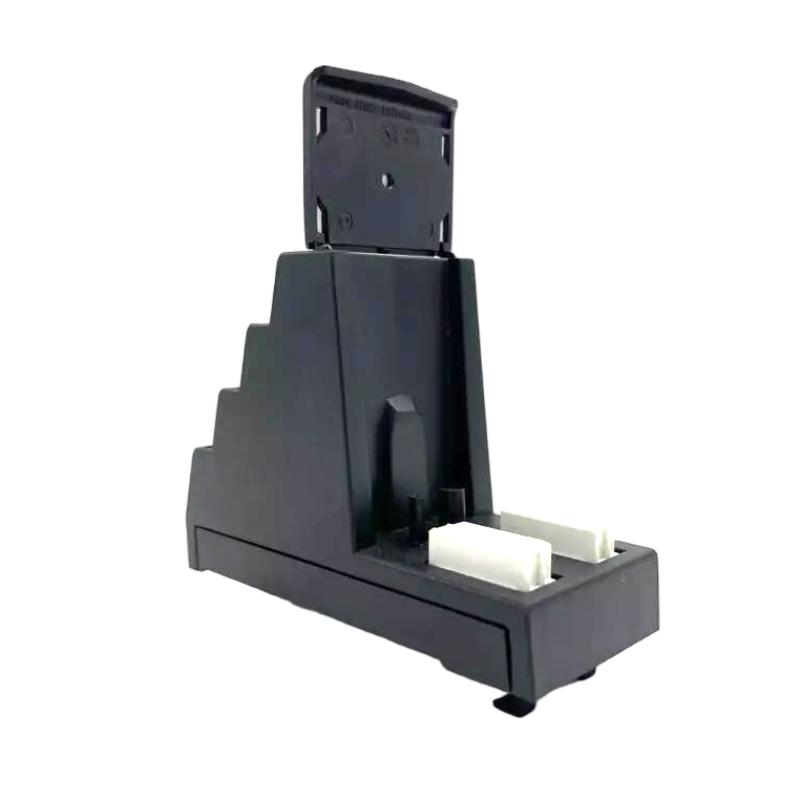

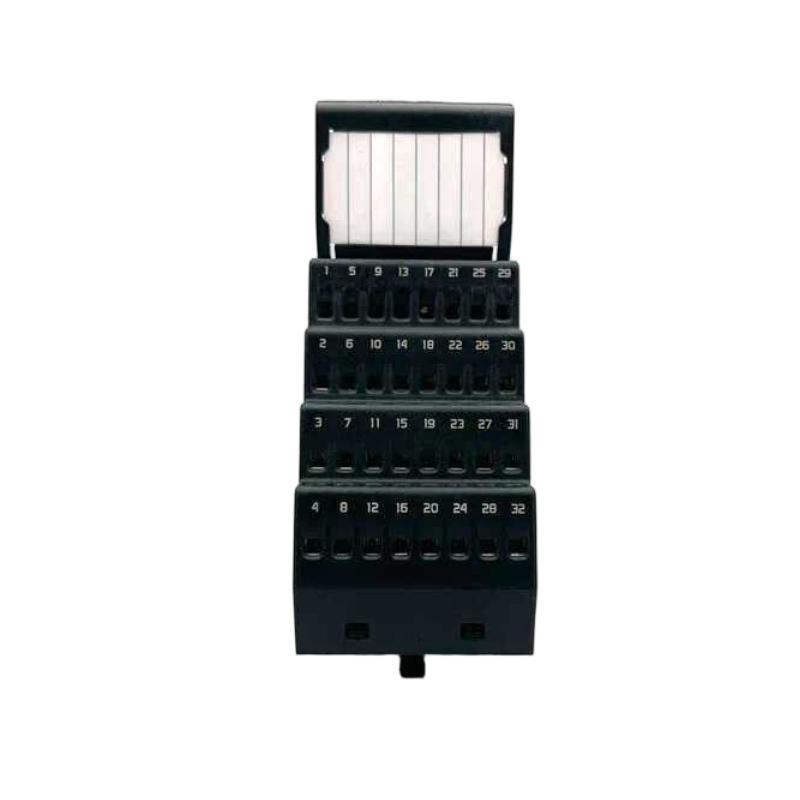

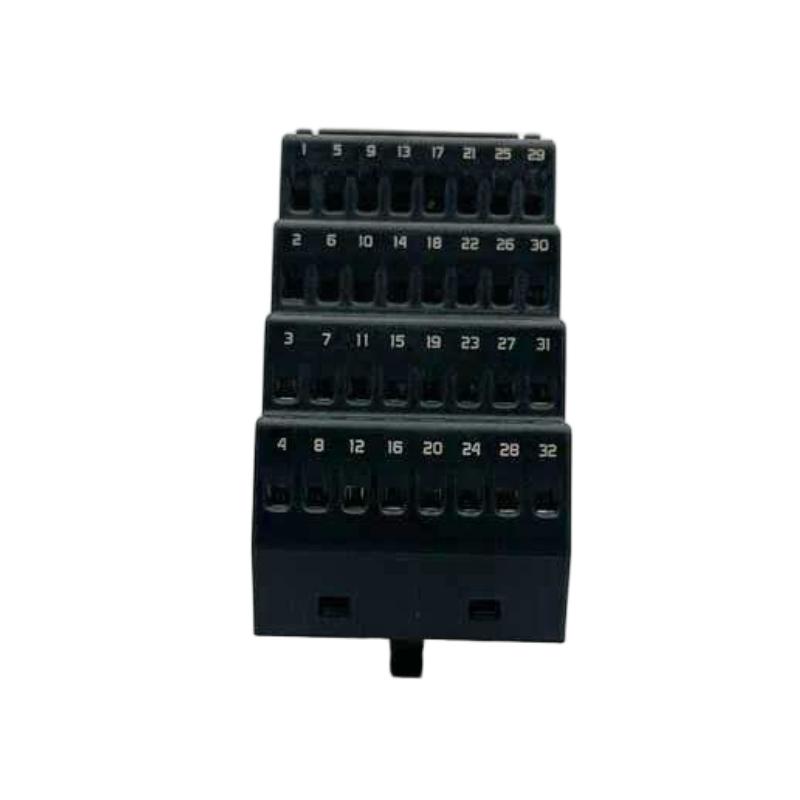

The Emerson KJ4006X1-BF1 Terminal Block Module is a 32-channel discrete interface termination unit designed for DeltaV™ S-Series distributed control systems. It provides a secure and structured connection point between field wiring and I/O modules, ensuring stable signal transmission and reliable system integration in industrial automation environments.
Engineered for mission-critical operations, this terminal block supports high-density wiring, strong electrical isolation, and robust mechanical stability. It is widely used in process industries where consistent signal integrity and simplified maintenance are essential for long-term plant reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ4006X1-BF1 |
| Module Type | Terminal Block Module |
| System Platform | DeltaV S-Series |
| Channels | 32 Discrete Channels |
| Function | Field wiring termination & signal distribution |
| Compatibility | DeltaV S-Series I/O modules |
| Field Power | 24–30 VDC (system dependent) |
| Keying System | Mechanical keying for safe module matching |
| Backplane Interface | System I/O carrier connection |
| Installation Type | Rack / panel mounted |
| Protection | Industrial isolation design |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Environmental Rating | Industrial control cabinet use |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 330 × 140 × 50 mm |
| Weight | Approx. 0.8 kg |
