Introduction

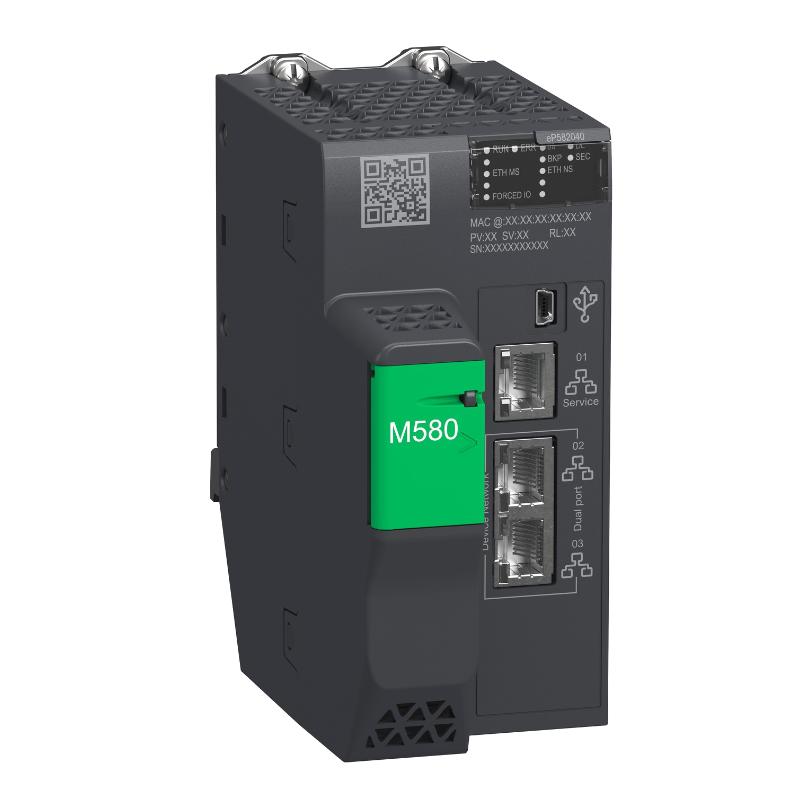

The Schneider BMEP582040 is a redundant processor module designed for the Modicon M580 platform, providing high-performance processing and system redundancy for industrial automation. It is built for applications where continuous operation and system stability are essential.

With hot standby CPU architecture, it ensures uninterrupted control even in the event of hardware failure. The module integrates seamlessly into Ethernet-based control systems and supports large-scale distributed I/O architectures, making it suitable for complex industrial environments.

Technical Specifications

Item	Value
Product Model	BMEP582040
Type	Redundant Processor Module
Platform	Modicon M580
Processor Architecture	Hot Standby Redundant CPU
Power Supply	24 V DC (rack backplane)
Current Consumption	295 mA
Memory	8 MB program RAM + expandable flash
Communication	Ethernet TCP/IP (service, device, redundancy)
Supported Racks	Up to 4 racks
Distributed Devices	Up to 64
Remote I/O Stations	Up to 8
Protection Class	IP20
Dimensions	134.6 × 64.6 × 130.3 mm
Weight	0.849 kg

Recommended Related Models

Model	Product Name
BMEP582040	Standard M580 Processor Module
BMEH582040	Redundant High-Availability CPU Module
BMEXBP0800	M580 Rack Backplane
BMXCRA31210	Remote I/O Communication Adapter

Popular Related Models

Model	Product Name
BMXCPS4002	Power Supply Module
BMXDDI3202	Digital Input Module
BMXDDO3202	Digital Output Module
BMXNOE0110	Ethernet Communication Module

Applications

• High-Availability Process Automation Systems
Used in continuous industrial processes where uninterrupted control is required, such as oil & gas, chemical, and power generation plants.

• Large-Scale Distributed Control Systems
Supports Modicon M580 architectures with multiple remote I/O racks and distributed field devices.

• Critical Infrastructure & Utilities
Applied in water treatment, energy distribution, and infrastructure automation requiring high system reliability.

• Industrial Digitalization Platforms
Enables Ethernet-based data exchange for real-time monitoring, diagnostics, and advanced control strategies.

Key Advantages

• Redundant Hot-Standby Architecture
Ensures continuous operation by switching instantly to a backup processor in case of failure.

• High Processing Capacity for Complex Systems
Supports large I/O configurations and demanding control tasks in industrial environments.

• Integrated Ethernet Communication
Provides multiple Ethernet ports for service, device network, and system-level communication.

• Industrial-Grade Reliability Design
Built for mission-critical applications with high uptime and strong fault tolerance.

Technical FAQs

Q1 What is the main function of the BMEP582040 module?
A: It is a redundant processor module used to control Modicon M580 automation systems with high availability.

Q2 What does redundant architecture mean in this module?
A: It means two processors operate in hot standby mode, allowing seamless failover if one fails.

Q3 Which PLC platform does it belong to?
A: It belongs to Schneider Electric Modicon M580 PAC systems.

Q4 How many racks does it support?
A: It supports up to 4 racks in a distributed architecture.

Q5 What communication interfaces are included?
A: It includes Ethernet TCP/IP service, device network ports, and redundancy synchronization ports.

Q6 Is it suitable for large industrial systems?
A: Yes, it is designed for medium to large-scale automation applications.

Q7 What industries commonly use this module?
A: It is widely used in manufacturing, energy, water treatment, and process industries.

Q8 Does it support distributed I/O systems?
A: Yes, it supports multiple remote I/O stations and distributed devices.

Q9 What is the benefit of redundancy in automation systems?
A: It increases system uptime by preventing shutdown during processor failure.

Q10 Can it be integrated into Ethernet-based systems?
A: Yes, it is fully integrated into Ethernet-based industrial control architectures.
