Brand:Schneider PLC Item No.:BMXDDO3202KC Product Origin:France Product Dimensions:100 × 32 × 86 mm Product Weight:0.11 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

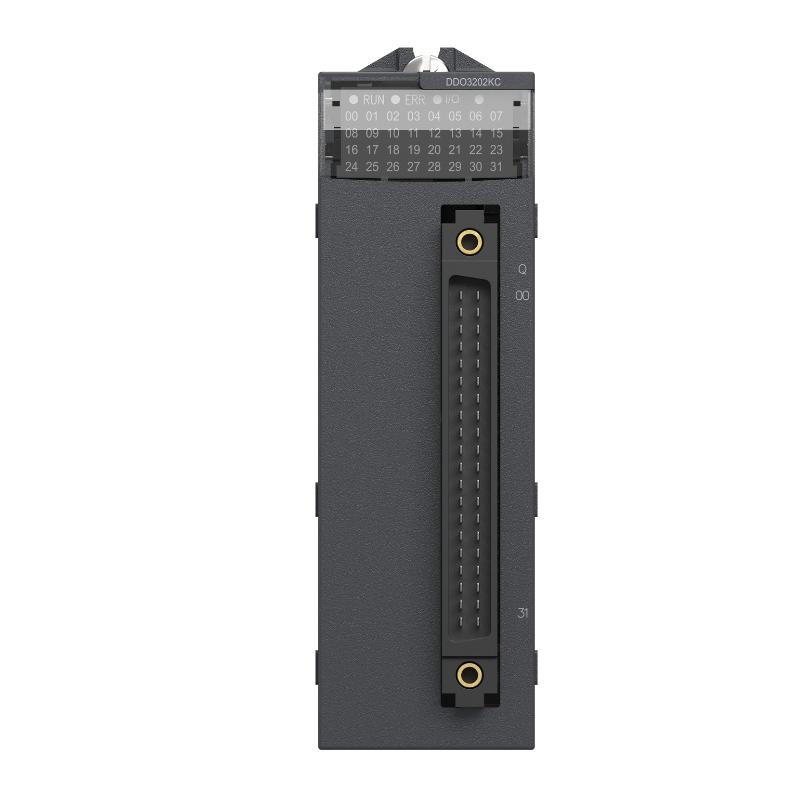

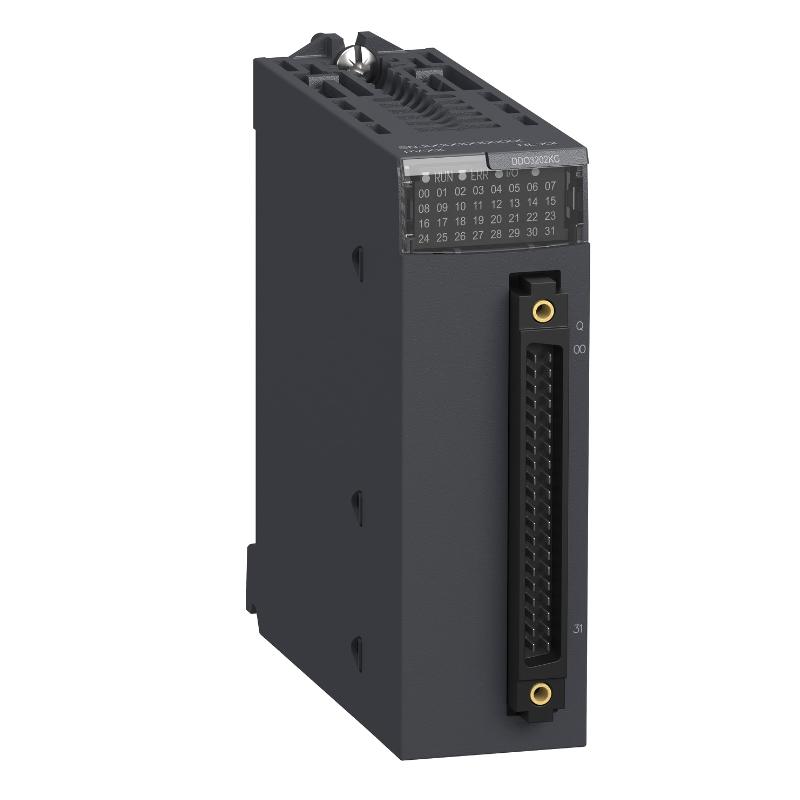

The Schneider BMXDDO3202KC is a 32-channel discrete output module designed for the Modicon X80 platform. It provides reliable solid-state switching for 24V DC field devices in industrial automation systems.
This module is widely used in manufacturing and process industries where high-density output control and long-term reliability are required. Its rugged design and protective features make it suitable for harsh industrial environments and continuous operation.
Technical Specifications
Item
Value
Product Model
BMXDDO3202KC
Type
Discrete Output Module
Platform
Modicon X80
Output Type
Solid-state transistor
Number of Outputs
32
Output Voltage
24 V DC (19–30 V)
Output Current
0.1 A per channel
Maximum Module Current
3.2 A
Response Time
1.2 ms
Protection
Overload, short-circuit, overvoltage
Installation
Rack-mounted
Dimensions
100 × 32 × 86 mm
Weight
0.11 kg
Recommended Related Models
Model
Product Name
BMXDDI3202KC
Discrete Input Module
BMXDDO6402KC
High Density Output Module
BMXCPS4002
Power Supply Module
BMXNOE0110
Ethernet Communication Module
Popular Related Models
Model
Product Name
BMXDDI1602
Digital Input Module
BMXDDO1602
Output Module (16-channel)
BMXCRA31210
Remote I/O Adapter Module
BMXP342020
Processor Module
Applications
• Industrial Automation Systems
Used for controlling actuators, relays, and field devices in Modicon M340 and M580 PLC architectures.
• Manufacturing Production Lines
Enables reliable switching of 24V DC digital outputs in assembly, packaging, and process equipment.
• Process Control Systems
Supports distributed output control in chemical, oil & gas, and utility environments.
• Harsh Industrial Environments
Designed for severe conditions where stable and protected output switching is required.
Key Advantages
• 32-Channel High-Density Output Design
Provides efficient control of multiple field devices in a compact module format.
• Solid-State Switching Technology
Ensures fast response and long operational life with minimal maintenance.
• Built for Severe Industrial Conditions
Conformal coating and robust protection improve reliability in harsh environments.
• Easy Integration with Modicon X80 Platform
Seamless compatibility with Schneider M340 and M580 systems.
Technical FAQs
Q1 What is the main function of the BMXDDO3202KC module?
A: It is a 32-channel solid-state discrete output module used to control industrial field devices.
Q2 What type of outputs does it provide?
A: It provides 24V DC positive solid-state transistor outputs.
Q3 Which PLC systems is it compatible with?
A: It is used in Schneider Modicon M340 and M580 automation systems.
Q4 How many output channels does it have?
A: It has 32 discrete output channels.
Q5 Is it suitable for harsh environments?
A: Yes, it is designed for severe industrial operating conditions.
Q6 What is the output current per channel?
A: Each channel typically supports up to 0.1 A output current.
Q7 Does it support overload protection?
A: Yes, it includes electronic protection such as overload and short-circuit protection.
Q8 What is the switching type?
A: It uses solid-state transistor switching.
Q9 Can it be used in distributed I/O systems?
A: Yes, it integrates into Modicon distributed architectures.
Q10 What is its main advantage over relay outputs?
A: It offers faster switching speed and longer service life with no mechanical wear.
