Brand:Schneider PLC Item No.:LXM32AD72N4 Product Origin:France Product Dimensions:270 × 108 × 237 mm Product Weight:4.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

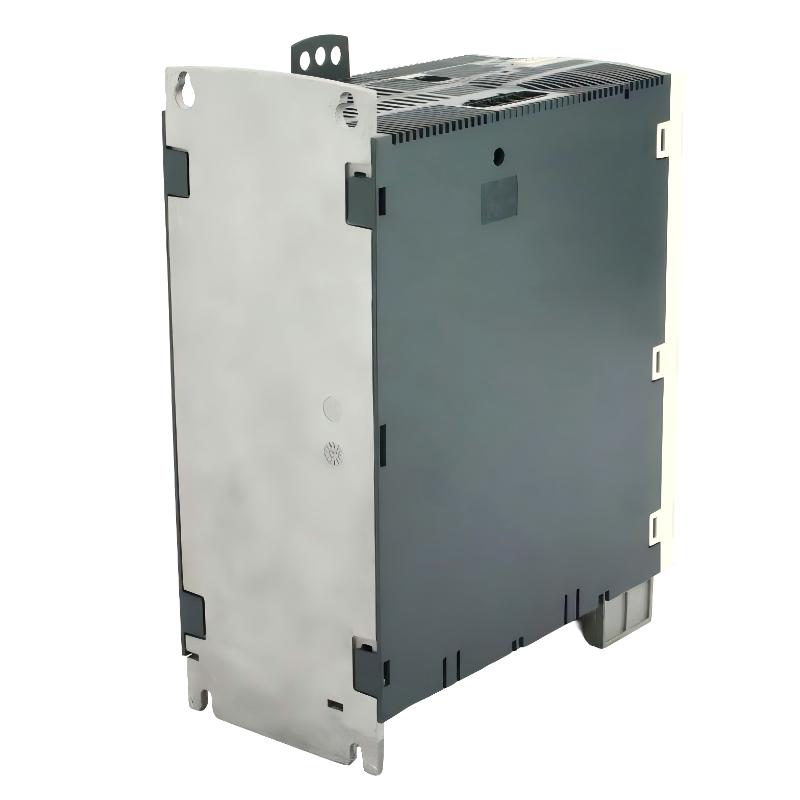

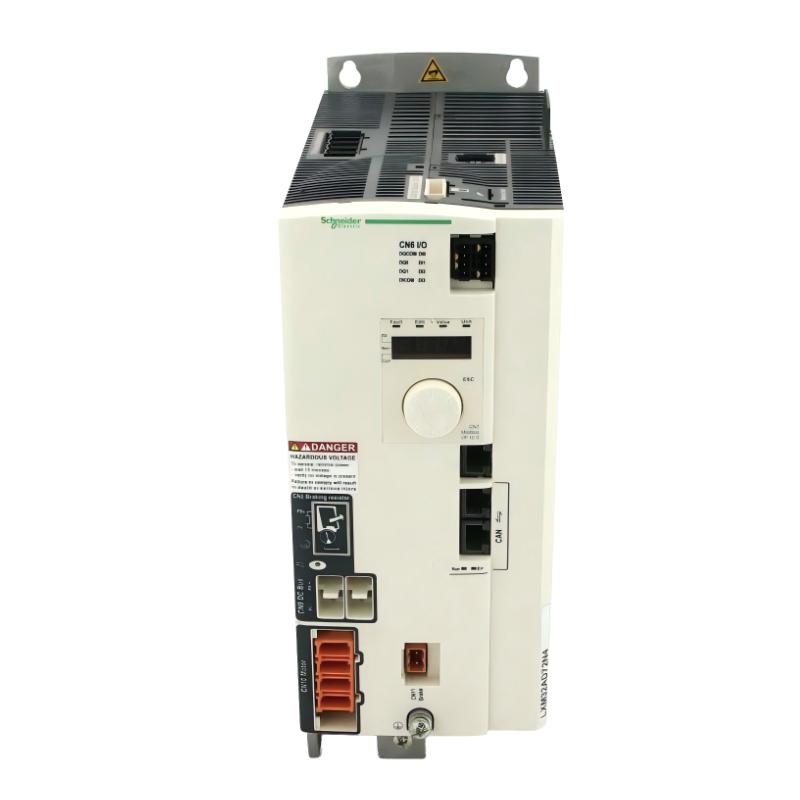

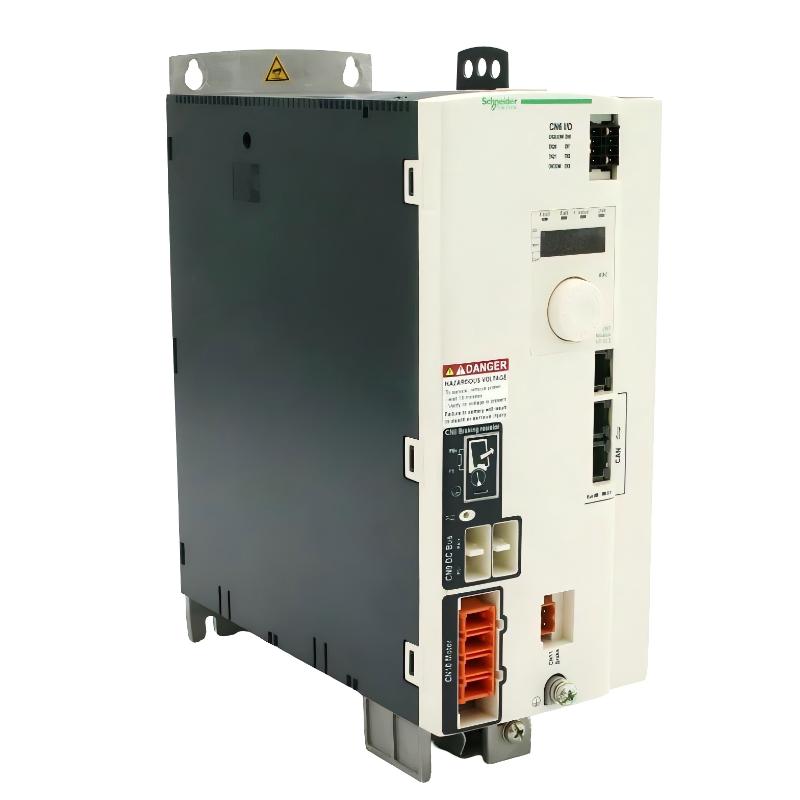

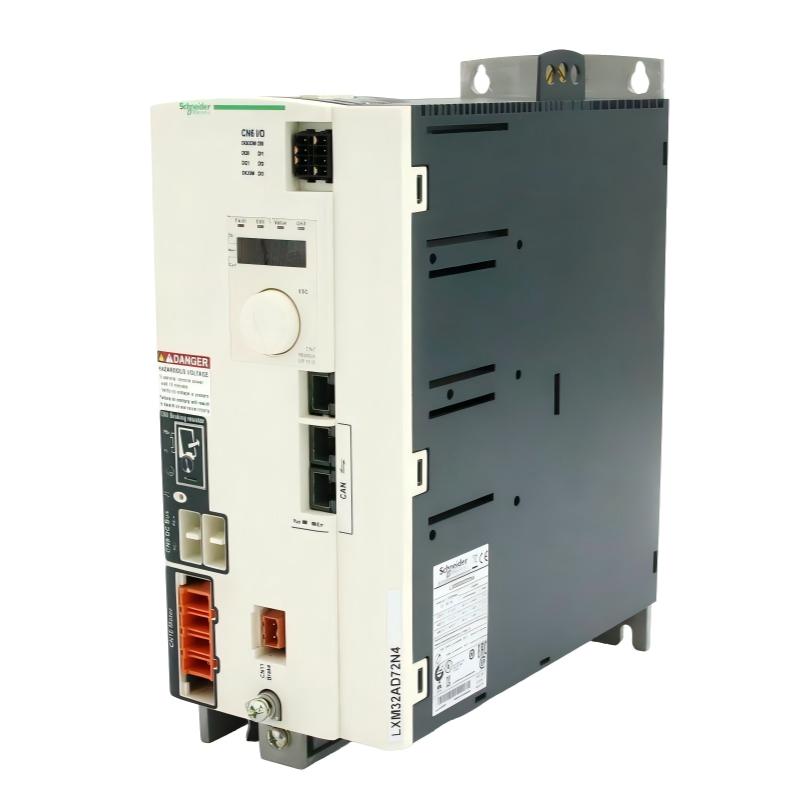

The Schneider LXM32AD72N4 is a Lexium 32 series motion servo drive designed for precise control of AC servo motors in industrial automation systems. It delivers high dynamic performance for applications requiring accurate positioning and fast response.
With integrated communication interfaces and compact design, it is widely used in packaging, machine tools, and automated production systems. The drive is engineered to ensure stable operation, safety compliance, and seamless integration into modern motion control architectures.
Technical Specifications
Item
Value
Product Model
LXM32AD72N4
Type
Motion Servo Drive
Series
Lexium 32
Supply Voltage
208–480 VAC, 3-phase
Output Current
72 A peak
Rated Power
Up to ~7 kW (400 V)
Motor Compatibility
BMH / BSH servo motors
Communication
CANopen, CANmotion, Modbus
Safety Function
STO (Safe Torque Off)
Cooling
Forced air cooling
Protection Class
IP20
Dimensions
270 × 108 × 237 mm
Weight
4.8 kg
Recommended Related Models
Model
Product Name
LXM32AD30N4
Servo Drive 3 kW
LXM32AD72N4S
Enhanced Servo Drive Variant
LXM32MD18N4
Mid-Power Servo Drive
LXM32CD12N4
Compact Servo Drive Model
Popular Related Models
Model
Product Name
LXM32AD90N4
High Power Servo Drive
LXM32AD18N4
Compact Motion Drive
LXM32MD72N4
Advanced Servo Drive Variant
LXM32CD30N4
Standard Industrial Servo Drive
Applications
• High-Precision Motion Control Systems
Used in single-axis servo applications requiring accurate positioning, speed, and torque control in industrial automation.
• Packaging & Assembly Machinery
Commonly applied in high-speed packaging lines, labeling machines, and robotic assembly systems.
• CNC and Machine Tool Systems
Provides precise motion regulation for axes control in machining and manufacturing equipment.
• General Industrial Automation
Used in conveyor systems, handling equipment, and automated production lines requiring dynamic servo performance.
Key Advantages
• High Dynamic Servo Performance
Delivers fast response and precise torque control for demanding motion applications.
• Integrated Communication Interfaces
Supports CANopen, CANmotion, and Modbus for flexible system integration.
• Compact Book-Style Design
Optimized for cabinet space saving while maintaining high power density.
• Built-In Safety Functions (STO)
Includes Safe Torque Off for enhanced machine safety compliance.
Technical FAQs
Q1 What is the main function of the LXM32AD72N4?
A: It is a servo drive used to control AC servo motors with precise motion, speed, and torque regulation.
Q2 What motor types is it compatible with?
A: It is designed for Schneider Lexium servo motors such as BMH and BSH series.
Q3 What is the rated power range?
A: It supports servo applications up to approximately 7 kW depending on supply voltage.
Q4 What communication protocols are supported?
A: It supports CANopen, CANmotion, and Modbus communication interfaces.
Q5 What is the supply voltage range?
A: It operates on three-phase 208–480 VAC supply systems.
Q6 Does it support safety functions?
A: Yes, it includes Safe Torque Off (STO) functionality.
Q7 Is it suitable for multi-axis systems?
A: It is primarily a single-axis drive but can be integrated into multi-axis architectures.
Q8 What industries commonly use this drive?
A: It is used in packaging, CNC machinery, robotics, and general industrial automation.
Q9 What is the cooling method?
A: It uses forced air cooling with an integrated fan system.
Q10 What is the main advantage of Lexium 32 series drives?
A: They provide compact, high-performance motion control with flexible industrial communication options.
