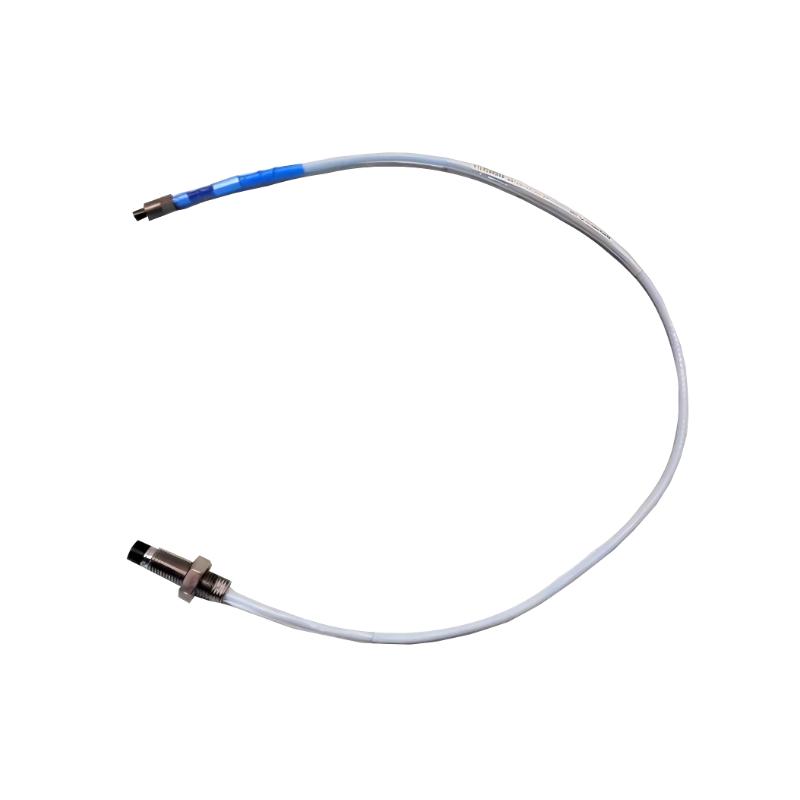

The Bently Nevada 330101-01-39-10-01-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for high-precision vibration and shaft position monitoring in rotating machinery. It is widely used in condition monitoring and protection systems for turbines, compressors, pumps, and other critical industrial assets.
As a key component of the Bently Nevada 3300 XL platform, this probe delivers stable signal accuracy, excellent environmental resistance, and long-term reliability in harsh industrial environments. It works together with an extension cable and proximitor sensor to form a complete measurement chain for machinery health monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-01-39-10-01-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Module Type | Proximity Probe |
| Measurement Type | Eddy current displacement sensing |
| System Components | Probe + extension cable + proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | 3.9 in (configuration “39”) |
| Total Cable Length | 1.0 m (configuration “10”) |
| Connector Type | Miniature ClickLoc coaxial connector |
| Certification | CSA / ATEX / IECEx (depending configuration) |
| Operating Temperature | -40°C to +85°C |
| Output Type | Proportional displacement signal |
| Protection Rating | Industrial-grade sealed probe design |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | ~1040 × 15 × 12 mm |
| Weight | Approx. 0.1–0.3 kg (variant dependent) |
