Brand:Schneider PLC Item No.:ATV320U15M2C Product Origin:France Product Dimensions:158 x 105 x 142 mm Product Weight:1.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

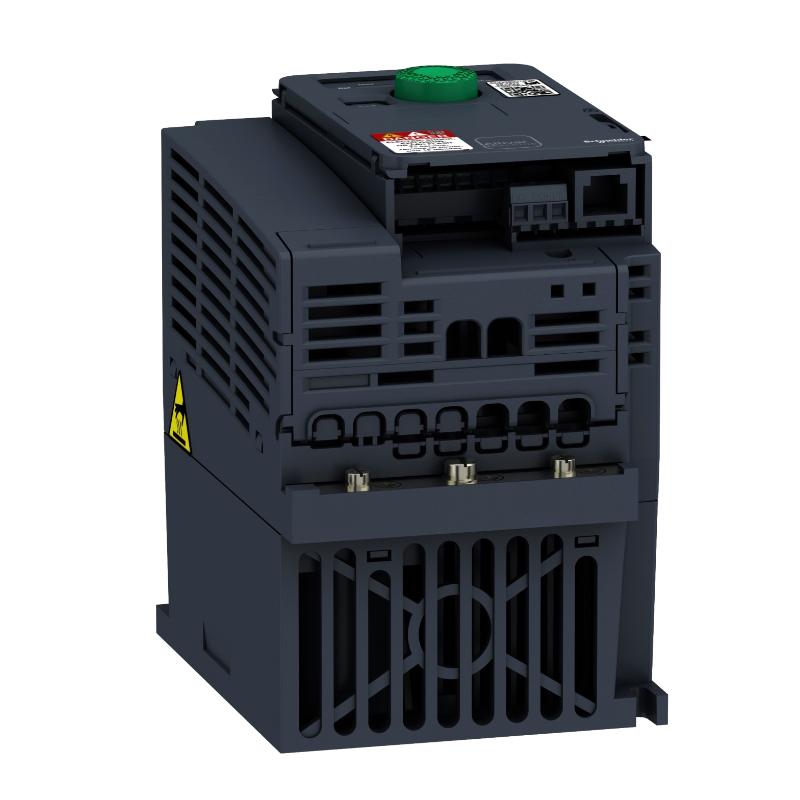

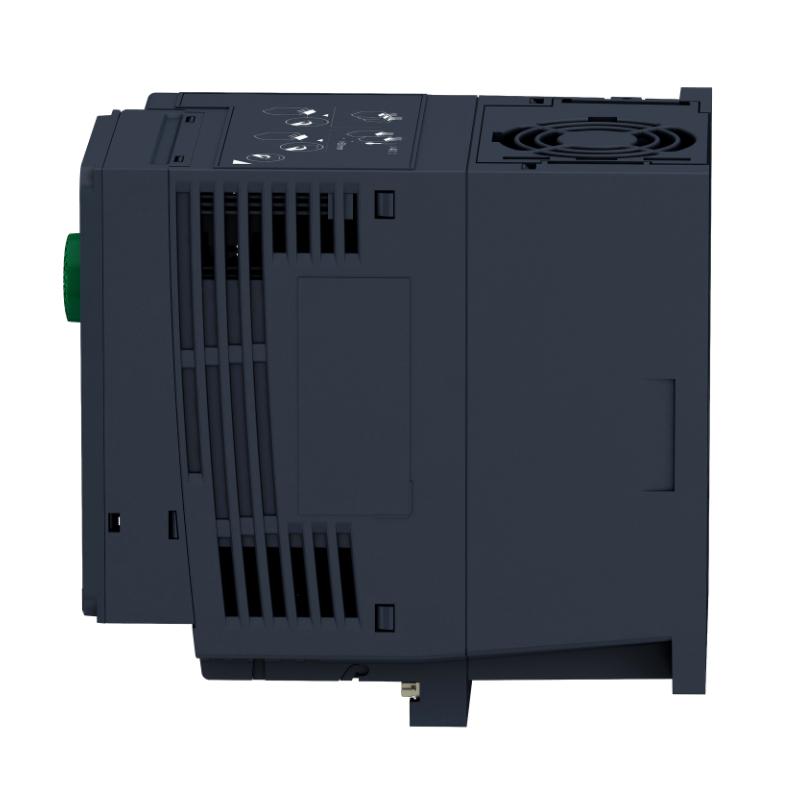

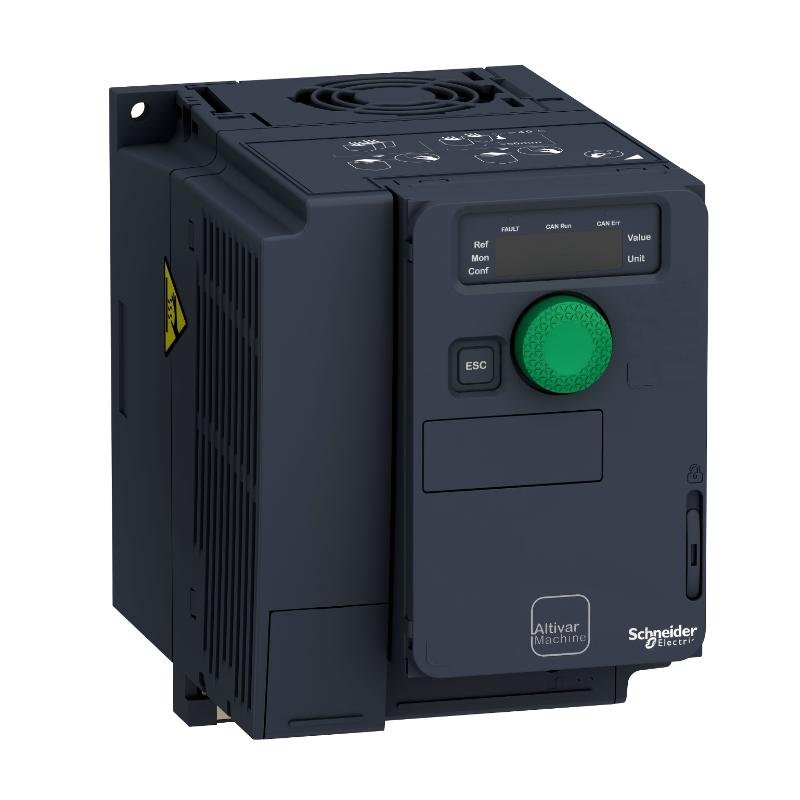

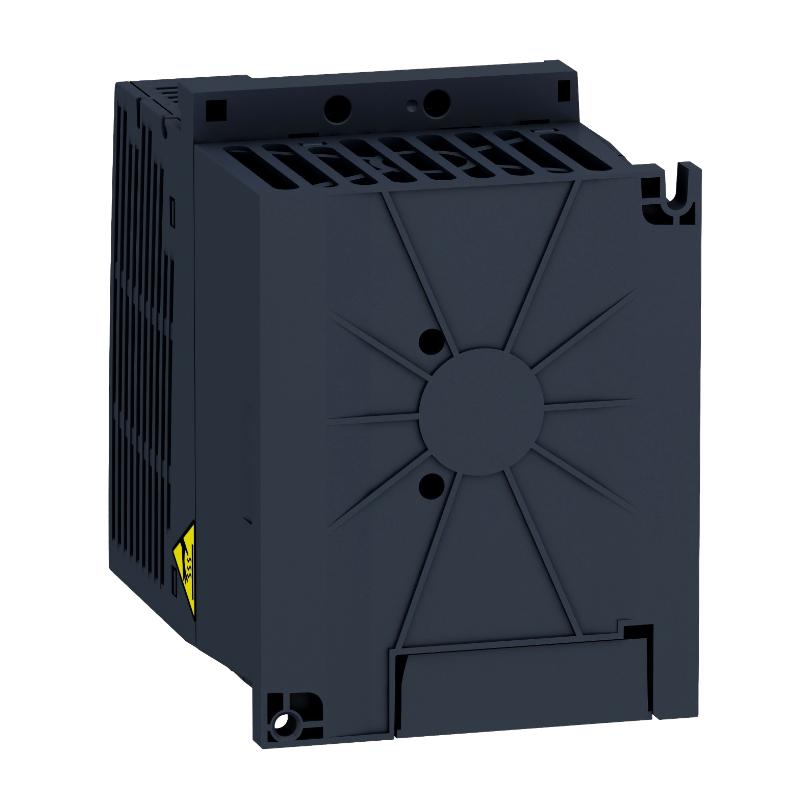

The Schneider ATV320U15M2C is a compact variable speed drive from the Altivar Machine ATV320 series, designed for efficient and precise motor control in industrial automation systems. It is widely used in applications where stable speed regulation, energy efficiency, and compact installation are essential.
Technical Specifications
Item
Value
Product Model
ATV320U15M2C
Type
Variable Speed Drive (VFD)
Series
Altivar Machine ATV320
Supply Voltage
200–240 V AC (1-phase)
Motor Power
1.5 kW
Output Current
8 A
Control Method
Sensorless Vector / V/F Control
Communication
Modbus + optional fieldbus modules
Safety Function
Safe Torque Off (STO)
EMC Filter
Class C2 integrated
Protection Class
IP20
Cooling
Forced air cooling
Dimensions
158 × 105 × 142 mm
Weight
1.6 kg
Recommended Related Models
Model
Product Name
ATV320U11M2C
Variable Speed Drive 1.1 kW
ATV320U22M2C
Variable Speed Drive 2.2 kW
ATV320U07M2C
Variable Speed Drive 0.75 kW
ATV320D11M2C
Compact VFD 1.1 kW
Popular Related Models
Model
Product Name
ATV320U04M2C
Small Motor Drive
ATV320U06M2C
Light Duty VFD
ATV320U40M2C
Medium Power Drive
ATV320U75M2C
Heavy Duty Drive
Applications
• Industrial Motor Speed Control Systems
Used for precise speed and torque regulation of asynchronous and synchronous motors in automated machinery.
• Pumps, Fans, and HVAC Systems
Enables energy-efficient operation by adjusting motor speed according to load demand.
• OEM Machine Building
Commonly integrated into compact machines such as conveyors, packaging systems, and light industrial equipment.
• General Industrial Automation
Provides stable motor control in manufacturing and process control environments requiring reliable performance.
Key Advantages
• Advanced Motor Control Performance
Delivers stable torque and smooth speed regulation across a wide operating range.
• Flexible Control Modes
Supports both sensorless vector control and V/F control for different application requirements.
• Integrated Safety Functionality
Includes Safe Torque Off (STO) to enhance machine safety and compliance.
• Strong System Integration Capability
Easily integrates with industrial automation networks and PLC-based control architectures.
Technical FAQs
Q1 What is the main function of the ATV320U15M2C?
A: It is a variable speed drive used to control motor speed, torque, and direction in industrial applications.
Q2 What is the rated motor power?
A: It supports 1.5 kW motors (approximately 2 HP depending on load type).
Q3 What supply voltage does it require?
A: It operates on a single-phase 200–240 V AC supply.
Q4 What type of motors can it control?
A: It supports both asynchronous and synchronous AC motors.
Q5 Does it support energy saving operation?
A: Yes, it adjusts motor speed to match load demand, improving efficiency.
Q6 What is the output current?
A: The nominal output current is around 8 A.
Q7 Is it suitable for harsh environments?
A: Yes, it is designed with industrial-grade protection and conformal-coated boards.
Q8 What control methods are available?
A: Sensorless vector control and V/F control modes are supported.
Q9 Does it support communication protocols?
A: Yes, it supports Modbus and optional fieldbus communication modules.
Q10 What is the main benefit in OEM machines?
A: Its compact size and flexible control make it ideal for space-constrained machine designs.
