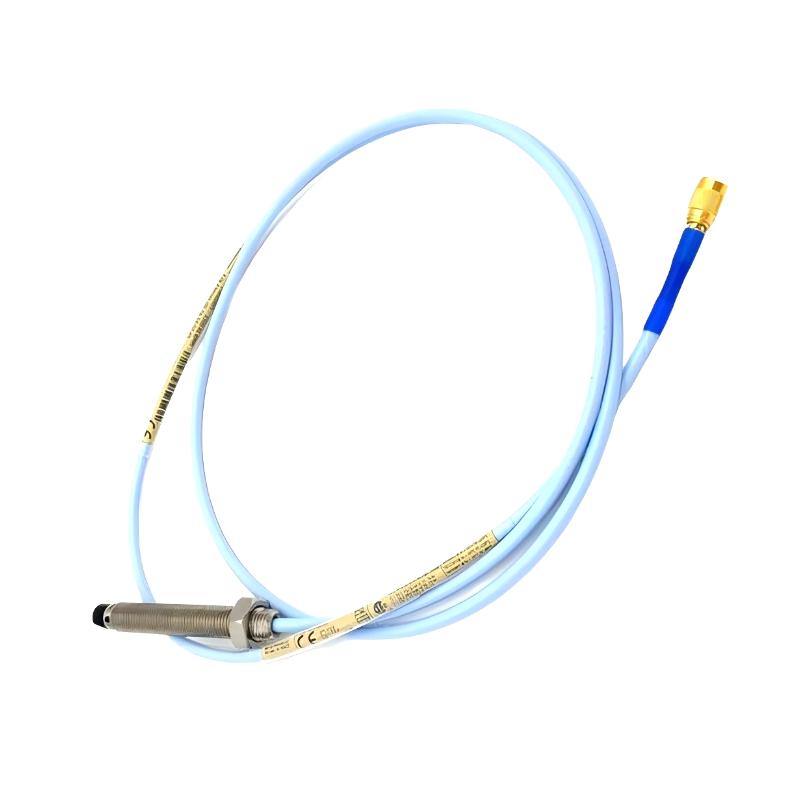

The Bently Nevada 330101-02-12-10-02-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for high-precision vibration and shaft position monitoring in rotating machinery. It is widely used in industrial condition monitoring systems for turbines, compressors, pumps, and other critical rotating equipment.
This probe operates using eddy current sensing technology and works as part of a complete system with an extension cable and Proximitor sensor. The configuration code defines key mechanical and electrical options such as case length, cable length, connector type, and certification level, ensuring compatibility with specific installation requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-02-12-10-02-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Components | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length Option | 1.2 in (code 12) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | CSA / ATEX / IECEx (code 05) |
| Operating Temperature | -40°C to +85°C |
| Application | Shaft vibration and position monitoring |
This model belongs to the same configuration family as other 330101 variants, differing mainly in mechanical length and certification options.
Physical Specifications
| Item | Specification |
|---|---|
| Approx. Dimensions | ~1.0 m cable assembly (varies by configuration) |
| Weight | Approx. 0.2–0.4 kg (variant dependent) |
