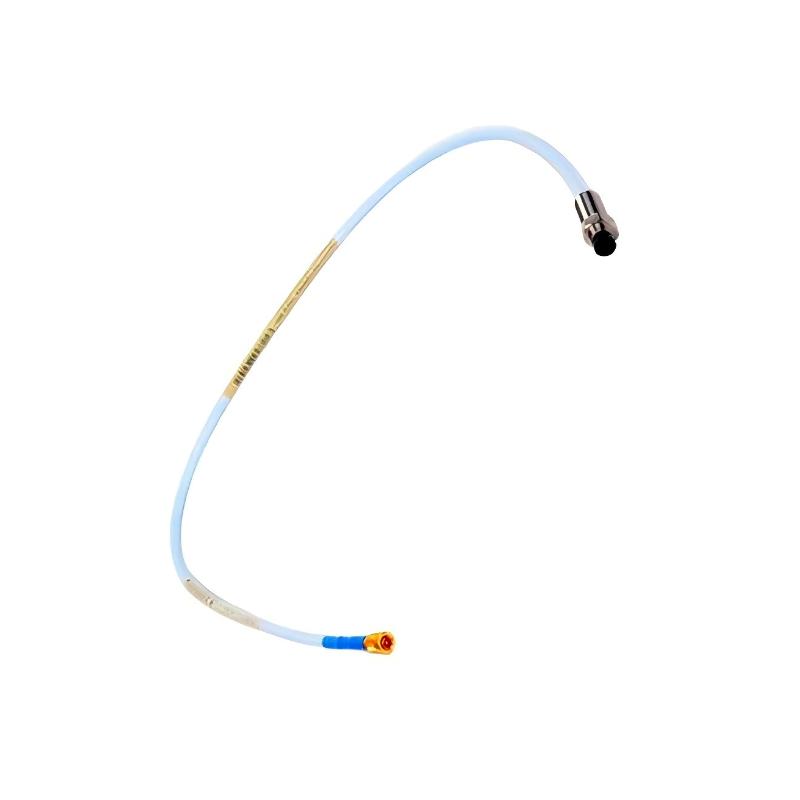

The Bently Nevada 330101-02-24-10-02-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for precise shaft vibration and position measurement in rotating machinery. It is widely used in condition monitoring systems for turbines, compressors, pumps, and other critical industrial equipment.
This probe uses eddy current sensing technology and operates as part of a complete system including a probe, extension cable, and Proximitor sensor. The “02-24-10-02-05” configuration defines key mechanical and certification options, including connector type, case length, cable length, and hazardous-area approvals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-02-24-10-02-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Components | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length Option | 2.4 in (code 24) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | CSA / ATEX / IECEx (code 05) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Length | Approx. 1.0 m cable assembly |
| Weight | ~0.2–0.4 kg (configuration dependent) |
