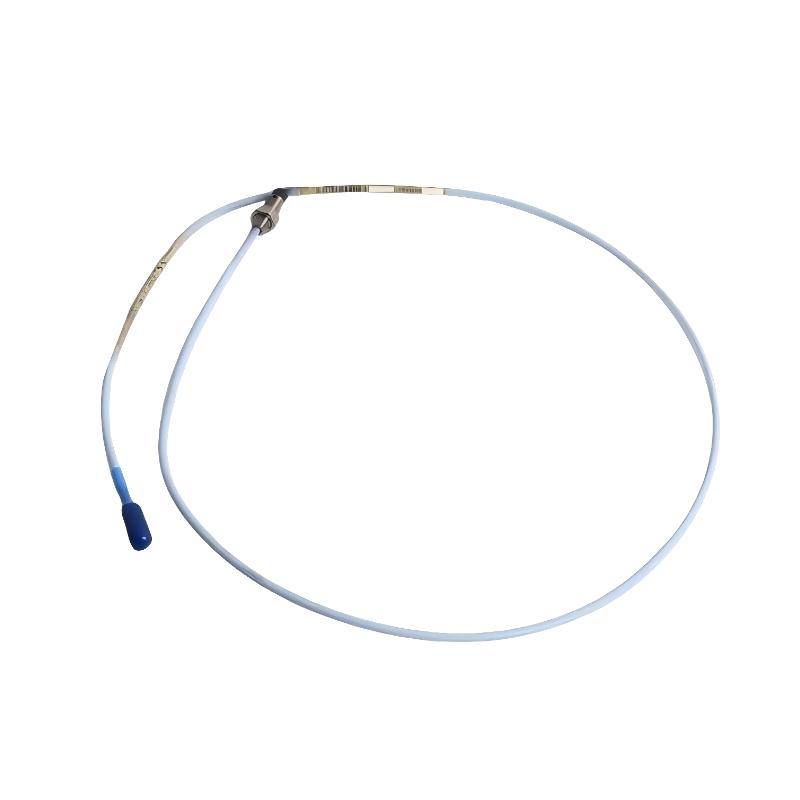

Bently Nevada 330101-02-50-05-01-05 Proximity Probe

Bently Nevada 330101-02-50-05-01-05 Proximity Probe

0.0
Points

Brand:Bently Nevada PLC
Item No.:Bently Nevada 330101-02-50-05-01-05
Product Origin:USA
Product Dimensions:0.5 m
Product Weight:0.4 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO

Add to cart

330101-17330101-18330101-16330101-19

The Bently Nevada 330101-02-50-05-01-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for precise vibration and shaft position measurement in rotating machinery. It is widely used in condition monitoring and protection systems for turbines, compressors, pumps, and other critical industrial assets.

This model follows the standard 330101 configuration structure, where each suffix defines mechanical and certification options such as case length, cable length, connector type, and hazardous-area approvals. It provides stable, non-contact measurement using eddy current technology and is engineered for continuous operation in harsh industrial environments.


Technical Specifications

ParameterSpecification
ManufacturerBently Nevada
Model330101-02-50-05-01-05
Series3300 XL 8 mm Proximity Transducer System
TypeProximity Probe
Measurement PrincipleEddy current displacement sensing
System ComponentsProbe + extension cable + Proximitor sensor
Probe Diameter8 mm
Thread Type3/8-24 UNF
Case Length Option5.0 in (code 50)
Total Cable Length0.5 m (code 05) (variant dependent)
Connector TypeMiniature ClickLoc coaxial connector (code 02 / 01 variants)
Agency ApprovalCSA / ATEX / IECEx (code 05)
Operating Temperature-40°C to +85°C
ApplicationShaft vibration and position monitoring

Physical Specifications

ItemSpecification
Approx. Cable Length~0.5 m (configuration dependent)
Weight~0.2–0.4 kg
Housing MaterialStainless steel probe body
Cable TypeShielded coaxial industrial cable

Recommended Related Models

  • Bently Nevada 330101-02-24-10-02-05 Proximity Probe
  • Bently Nevada 330101-02-12-10-02-05 Proximity Probe
  • Bently Nevada 330130-040-00-00 Extension Cable
  • Bently Nevada 330180-91-00 Proximitor Sensor
  • Bently Nevada 3500/42M Vibration Monitor Module
  • Bently Nevada 3500/25 Keyphasor Module

Popular Bently Nevada Models

  • Bently Nevada 3500/15 Power Supply Module
  • Bently Nevada 3500/22M Transient Data Interface
  • Bently Nevada 3500/40M Proximitor Monitor
  • Bently Nevada 330180 Proximitor Sensor Series
  • Bently Nevada 330130 Extension Cable Series
  • Bently Nevada 3500 System Rack


Applications

The 330101-02-50-05-01-05 probe is used in rotating machinery protection and predictive maintenance systems where accurate shaft monitoring is required.

Typical applications include:

  • Steam turbines
  • Gas turbines
  • Centrifugal compressors
  • Industrial pumps and motors
  • Gearboxes and drivetrains
  • Oil & gas production equipment
  • Petrochemical plants
  • Power generation systems


Advantages

  • High-precision non-contact vibration measurement
  • Stable operation in harsh industrial environments
  • Compatible with 3300 XL monitoring architecture
  • Strong resistance to oil, dust, and contamination
  • Reliable continuous 24/7 performance
  • Supports predictive maintenance programs
  • Multiple configuration flexibility options
  • Proven eddy current sensing technology
  • Long service life in critical machinery
  • Easy integration into monitoring systems


Technical FAQs

1. What is the main function of this probe?

It measures shaft vibration and displacement using eddy current technology.

2. What system is it part of?

It belongs to the Bently Nevada 3300 XL 8 mm proximity transducer system.

3. What does the “50” code represent?

It typically indicates a 5.0-inch case length configuration.

4. What does the “05” code represent?

It indicates CSA/ATEX/IECEx hazardous-area approval.

5. What is the probe diameter?

The probe diameter is 8 mm.

6. What components are required?

A probe, extension cable, and Proximitor sensor are required.

7. What is the operating temperature range?

-40°C to +85°C.

8. What industries use this probe?

Oil & gas, power generation, petrochemical, and heavy industry.

9. Is it suitable for harsh environments?

Yes, it is designed for high vibration and industrial conditions.

10. Why is it widely used?

Because it provides reliable and accurate shaft vibration monitoring for critical rotating machinery protection systems.
