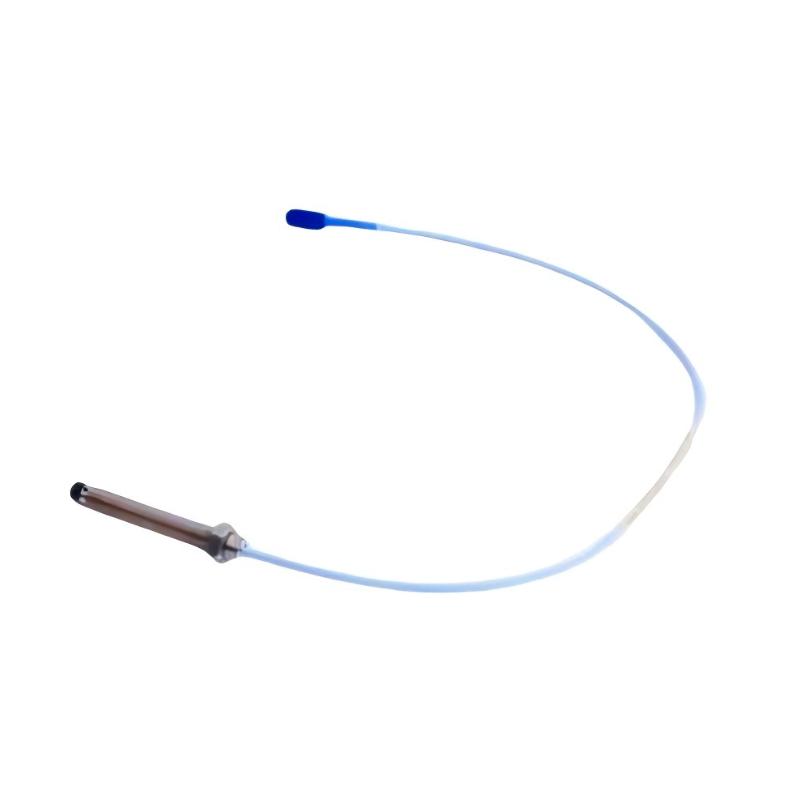

The Bently Nevada 330101-04-16-10-02-00 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for high-precision measurement of shaft vibration and position in rotating machinery such as turbines, compressors, pumps, and motors.
This probe uses eddy current sensing technology and works together with an extension cable and Proximitor sensor to form a complete monitoring system. The configuration code defines mechanical and system options such as case length, cable length, connector type, and certification level. It is widely used in industrial condition monitoring and machinery protection applications where reliability and accuracy are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-04-16-10-02-00 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length Option | 1.6 in (code 16) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | Standard industrial (code 00) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Length | Configuration-dependent (~1.0 m system cable) |
| Weight | Approx. 0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial cable |
