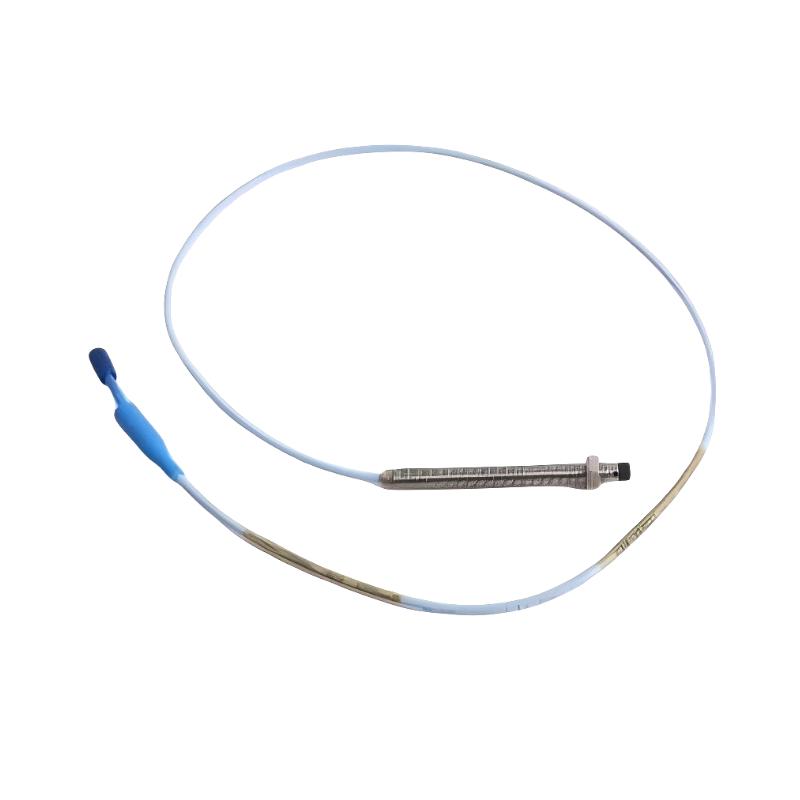

The Bently Nevada 330101-05-20-10-02-00 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for accurate shaft vibration and position monitoring in rotating machinery such as turbines, compressors, and industrial pumps.
This probe uses eddy current technology and operates as part of a complete measurement chain with a Proximitor sensor and extension cable. The model code defines key configuration parameters including unthreaded length, case length, total cable length, connector type, and approval class. It is widely used in machinery protection and condition monitoring systems where long cable routing and stable signal integrity are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-05-20-10-02-00 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.5 in (code 05) |
| Case Length Option | 2.0 in (code 20) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | 00 (standard industrial) |
| Operating Temperature | -40°C to +85°C (typical 3300 XL range) |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Total Length | ~1.0 m cable assembly |
| Weight | Approx. 0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial industrial cable |
