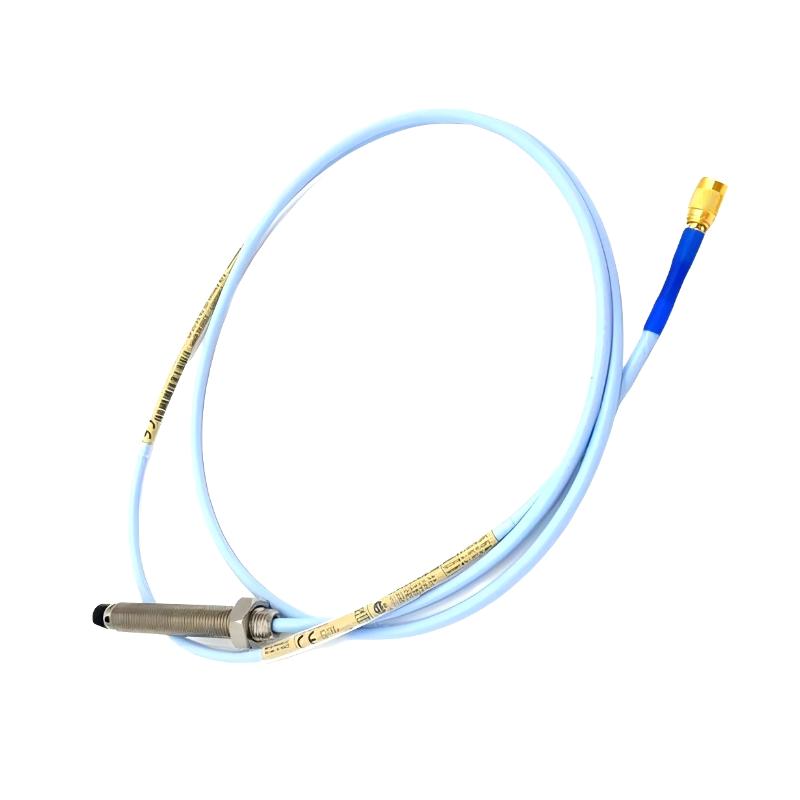

The Bently Nevada 330101-05-30-05-02-00 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for precise shaft vibration and position measurement in rotating machinery such as turbines, compressors, and pumps.
It operates on eddy current sensing technology, working together with an extension cable and Proximitor sensor to form a complete non-contact measurement system. This model is commonly used in industrial condition monitoring applications where stable signal performance, harsh-environment durability, and flexible installation length are required.
The configuration code defines mechanical structure and system options such as unthreaded length, case length, total cable length, connector type, and approval class, allowing adaptation to different installation requirements in heavy industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-05-30-05-02-00 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.5 in (code 05) |
| Case Length Option | 3.0 in (code 30) |
| Total Cable Length | 0.5 m (code 05) (configuration-dependent) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | Standard industrial (code 00) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | Approx. 0.5 m |
| Weight | Approx. 0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial industrial cable |
