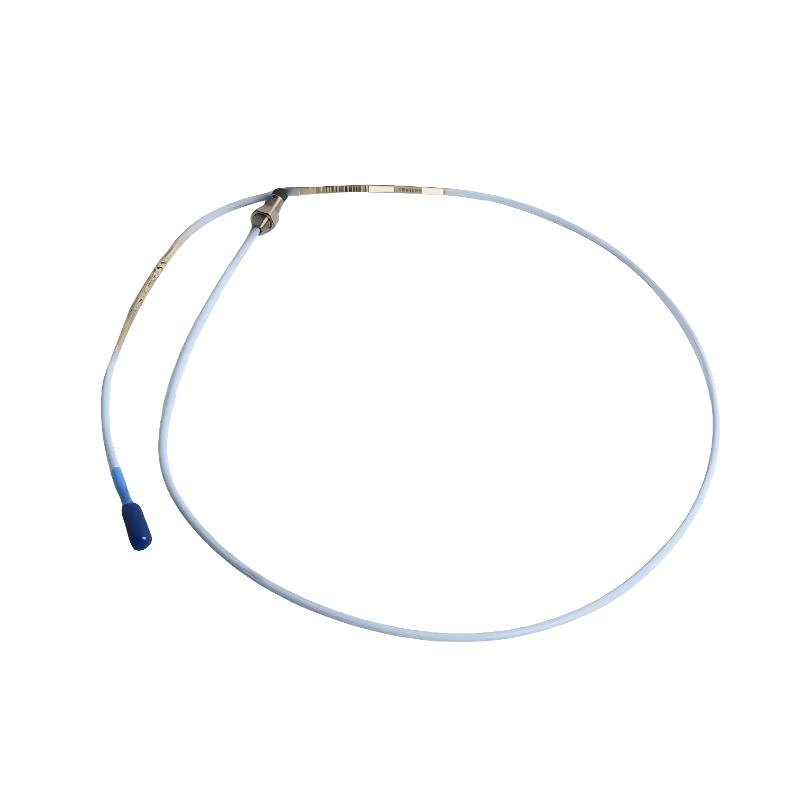

The Bently Nevada 330101-08-12-10-02-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for precise shaft vibration and position monitoring in rotating machinery such as turbines, compressors, and pumps.
It uses eddy current sensing technology and operates as a non-contact measurement device within a complete system that includes a probe, extension cable, and Proximitor sensor. This model is commonly used in industrial protection and condition monitoring systems where long-term stability, accurate displacement measurement, and harsh-environment durability are required. It belongs to a configuration family where each suffix defines mechanical and system options such as probe length, cable length, connector type, and approval status.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-08-12-10-02-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.8 in (code 08) |
| Case Length Option | 1.2 in (code 12) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | CSA / ATEX / IECEx (code 05) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | Approx. 1.0 m |
| Weight | ~0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial cable |
