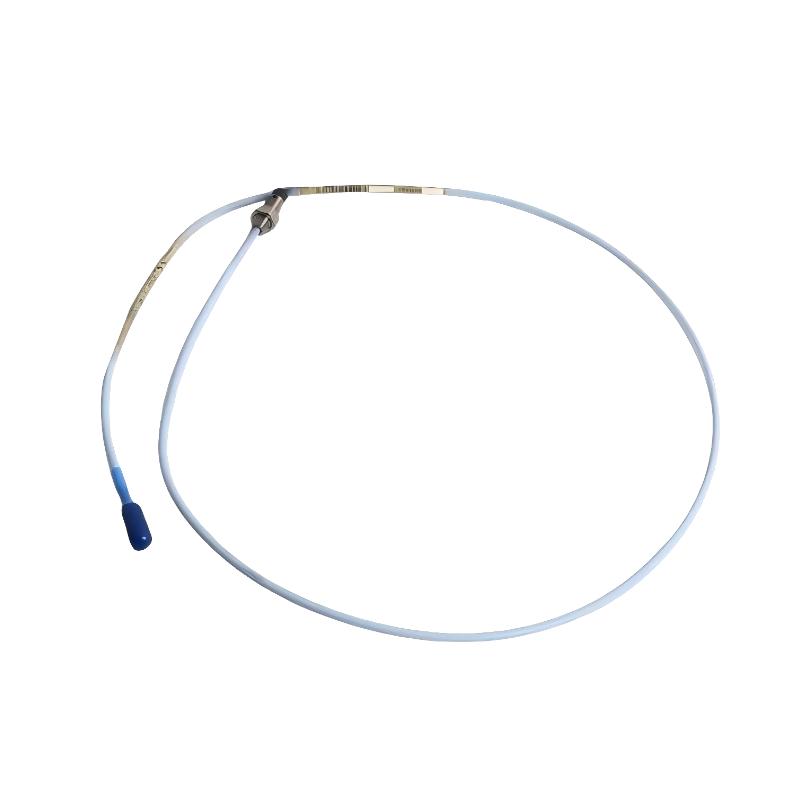

The Bently Nevada 330101-10-24-10-02-00 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for precise shaft vibration and position monitoring in rotating machinery such as turbines, compressors, pumps, and motors.
It operates using eddy current measurement technology, working together with an extension cable and Proximitor sensor to form a complete non-contact monitoring system. This model is widely applied in industrial protection systems where stable signal transmission, high accuracy, and long-term reliability are required.
The configuration code defines key structural parameters such as probe length, case length, cable length, connector type, and approval option, allowing adaptation to different installation requirements in heavy-duty industrial environments. Based on typical 330101 ordering structure, the “10-24-10-02-00” segment indicates a 1.0 m cable length, 2.4 in case length, ClickLoc connector, and standard industrial approval.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-10-24-10-02-00 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length Option | 2.4 in (code 24) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial (code 02) |
| Agency Approval | Standard industrial (code 00) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | ~1.0 m |
| Weight | ~0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial cable |
