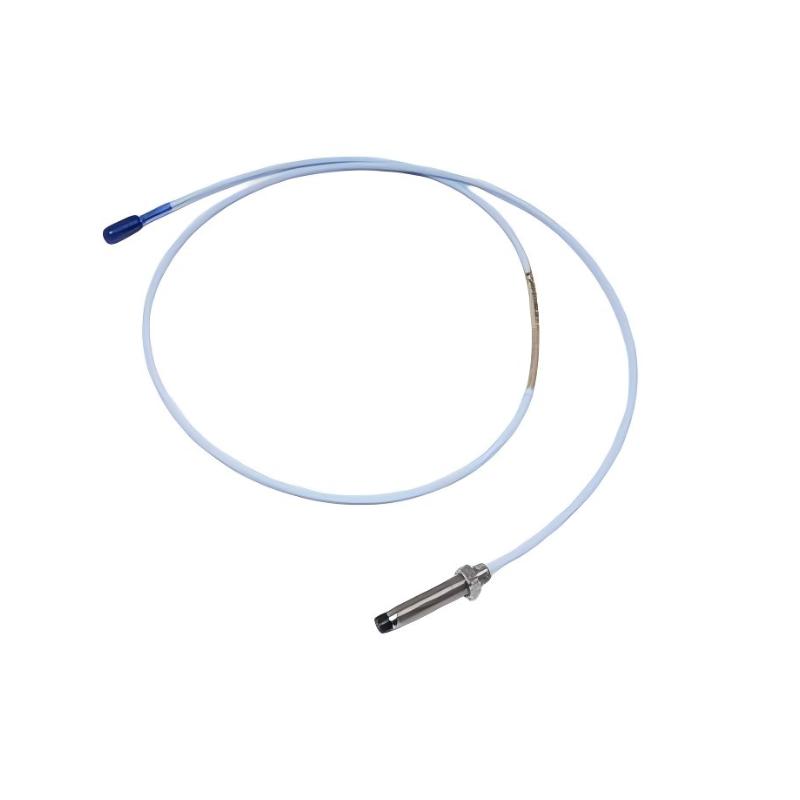

The Bently Nevada 330101-10-27-05-02-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for high-precision shaft vibration and position monitoring in rotating machinery such as turbines, compressors, pumps, and motors.
It operates using eddy current displacement sensing technology and forms a complete measurement chain with a Proximitor sensor and extension cable. This model is commonly applied in industrial condition monitoring systems where long-term stability, high accuracy, and resistance to harsh environments are required.
The configuration code defines mechanical and system parameters such as probe length, case length, cable length, connector type, and approval level. Variants in this family are widely used across oil & gas, power generation, and heavy industry for continuous machinery protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-10-27-05-02-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 1.0 in (code 10) (configuration-dependent) |
| Case Length Option | 2.7 in (code 27) |
| Total Cable Length | 0.5 m (code 05) (typical interpretation for this code family) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | CSA / ATEX / IECEx (code 05) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | Approx. 0.5 m |
| Weight | ~0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial cable |
