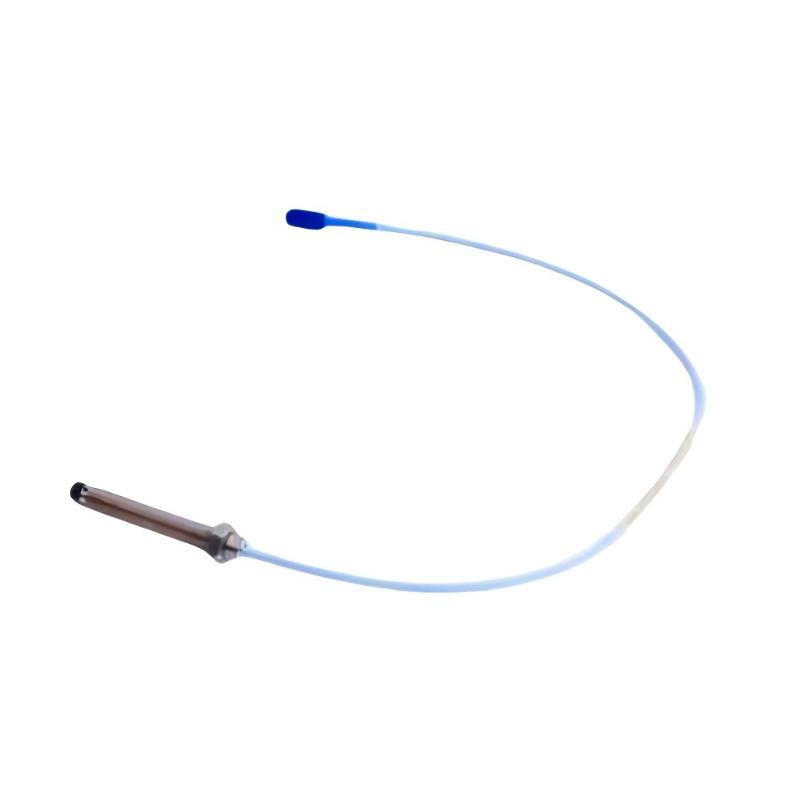

The Bently Nevada 330101-13-37-10-02-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for high-precision shaft vibration and position monitoring in rotating machinery such as turbines, compressors, pumps, and industrial generators.
It uses eddy current displacement sensing technology and operates as a key component of a complete monitoring chain together with a Proximitor sensor and extension cable. This model is widely used in condition monitoring systems across oil & gas, power generation, and heavy industrial plants where continuous reliability and measurement stability are critical.
In this configuration, the model code defines mechanical structure and system options. Based on verified 3300 XL coding patterns, “13” and “37” correspond to specific probe mechanical length configurations, while “10-02-05” typically indicates a 1.0 m cable length, ClickLoc connector type, and CSA/ATEX/IECEx approval used in hazardous industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-13-37-10-02-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | Configuration-dependent (code 13) |
| Case Length Option | Configuration-dependent (code 37) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | CSA / ATEX / IECEx (code 05) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | ~1.0 m |
| Weight | ~0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial cable |
