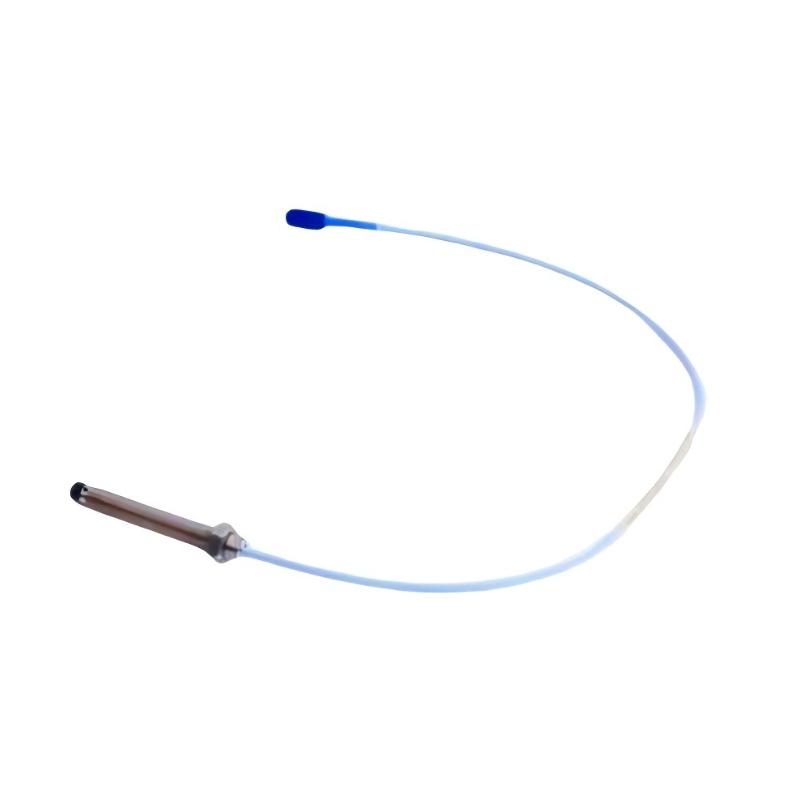

The Bently Nevada 330101-13-37-10-12-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for precise vibration and shaft position monitoring in rotating machinery such as turbines, compressors, pumps, and motors.
It operates using eddy current sensing technology and forms a complete measurement chain with a Proximitor sensor and extension cable. This model is widely used in condition monitoring systems in oil & gas, power generation, and heavy industrial environments where high reliability and stable long-term performance are required.
The model code defines configuration parameters such as probe tip structure, unthreaded length, case length, cable length, connector type, and hazardous-area approval level. In this variant, “37” typically refers to a longer probe body configuration, while “10-12-05” generally indicates a 1.0 m cable, ClickLoc connector system, and CSA/ATEX/IECEx certification for industrial safety applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-13-37-10-12-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 1.3 in (code 13) |
| Case Length Option | 3.7 in (code 37) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 12 / system variant) |
| Agency Approval | CSA / ATEX / IECEx (code 05) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | ~1.0 m |
| Weight | ~0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial cable |
