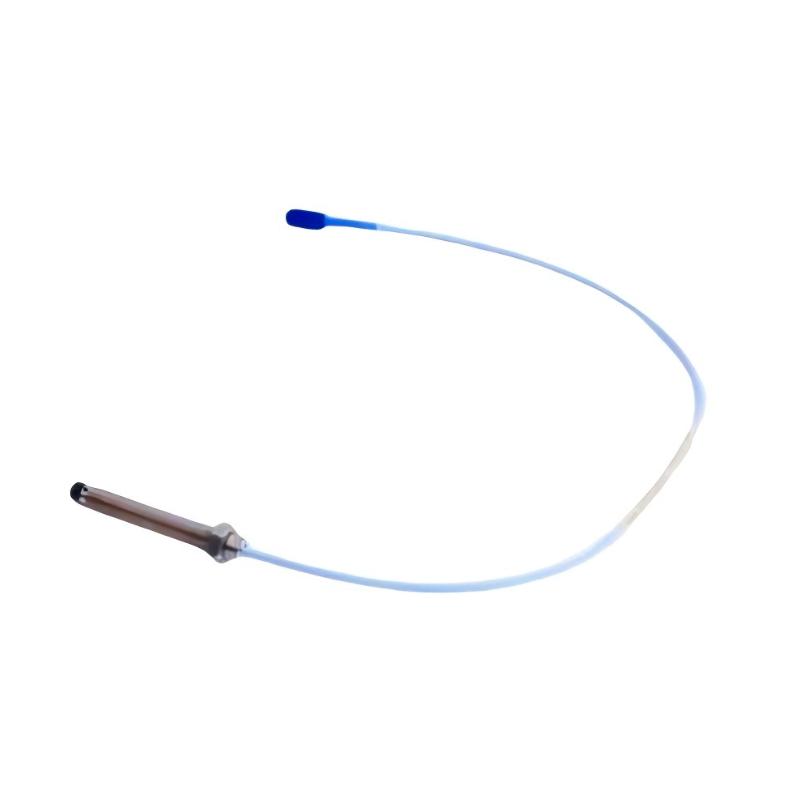

The Bently Nevada 330101-15-40-10-02-00 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for high-accuracy shaft vibration and position monitoring in rotating machinery such as turbines, compressors, pumps, and generators.
It uses eddy current non-contact sensing technology and works as part of a complete measurement system together with a Proximitor sensor and extension cable. This model is widely used in industrial condition monitoring and protection systems where stable long-term performance, signal integrity, and harsh-environment durability are essential.
The configuration code defines mechanical and system parameters such as unthreaded length, case length, cable length, connector type, and agency approval. In this model, “15” typically refers to a 1.5-inch unthreaded length, while “40” indicates a 4.0-inch case length, and “10-02-00” represents a 1.0 m cable, ClickLoc connector, and standard industrial approval configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-15-40-10-02-00 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 1.5 in (code 15) |
| Case Length Option | 4.0 in (code 40) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial (code 02) |
| Agency Approval | Standard industrial (code 00) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | ~1.0 m |
| Weight | ~0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial cable |
