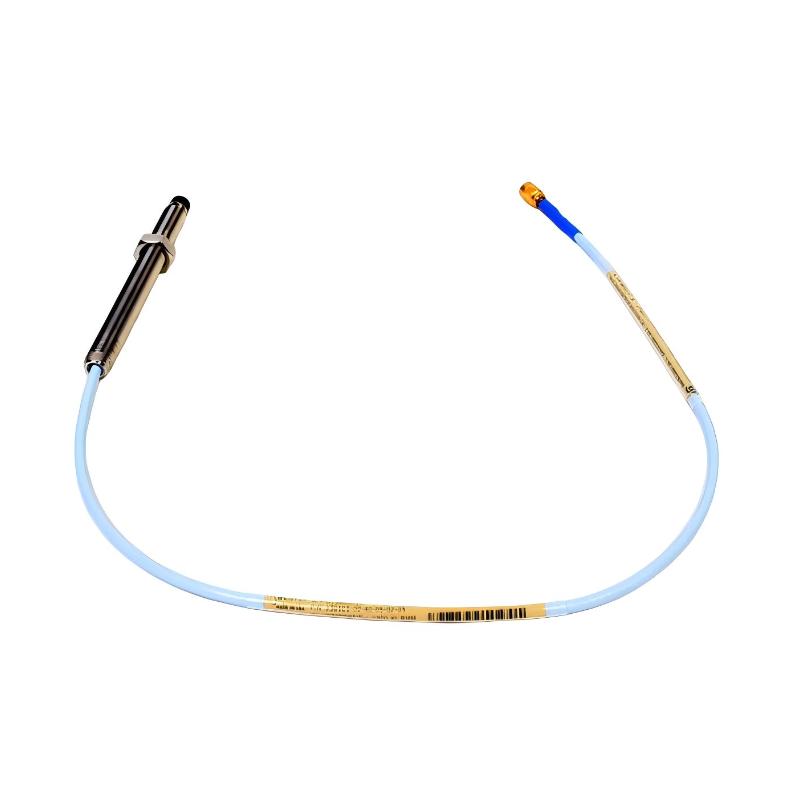

The Bently Nevada 330101-25-44-10-02-05 Proximity Probe is a high-precision sensing device from the trusted 3300 XL 8 mm Proximity Transducer System. Designed for continuous machinery protection and condition monitoring, this probe provides accurate non-contact measurement of shaft vibration, position, and displacement in critical rotating equipment.
Built to meet the demanding requirements of industrial applications, the probe delivers reliable performance in harsh environments while supporting predictive maintenance strategies. Its robust design, excellent signal stability, and compatibility with Bently Nevada monitoring platforms make it an ideal choice for power generation, oil and gas, petrochemical processing, and heavy manufacturing facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-25-44-10-02-05 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Technology | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length Option | 2.5 in |
| Case Length Option | 4.4 in |
| System Length | 1.0 m |
| Connector Type | Miniature ClickLoc Connector |
| Agency Approval | CSA / ATEX / IECEx |
| Housing Material | Stainless Steel |
| Cable Type | Shielded Coaxial Cable |
| Measurement Functions | Shaft Vibration, Position and Displacement |
| System Compatibility | 3300 XL Monitoring Systems |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Unthreaded Length | 2.5 in (63.5 mm) |
| Case Length | 4.4 in (111.8 mm) |
| Total System Length | 1.0 m |
| Approximate Weight | 0.25–0.40 kg |
| Construction Material | Stainless Steel |
