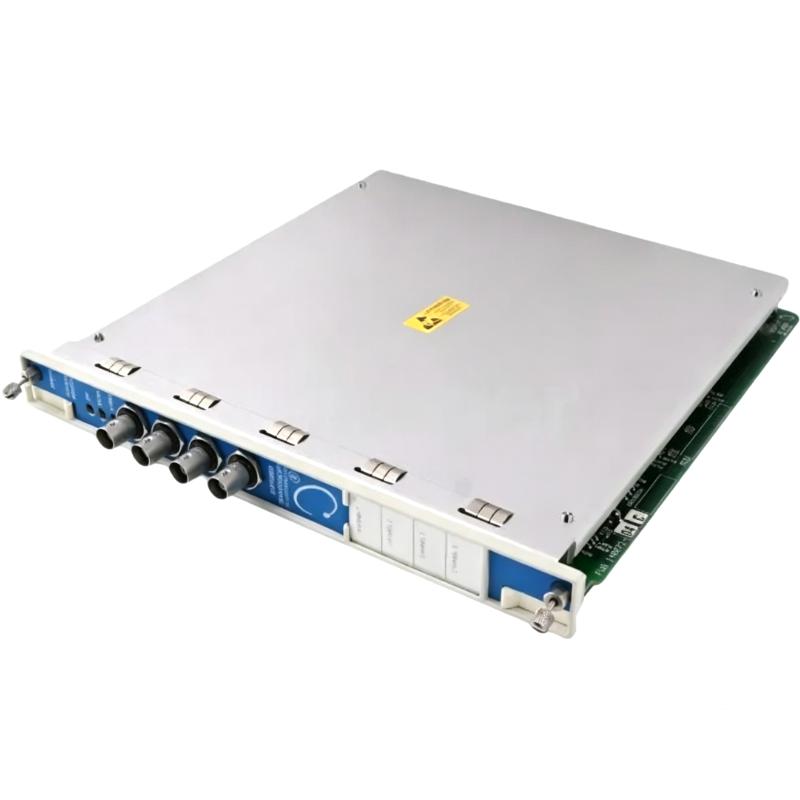

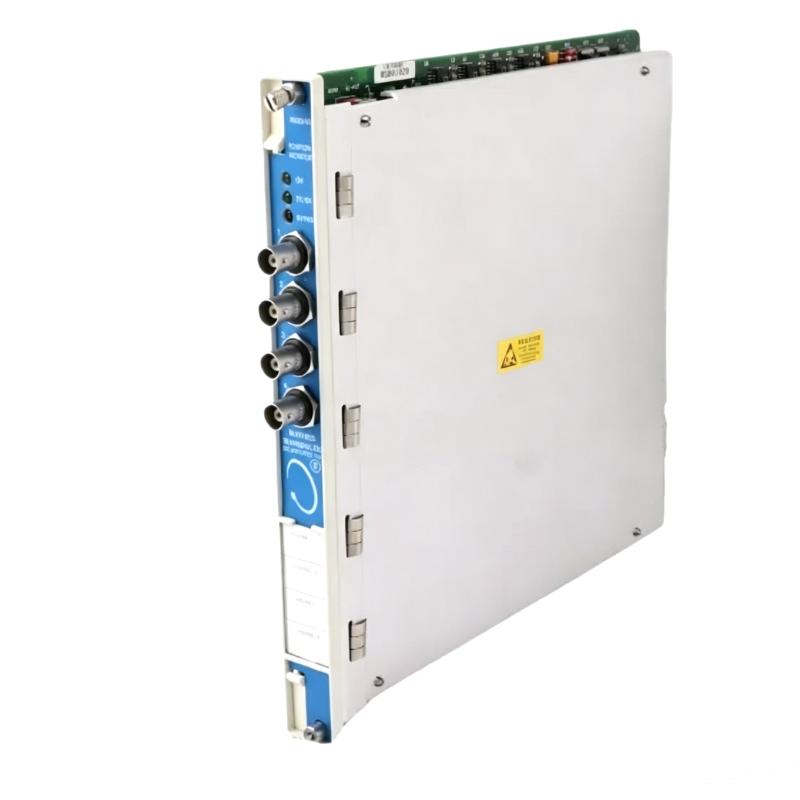

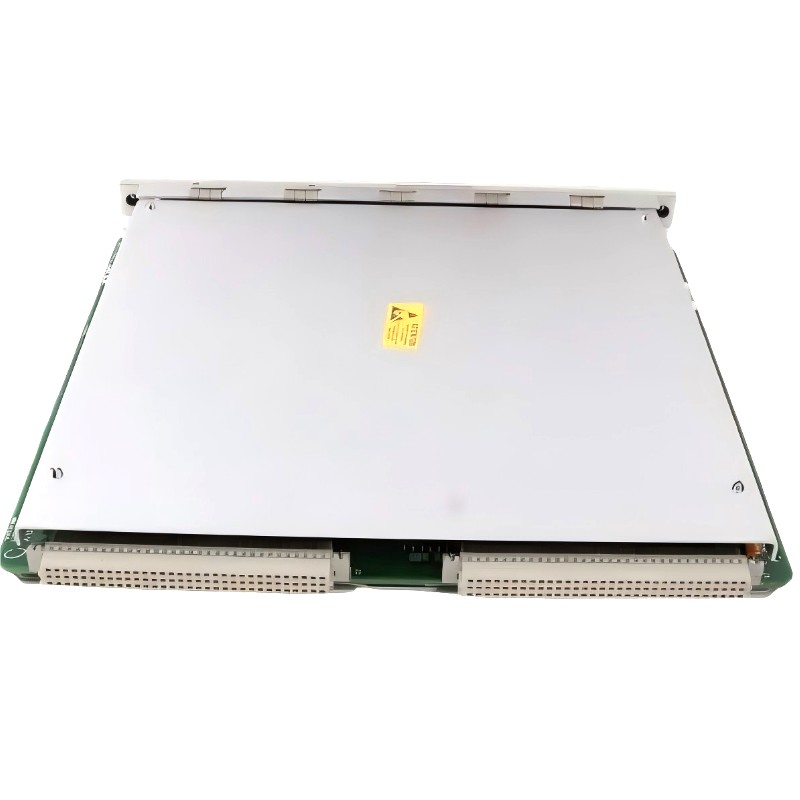

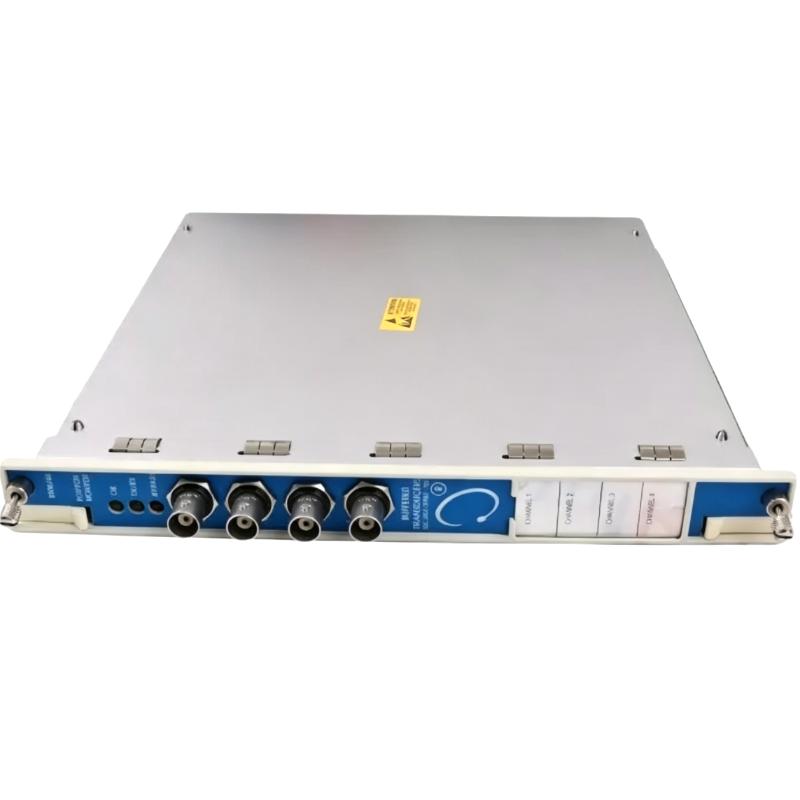

Bently Nevada 3500/22M-01-01-00 Transient Data Interface Module
Bently Nevada 3500/22M-01-01-00 Transient Data Interface Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/22M-01-01-00 Product Origin:USA Product Dimensions:241.3 x 24.4 x 241.8 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/22M-01-01-00 Transient Data Interface Module is designed for advanced machinery condition monitoring within the 3500 system platform. It captures high-speed transient data from rotating equipment, enabling deeper analysis of machine behavior during operational changes such as start-up and shutdown.
Technical Specifications
Item
Value
Product Model
3500/22M-01-01-00
Series
Bently Nevada 3500 System
Product Type
Transient Data Interface Module
Function
High-Speed Data Acquisition
System Role
Advanced Diagnostic Data Collection
System Compatibility
3500 Machinery Protection System
Installation Type
Rack Mounted Module
Monitoring Type
Transient and Dynamic Data
Application
Condition Monitoring & Diagnostics
Dimensions
241.3 × 24.4 × 241.8 mm
Weight
0.91 kg
Recommended Related Models
Model
Product Name
3500/05
System Rack
3500/15
Power Module
3500/32
Relay Module
3500/42M
Vibration Monitoring Module
Popular Related Models
Model
Product Name
3500/25
Keyphasor Module
3500/44M
Position Monitor Module
3500/40M
Proximitor Monitor Module
3500/92
Communication Gateway Module
Applications
• Machinery Protection Data Acquisition
Collects transient and dynamic vibration data from rotating machinery for advanced monitoring and diagnostics.
• Power Generation Asset Monitoring
Used in turbines, generators, and auxiliary systems to capture high-speed machine behavior changes.
• Oil & Gas Critical Equipment Analysis
Supports compressor and pump monitoring where transient events must be recorded and analyzed.
• Industrial Condition Monitoring Systems
Enables deeper analysis of machine start-up, shutdown, and abnormal operating conditions.
Key Advantages
• High-Speed Transient Data Capture
Provides detailed recording of rapid changes in vibration and machine condition.
• Enhanced Diagnostic Capability
Enables engineers to analyze start-up, coast-down, and fault conditions with higher resolution data.
• Seamless 3500 System Integration
Fully compatible with Bently Nevada 3500 rack-based monitoring architecture.
Q1 What is the primary function of the 3500/22M-01-01-00 module?
A: It collects and processes transient data from machinery for advanced vibration and condition analysis.
Q2 What system is it used in?
A: It is used in the Bently Nevada 3500 machinery protection and monitoring system.
Q3 What type of data does it capture?
A: It captures transient vibration and dynamic machine behavior data during operation changes.
Q4 Can it monitor continuous machine operation?
A: Yes, it supports both continuous monitoring and event-based transient recording.
Q5 Why is transient data important?
A: It helps analyze machine behavior during start-up, shutdown, and abnormal operating conditions.
Q6 Does it replace standard monitoring modules?
A: No, it complements other 3500 monitoring modules by providing additional diagnostic data.
Q7 What industries commonly use this module?
A: Power generation, oil and gas, petrochemical, and heavy industrial sectors.
Q8 Is it compatible with other 3500 modules?
A: Yes, it integrates directly into the 3500 rack system architecture.
Q9 Does it require special configuration?
A: It requires proper setup within the 3500 system for data acquisition and analysis.
Q10 What is the benefit of transient data analysis?
A: It improves fault detection accuracy and helps identify issues not visible in steady-state data.
