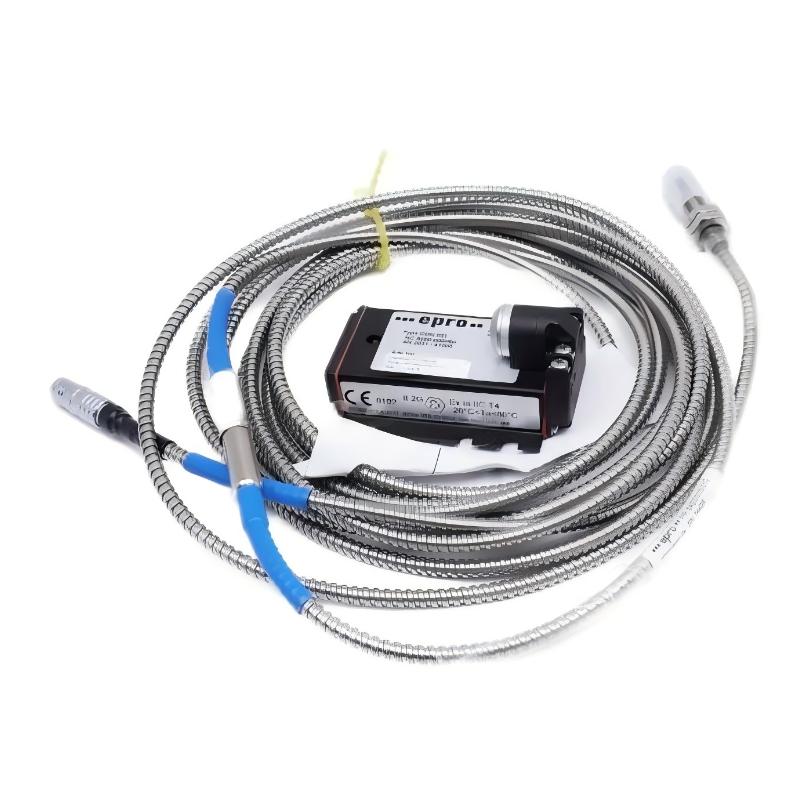

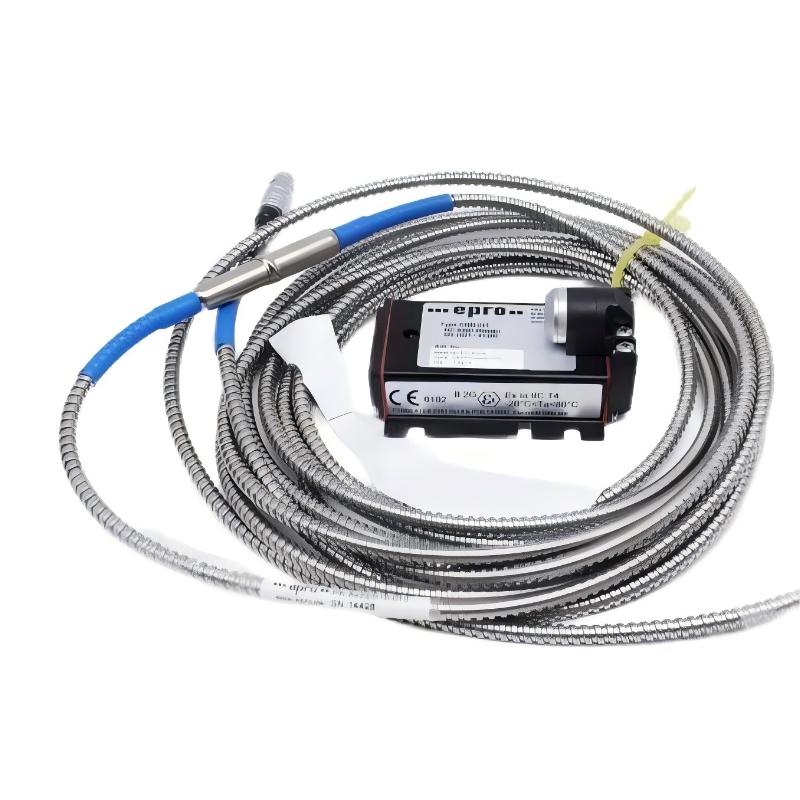

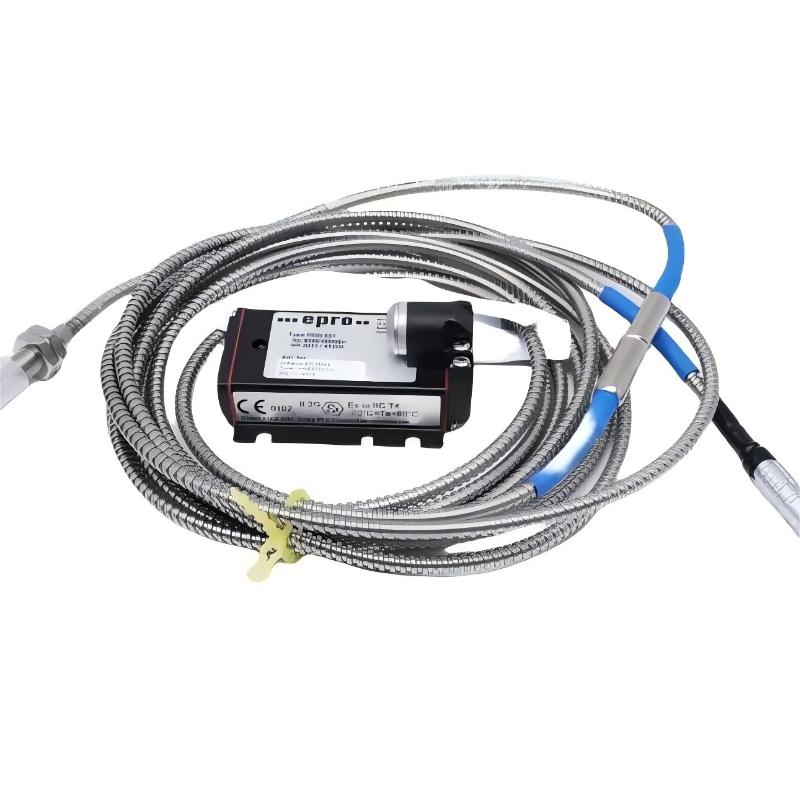

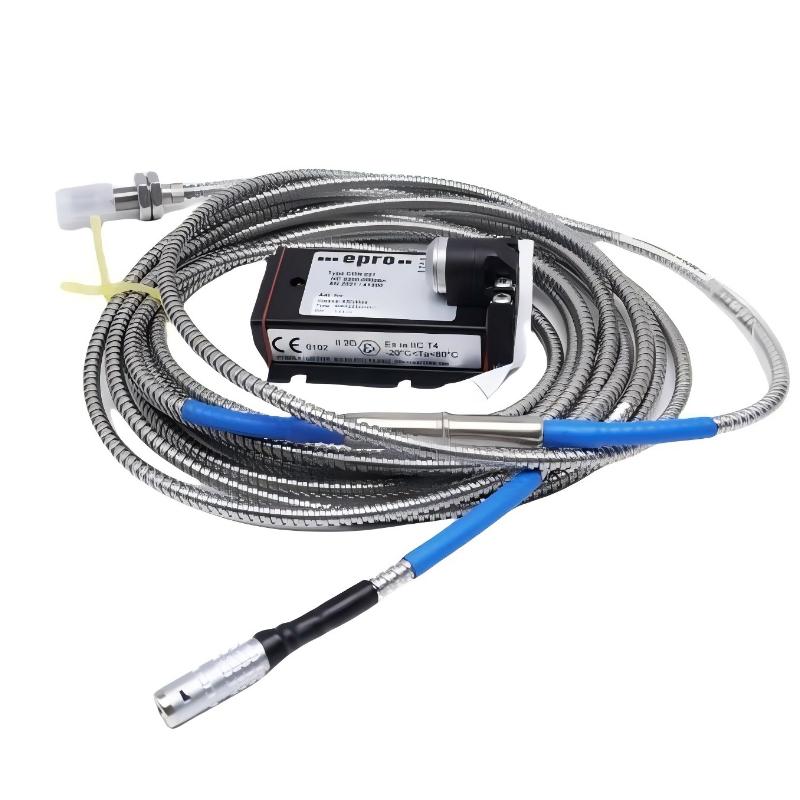

Epro PR6424/000-130+CON021/914-100 16 mm Eddy Current Sensor

Applications

• The PR6424/000-130+CON021/914-100 is designed for precise monitoring of large rotating shafts in turbines, compressors, and industrial motors.

• It is widely used for axial displacement and vibration monitoring in pumps and fans to enhance operational safety.

• The sensor supports condition-based maintenance by detecting shaft eccentricity and dynamic vibration in real time.

• It is commonly applied in gearboxes and drive systems to prevent mechanical failures through early detection of abnormal motion.

• The device is ideal for critical process industries, including power generation and petrochemical plants, where reliable shaft monitoring is essential.

Key Advantages

• Non-contact eddy current technology ensures high-accuracy measurement without mechanical wear.

• The 16 mm probe delivers stable and repeatable readings, suitable for larger machinery applications.

• High-temperature tolerance allows the sensor to function reliably in harsh industrial environments.

• Rugged construction with IP66 protection ensures long-term durability and resistance to dust and moisture.

• Integrated with the CON021/914-100 signal converter, it provides processed, reliable data for predictive maintenance systems.

Technical FAQs

1. What principle does the PR6424/000-130+CON021/914-100 use?
It uses eddy current technology for non-contact measurement of shaft displacement, vibration, and eccentricity.

2. What is the probe diameter of this sensor?
The sensor features a 16 mm probe designed for large-scale machinery monitoring.

3. Which machinery is suitable for this sensor?
It is commonly installed on turbines, compressors, pumps, fans, and gearboxes.

4. Does the sensor contact the shaft?
No, the measurement is completely non-contact, eliminating mechanical wear.

5. What is the linear measurement range?
The standard measurement range is typically 2 mm, providing precise detection of displacement and vibration.

6. What protection rating does the sensor have?
It is rated IP66, suitable for industrial environments.

7. Can it measure axial shaft position?
Yes, it accurately monitors axial displacement, thrust, eccentricity, and dynamic vibration.

8. What is the function of the CON021/914-100 module?
The CON021/914-100 acts as a signal converter, processing and conditioning sensor outputs for monitoring systems.

9. Is it suitable for high-temperature applications?
Yes, it is designed to operate reliably under elevated temperatures found in industrial processes.

10. Can it integrate into machinery protection systems?
Yes, it is widely used in vibration and condition-based monitoring systems for critical rotating equipment.
