Introduction

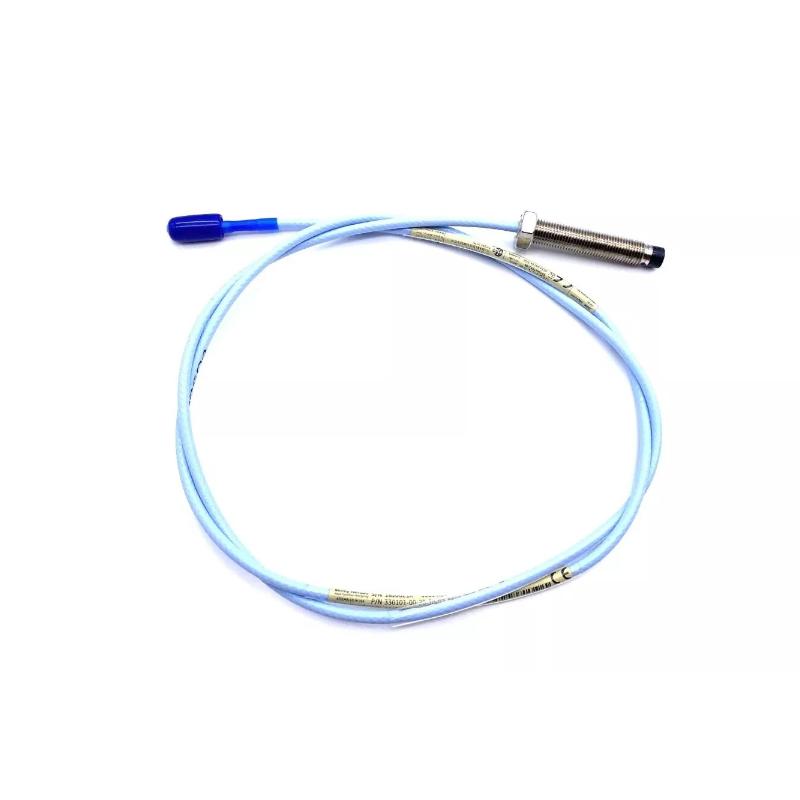

The 330101-XX-XX-10-02-CN is part of the trusted Bently Nevada 3300 XL series, widely used in industrial machinery protection systems. Designed for accurate, non-contact measurement of shaft vibration and position, it provides critical data for predictive maintenance and equipment reliability programs.

Its robust construction and stable signal performance make it suitable for demanding industrial environments, while the 1-meter cable offers installation flexibility in complex mechanical assemblies. The CN configuration ensures compliance suitability for designated industrial applications, making it a dependable choice for global monitoring systems.

Technical Specifications

Parameter	Specification
Sensing Tip Diameter	8 mm
Cable Length	1 m
Weight	0.323 kg (0.71 lb)
Measurement Principle	Eddy-Current Non-Contact
Connector Type	Miniature Coaxial ClickLoc
Operating Temperature	-40 °C to 120 °C
Target Range	0.25 mm – 2 mm
Material	Stainless Steel
Series	3300 XL
Configuration	CN Industrial Version

Applications

The Bently Nevada 330101-XX-XX-10-02-CN 3300 XL 8 mm Proximity Probe is designed for high-reliability condition monitoring in critical rotating machinery environments. It is widely used in:

Gas and steam turbine systems
Industrial compressors and centrifugal pumps
Electric motors and generator shafts
Gearbox assemblies in heavy industry
Oil & gas processing equipment
Power generation and utility plants

It is particularly effective in continuous monitoring scenarios where early detection of vibration and displacement anomalies is essential for preventing equipment failure.

Advantages

High-precision eddy-current non-contact measurement technology
Stable performance under harsh industrial conditions
8 mm probe design suitable for standard machinery monitoring points
1-meter cable for flexible installation in complex layouts
Reliable integration with 3300 XL Proximitor systems
CN configuration suitable for region-specific industrial compliance requirements
Strong resistance to vibration, temperature variation, and electrical noise
Supports predictive maintenance and asset protection strategies

Technical FAQs

What measurement principle does this probe use?
It uses eddy-current technology for non-contact shaft displacement measurement.
Is it suitable for continuous monitoring applications?
Yes, it is designed for 24/7 industrial condition monitoring.
What systems is it compatible with?
It is compatible with Bently Nevada 3300 XL Proximitor sensor systems.
What type of connector does it use?
It uses a miniature coaxial ClickLoc connector for secure installation.
Can it be used in harsh environments?
Yes, it is designed for high vibration, high temperature, and industrial stress conditions.
What type of target surface is required?
Conductive metallic surfaces such as steel shafts are required for accurate readings.
Does it support vibration and displacement measurement?
Yes, it measures both shaft vibration and position changes.
Is calibration required before use?
It is factory-calibrated; system-level verification is typically sufficient.
Can it be used in turbine monitoring systems?
Yes, it is widely used in turbine and compressor condition monitoring.
What ensures long-term measurement stability?
Stable eddy-current sensing and robust industrial-grade construction ensure consistent performance.
