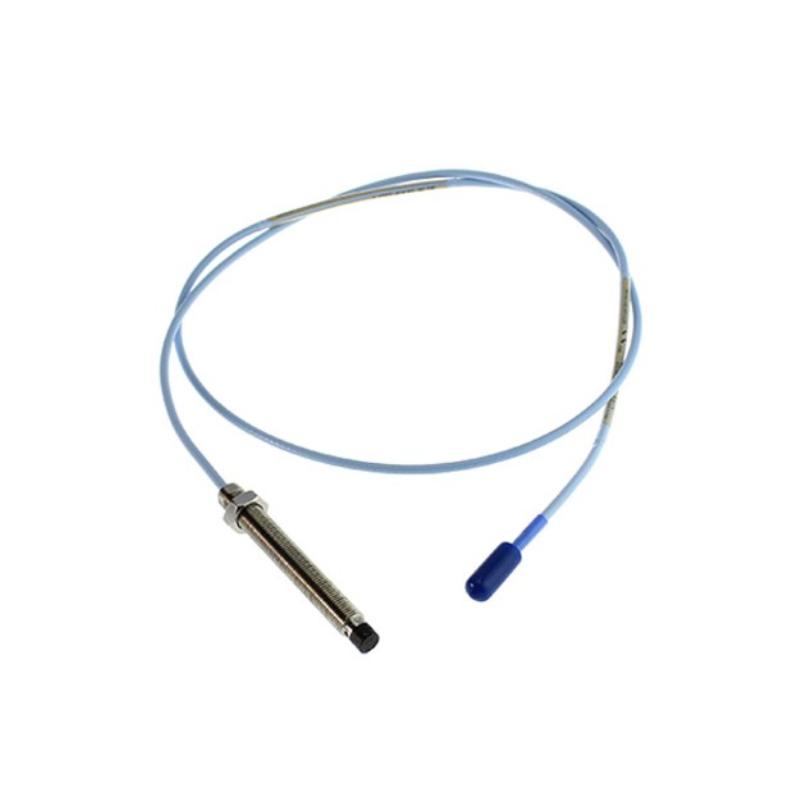

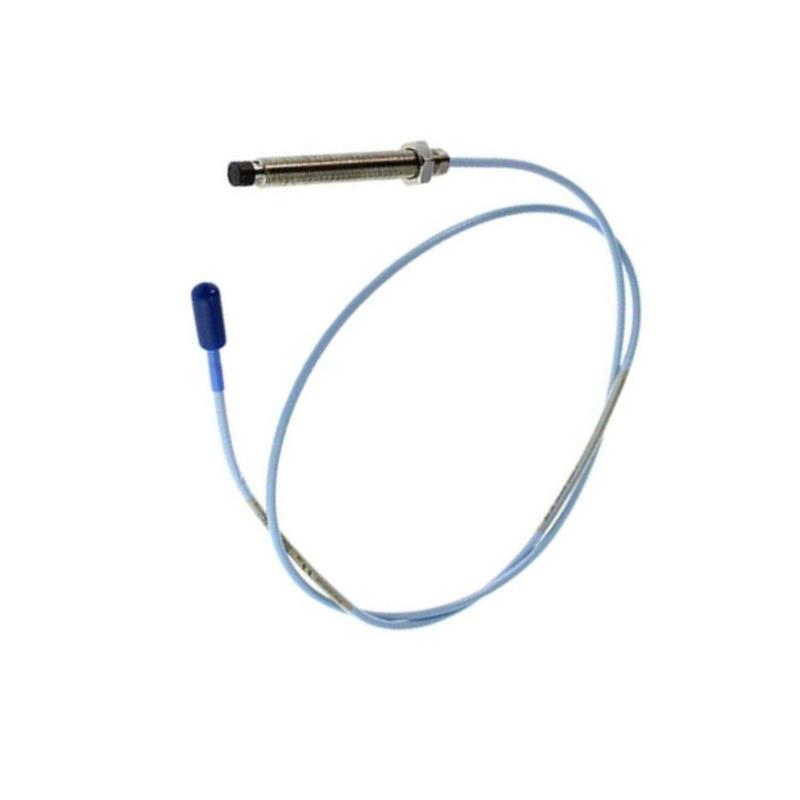

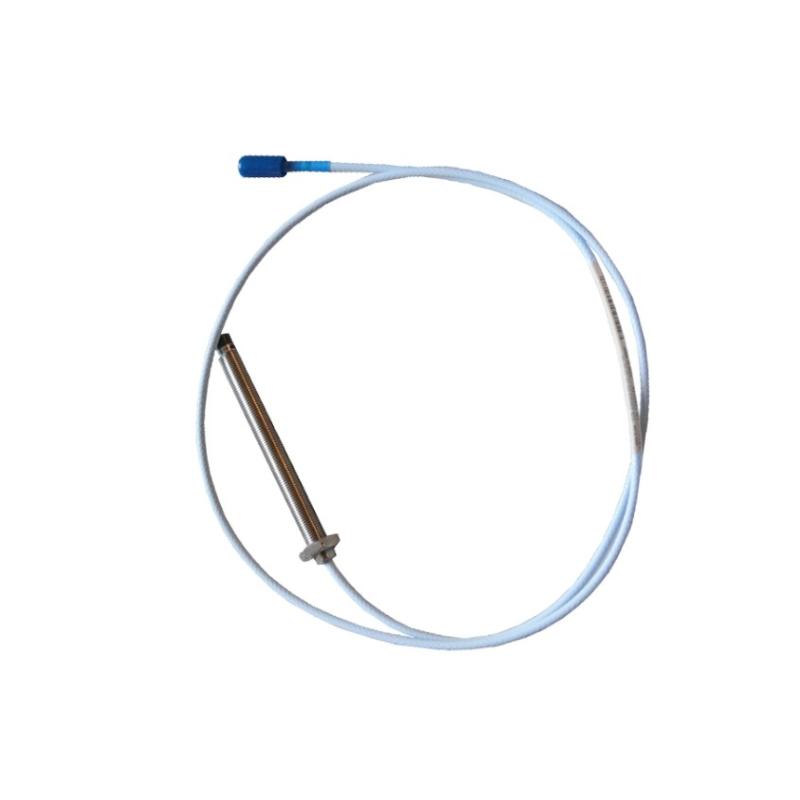

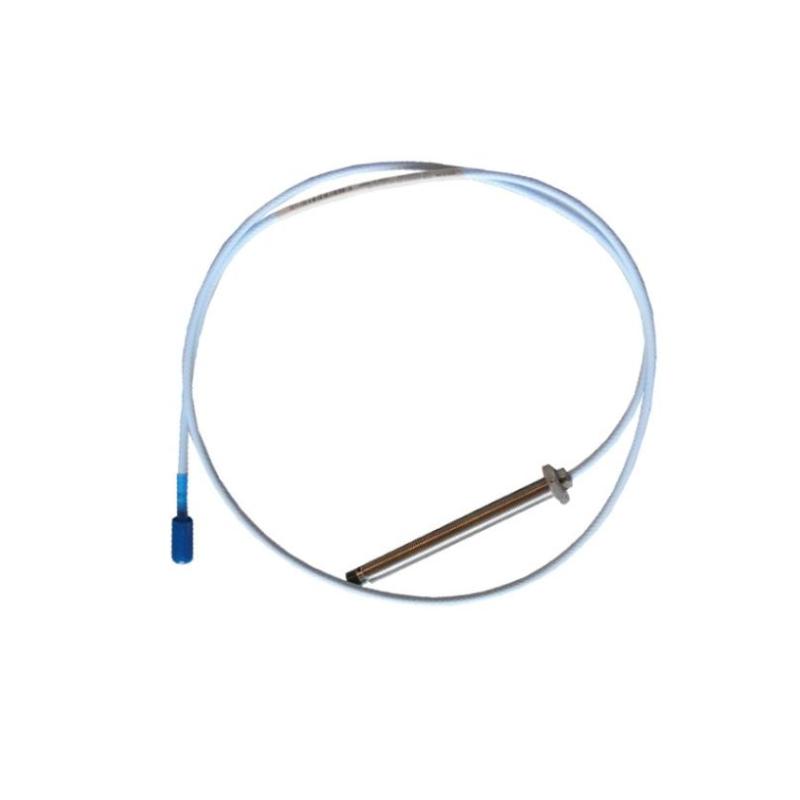

The Bently Nevada 330103-00-02-05-02-00 is a precision 3300 XL 8 mm proximity probe designed for continuous condition monitoring of rotating machinery. It is widely deployed in turbine systems, compressors, motors, and critical production equipment where accurate shaft position and vibration measurement directly impact safety, uptime, and maintenance strategy.

Built for harsh industrial environments, this probe is part of the 3300 XL ecosystem, known for stable signal output, high interchangeability, and long-term reliability in predictive maintenance systems.

Technical Specifications

This model is engineered for high-accuracy displacement sensing with strong mechanical durability and environmental resistance.

Specification Item	Details
Series	3300 XL 8 mm
Model	330103-00-02-05-02-00
Measurement Type	Eddy current proximity sensing
Probe Tip Material	PPS (Polyphenylene sulfide)
Housing Material	Stainless steel (AISI 303/304)
Cable Type	Miniature coaxial ClickLoc™
Operating Temperature	-40°C to +150°C (typical range depending configuration)
Pressure Protection	Viton® O-ring sealing
System Compatibility	3300 XL Proximitor + extension cable systems
Weight	~0.323 kg
Dimensions	Approx. 100 × 100 × 100 mm (shipping reference)

This probe is designed for stable performance even under vibration, humidity, and electrically noisy industrial conditions.

Recommended Related Models

For a complete monitoring chain, the following components are typically paired:

330180 Proximitor Sensor Module
330130 Extension Cable (8 mm system)
3300 XL 8 mm alternate probe lengths (e.g., 330103 variants)
3500/42M Vibration Monitor Module
3500/15 Power Supply Module

Together, these components form a full predictive maintenance architecture used in critical machinery protection systems.

Popular Bently Nevada Models

Within the same industrial ecosystem, these models are frequently selected:

330103-00-05-02-00 (alternative probe configuration)
330103-00-05-10-02-00 (extended cable version)
330104 series proximity probes
3500/44M dynamic vibration monitor
3500/25 Keyphasor module

These models are often mixed depending on shaft size, mounting constraints, and system architecture.

Applications

This probe is used wherever precision shaft movement monitoring is required:

Steam turbine radial vibration monitoring
Gas turbine shaft displacement measurement
Centrifugal compressor condition monitoring
Pump cavitation and misalignment detection
Gearbox vibration tracking
Power plant predictive maintenance systems
Oil & gas rotating equipment protection

It plays a critical role in preventing mechanical failure before it escalates into downtime or equipment damage.

Advantages

Why this model is widely trusted in industrial environments:

High measurement stability for long-term monitoring
Robust stainless steel construction for harsh environments
ClickLoc connector reduces installation errors and downtime
Fully compatible within 3300 XL interchangeable architecture
Strong resistance to EMI/RFI interference
Suitable for continuous 24/7 predictive maintenance systems
Proven reliability in mission-critical rotating equipment

It is often selected for systems where failure is not an option and measurement consistency is essential.

Technical FAQs

1. What is the main function of 330103-00-02-05-02-00?
It measures shaft displacement and vibration using eddy current technology.

2. Is it compatible with all 3300 XL systems?
Yes, it is fully compatible with 3300 XL proximitor sensors and cables.

3. What type of output does it produce?
It generates a signal processed by a proximitor module to represent displacement.

4. Can it be used in high-temperature environments?
Yes, it supports industrial high-temperature operation depending on configuration.

5. What industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy manufacturing.

6. Is installation difficult?
No, the ClickLoc connector system simplifies installation and reduces wiring errors.

7. What is the probe made of?
Stainless steel housing with a PPS sensing tip.

8. Does it support continuous monitoring?
Yes, it is designed for 24/7 condition monitoring applications.

9. What kind of maintenance does it require?
Minimal—periodic inspection of cable integrity and mounting stability.

10. Why is the 3300 XL series widely used?
Because it offers high interchangeability, stable signal performance, and proven industrial reliability.
