Introduction

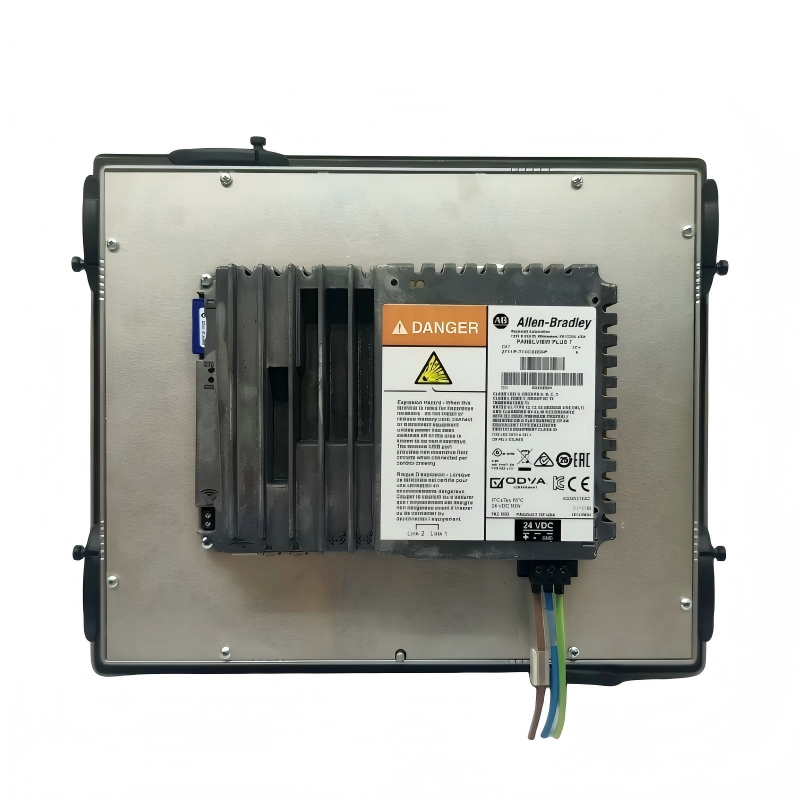

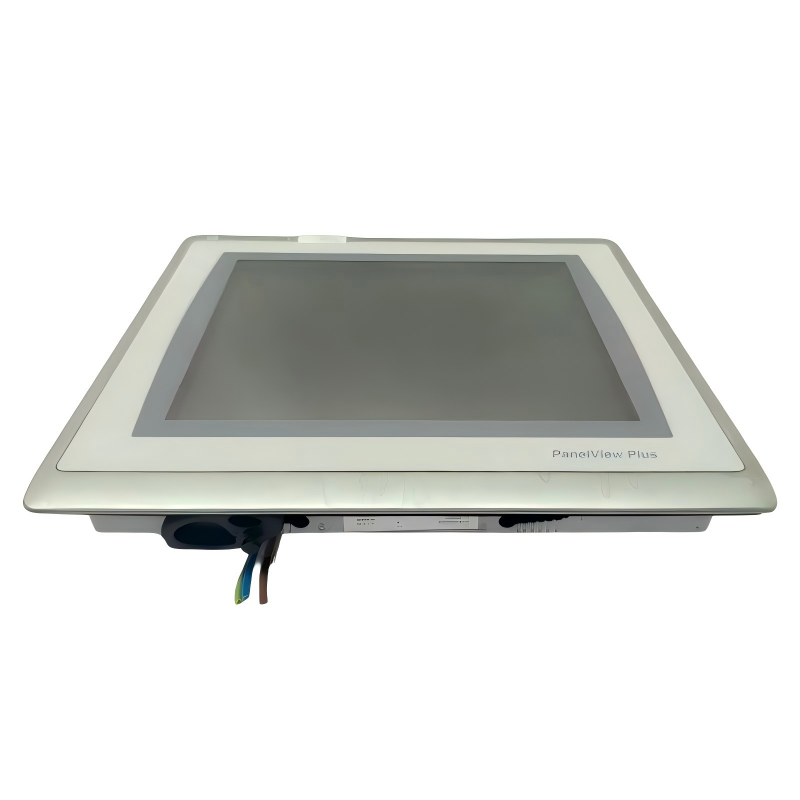

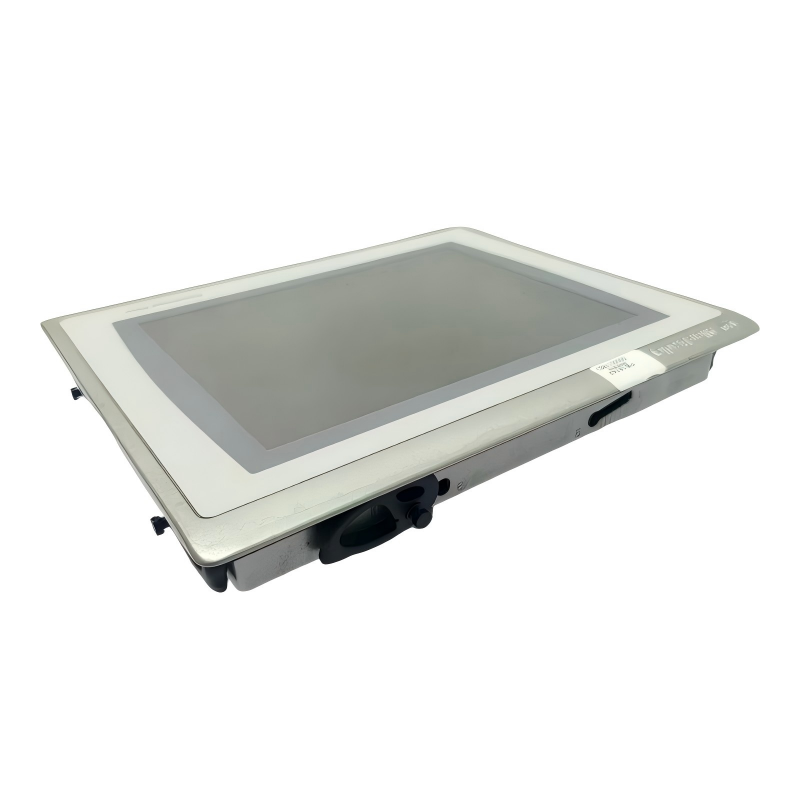

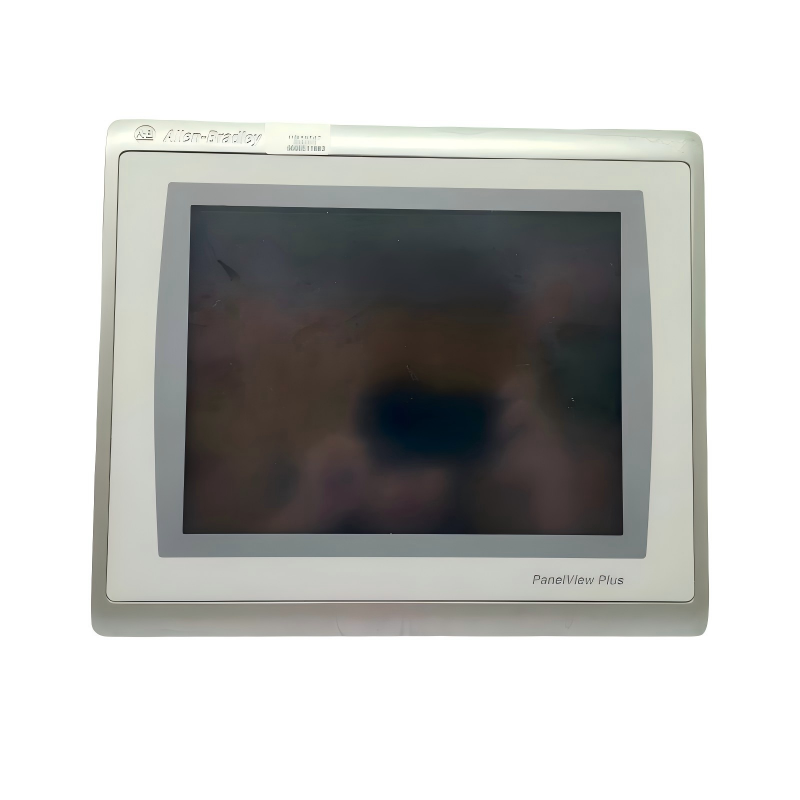

The Allen Bradley 2711P-T10C22D9P PanelView Plus 7 Operator Interface is part of Rockwell Automation’s advanced HMI portfolio, designed to bridge the gap between operators and industrial control systems. It provides a responsive and intuitive interface for monitoring machine status, adjusting parameters, and visualizing process data in real time.

With a 10.4-inch display and rugged industrial construction, it is widely deployed in demanding automation environments where reliability and clarity are essential. The unit supports modern Ethernet-based communication and integrates seamlessly into FactoryTalk ecosystems, making it a core component of smart manufacturing systems.

Technical Specifications

Parameter	Specification
Model	2711P-T10C22D9P
Display Size	10.4 inch
Resolution	800 × 600 SVGA
Display Type	TFT Color Touchscreen
Dimensions (W × H × D)	297 × 252 × 69.6 mm
Weight	2.28 kg (5.03 lb)
Power Supply	24V DC
Communication	Ethernet (DLR / Star / Linear)
Protection Rating	IP66 (front)
Operating Temperature	0 to 55 °C
Software Platform	FactoryTalk View ME

Applications

The Allen Bradley 2711P-T10C22D9P PanelView Plus 7 is a high-performance human-machine interface (HMI) designed for industrial automation and process visualization. It is widely used in:

Factory automation control systems
PLC-based machine operation panels
Packaging and material handling systems
Oil & gas process monitoring stations
Power distribution and utility control rooms
Food and beverage production lines
Pharmaceutical and chemical processing systems

This terminal provides operators with real-time visualization, control interaction, and diagnostics for complex industrial processes.

Advantages

10.4-inch SVGA high-resolution TFT color touchscreen for clear visualization
Dual Ethernet communication supports industrial network flexibility (DLR, star, linear topologies)
Robust industrial design with IP66-rated front protection
Compact panel mounting design suitable for control cabinets
High-performance processing for FactoryTalk View ME applications
Multi-protocol communication for seamless PLC integration
Reliable 24V DC power architecture for industrial environments
Optimized for long-term operation in harsh factory conditions

Technical FAQs

What type of display does this HMI use?
It uses a 10.4-inch TFT color SVGA display with 800×600 resolution.
What PLC systems is it compatible with?
It is primarily compatible with Allen-Bradley ControlLogix and CompactLogix systems.
What communication interfaces are available?
It supports Ethernet communication with industrial network topologies such as DLR, star, and linear.
Is it suitable for harsh environments?
Yes, the front panel is rated IP66 for dust and water resistance.
What software is used to program it?
It is configured using FactoryTalk View Machine Edition (ME).
What is the operating power requirement?
It operates on a 24V DC industrial power supply.
Can it support remote monitoring?
Yes, it supports remote access features depending on system configuration.
Is the touchscreen durable?
Yes, it uses an industrial resistive touchscreen designed for heavy usage.
Does it support USB connections?
Yes, it includes USB ports for data transfer and peripheral devices.
Is this model suitable for high-vibration environments?
Yes, it is engineered for stable operation in industrial machinery environments.
