Brand:Bently Nevada PLC Item No.:Bently Nevada 330103-00-03-05-02-00 Product Origin:USA Product Dimensions:100 × 100 × 100 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

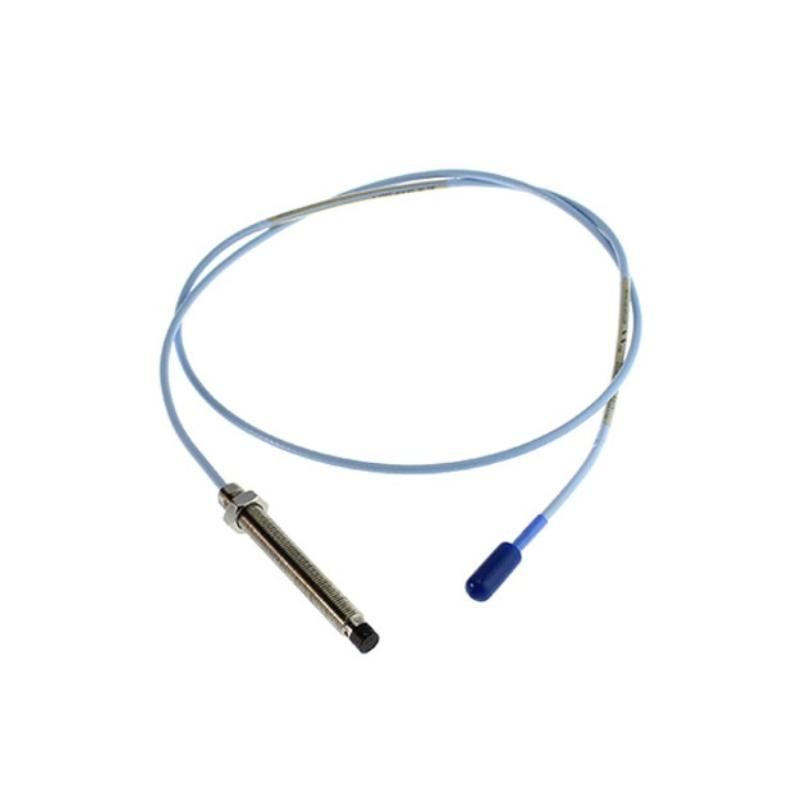

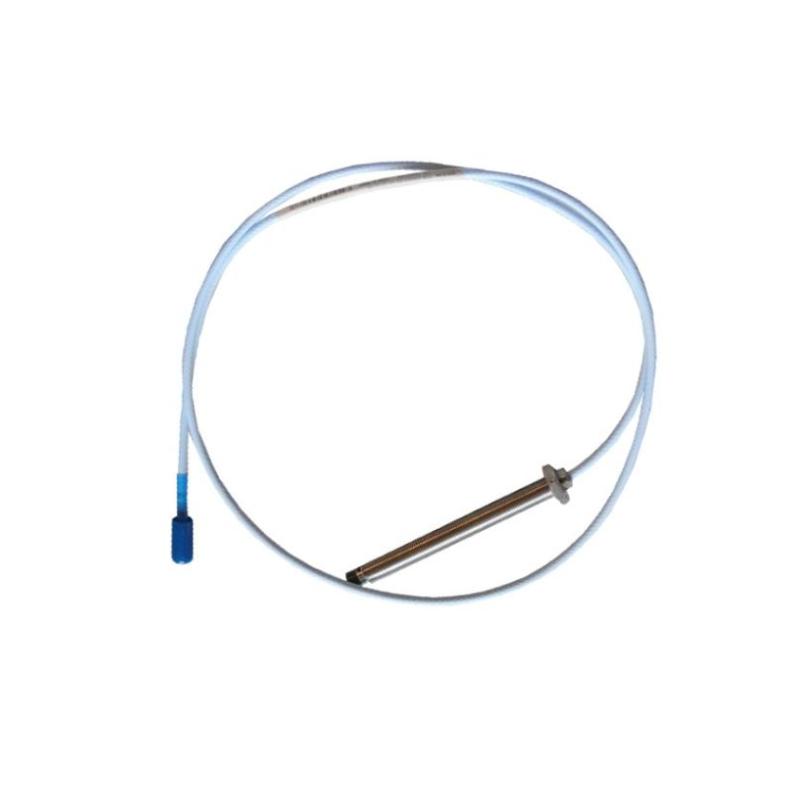

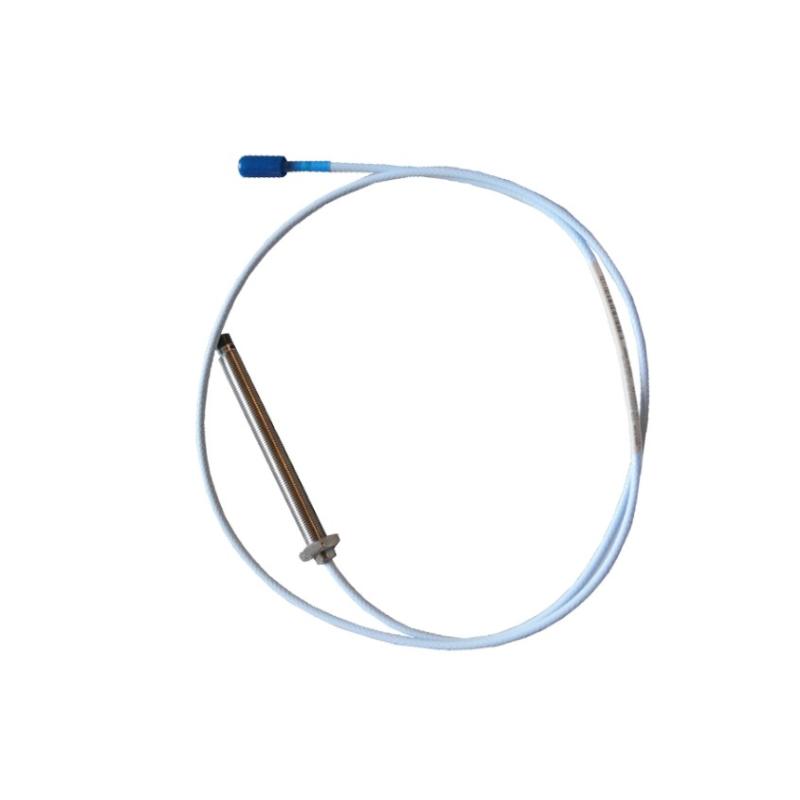

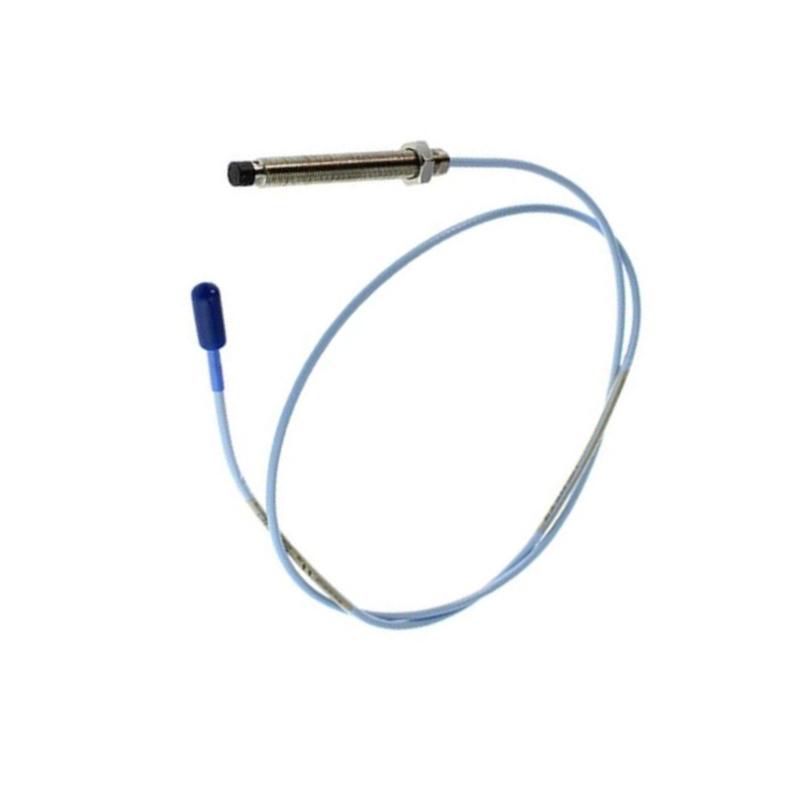

The Bently Nevada 330103-00-03-05-02-00 is a 3300 XL 8 mm eddy current proximity probe used for high-precision vibration and shaft position monitoring in rotating machinery. It is widely deployed in turbines, compressors, pumps, and critical mechanical systems where real-time displacement measurement is essential for equipment protection and predictive maintenance.
As part of the 3300 XL platform, this probe is designed for interchangeability, long-term signal stability, and robust performance in harsh industrial environments.
Technical Specifications
This model follows the standard 3300 XL coding structure, defining mechanical length, cable configuration, and connector type.
Specification Item
Details
Series
3300 XL 8 mm Proximity Probe
Model
330103-00-03-05-02-00
Measurement Type
Eddy current (non-contact displacement sensing)
Probe Diameter
8 mm
Thread Type
M10 × 1 (typical 3300 XL configuration)
Cable Length
~0.5 m (05 configuration code)
Connector Type
ClickLoc™ miniature coaxial
Linear Range
~2.0 mm (typical 8 mm system)
Sensitivity
~7.87 V/mm (200 mV/mil typical system)
Operating Temperature
approx. -40°C to +150°C (system dependent)
Housing Material
Stainless steel
Probe Tip Material
PPS (Polyphenylene sulfide)
Weight
~0.32 kg
Dimensions (approx.): 100 × 100 × 100 mm (packaging-dependent)
Recommended Related Models
To complete a full vibration monitoring chain, this probe is typically paired with:
330180 Proximitor Sensor Module
330130 Extension Cable (matched 3300 XL 8 mm system)
3500/42M Vibration Monitor Module
3500/15 Power Supply Module
Other 330103 series variants with different cable lengths or mounting configurations
These components ensure stable signal conditioning and full system compatibility.
Popular Bently Nevada Models
Within the same ecosystem, these models are frequently used:
330103-00-05-05-02-00 (longer cable system version)
330103-03-06-05-02-00 (reverse mount variant)
330180 Proximitor Sensor series
3500/44M Dynamic Vibration Monitor
Applications
This probe is engineered for continuous monitoring of high-value rotating machinery:
Gas turbine shaft vibration measurement
Steam turbine radial displacement monitoring
Centrifugal compressor condition monitoring
Pump cavitation and alignment detection
Gearbox vibration diagnostics
Oil & gas rotating equipment protection systems
Power generation predictive maintenance platforms
It helps detect early mechanical anomalies before they escalate into costly failures.
Advantages
Why this model is widely adopted in industrial monitoring systems:
High interchangeability within the 3300 XL architecture
Stable eddy current signal output for long-term monitoring accuracy
Rugged stainless steel construction for industrial environments
ClickLoc connector reduces installation errors and downtime
Compatible with API 670-based monitoring systems
Strong resistance to vibration, EMI, and harsh operating conditions
Designed for continuous 24/7 predictive maintenance use
Technical FAQs
1. What is the main function of 330103-00-03-05-02-00?
It measures shaft vibration and position using eddy current sensing.
2. Is it compatible with other 3300 XL components?
Yes, it is fully compatible within the 3300 XL 8 mm system.
3. What equipment commonly uses this probe?
Turbines, compressors, pumps, motors, and other rotating machinery.
4. What is the measurement principle?
Non-contact eddy current displacement measurement.
5. What is the typical cable length?
This configuration corresponds to a short integrated cable (~0.5 m variant).
6. Can it operate in harsh environments?
Yes, it is designed for high vibration, temperature variation, and industrial contamination resistance.
7. Does it require calibration during installation?
No individual probe calibration is required when used within a matched 3300 XL system.
8. What is the expected lifespan?
Typically long-term industrial service life, often exceeding 10 years depending on conditions.
9. What industries use it most?
Power generation, oil & gas, petrochemical, and heavy industry.
10. Why is the 3300 XL system widely used?
Because it provides API-compliant accuracy, modular interchangeability, and proven reliability in critical asset monitoring.
