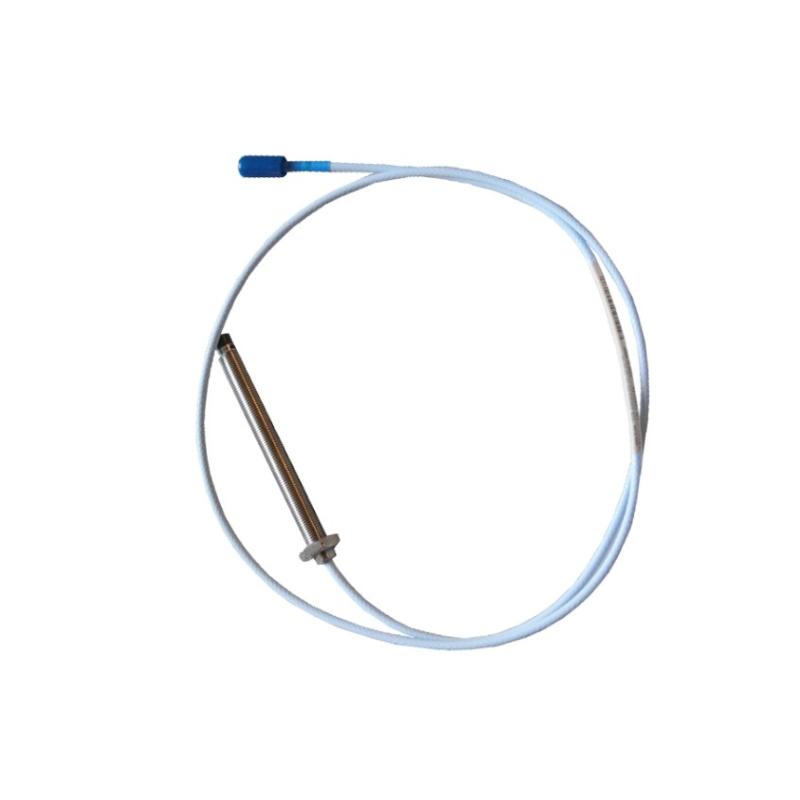

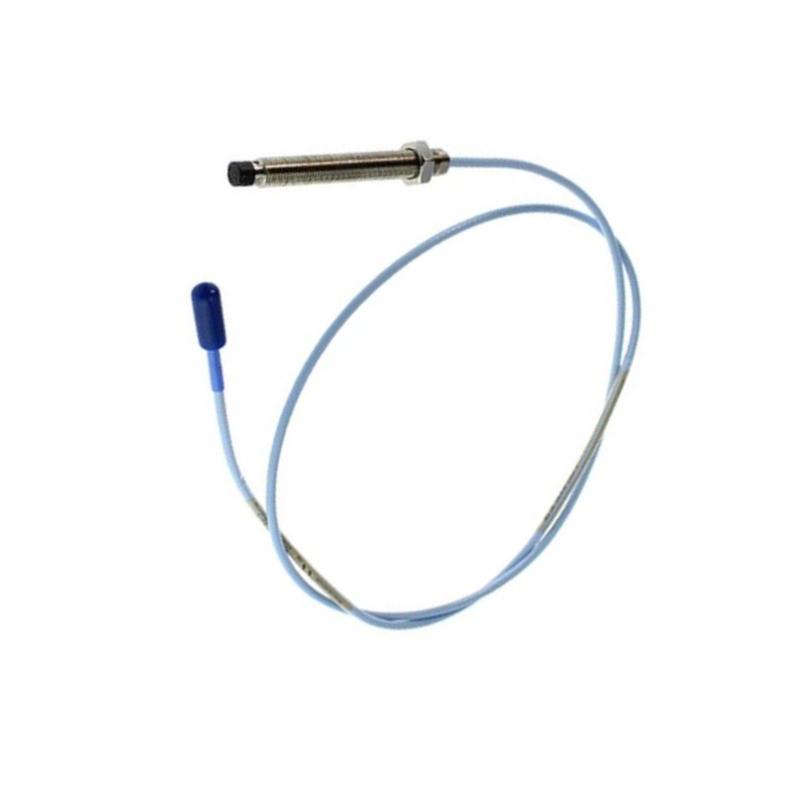

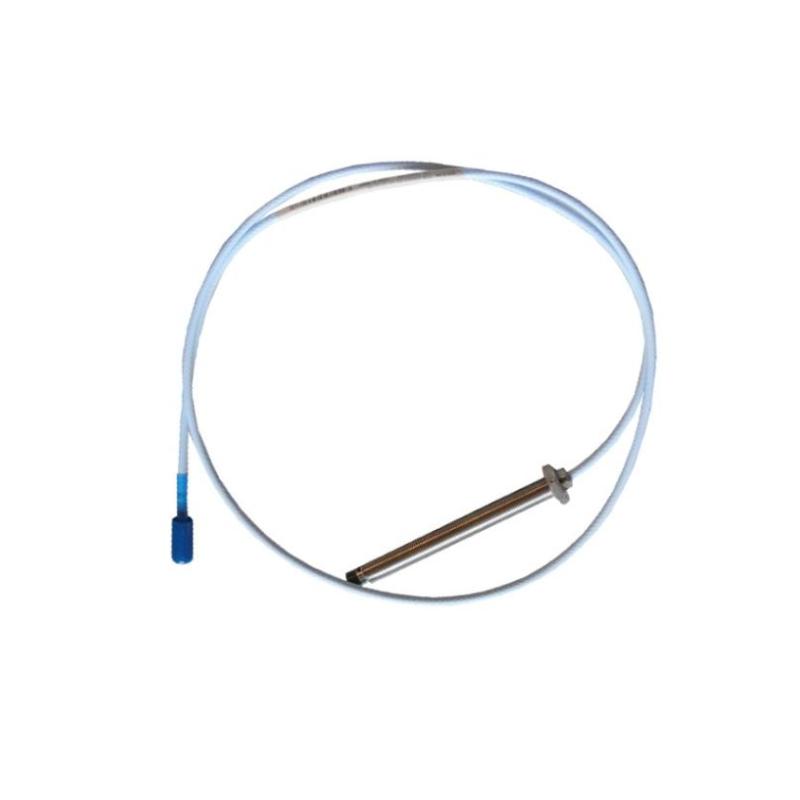

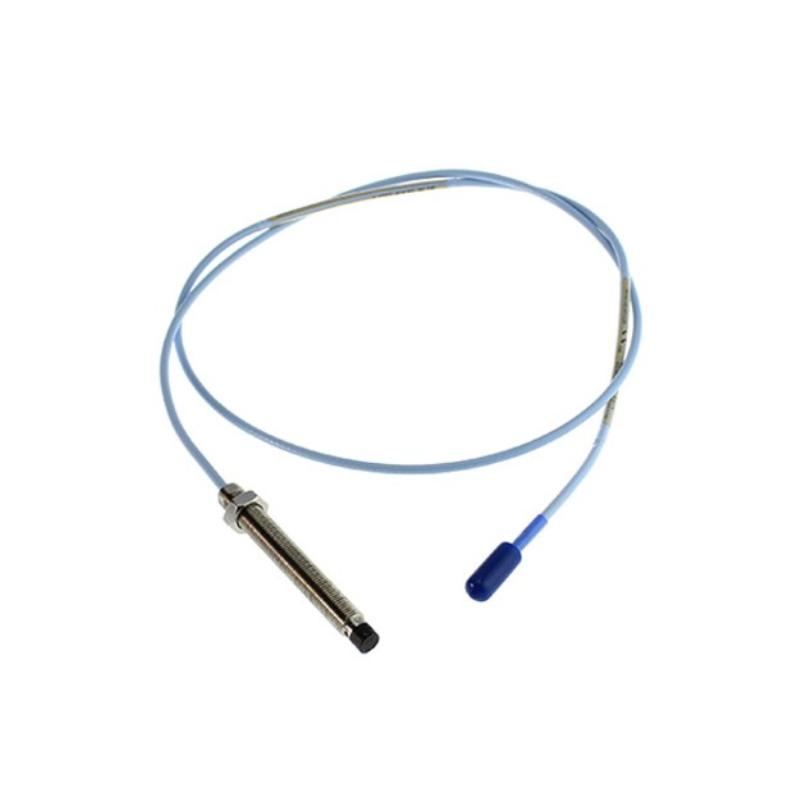

Bently Nevada 330103-00-03-05-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-03-05-02-00 3300 XL 8 mm Proximity Probe
0.0
Points
Brand:Bently Nevada PLC Item No.:Bently Nevada 330103-00-03-05-02-00 Product Origin:USA Product Dimensions:100 × 100 × 100 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330103-00-03-05-02-00 is part of the 3300 XL 8 mm proximity probe series, designed for high-precision non-contact measurement of shaft vibration and position in rotating machinery. It is widely used in turbine trains, compressors, pumps, and other mission-critical industrial assets where continuous condition monitoring is essential for operational safety and predictive maintenance.
As a core element of the 3300 XL system, this probe is valued for its interchangeability, long-term signal stability, and compliance with industrial machinery protection standards such as API 670.
Technical Specifications
This model follows the standardized 3300 XL ordering code, defining probe length, cable configuration, and connector type.
Specification Item
Details
Series
3300 XL 8 mm Proximity Probe
Model
330103-00-03-05-02-00
Measurement Type
Eddy current (non-contact displacement sensing)
Probe Diameter
8 mm
Thread Type
3/8-24 UNF (typical 3300 XL standard)
Cable Length
~0.5 m (code “05” configuration)
Connector Type
Miniature coaxial ClickLoc™
Linear Range
~2.0 mm (80 mils typical system range)
Sensitivity
~7.87 V/mm (200 mV/mil with matched system)
Case Material
Stainless steel (AISI 303/304)
Probe Tip Material
PPS (Polyphenylene sulfide)
Operating Temperature
approx. -51°C to +177°C (system dependent)
Weight
~0.32 kg
Dimensions (approx.): ~100 × 100 × 100 mm (varies by packaging and installation setup)
Recommended Related Models
For a complete vibration monitoring chain, this probe is typically paired with:
330180 Proximitor Sensor Module
330130 Extension Cable (matched 3300 XL 8 mm system)
3500/42M Vibration Monitor Module
3500/15 Power Supply Module
Other 330103 series variants (different cable lengths and certifications)
These components ensure stable signal conditioning and seamless integration into Bently Nevada protection systems.
Popular Bently Nevada Models
Within the same ecosystem, these models are commonly deployed:
This probe is designed for continuous monitoring of high-value rotating machinery in industrial environments:
Gas turbine shaft vibration monitoring
Steam turbine radial displacement measurement
Centrifugal compressor condition monitoring
Pump cavitation and misalignment detection
Gearbox vibration diagnostics
Oil & gas rotating equipment protection
Power plant predictive maintenance systems
It provides early detection of mechanical issues such as imbalance, misalignment, and bearing wear, helping prevent unplanned downtime.
Advantages
What makes this model widely adopted in industrial monitoring systems:
High interchangeability within the 3300 XL architecture
Stable eddy current signal output for long-term accuracy
Rugged stainless steel construction for harsh environments
ClickLoc connector reduces installation time and wiring errors
Strong resistance to EMI, vibration, and industrial contamination
Fully compatible with API 670-compliant monitoring systems
Designed for continuous 24/7 predictive maintenance operation
Technical FAQs
1. What is the main function of 330103-00-03-05-02-00?
It measures shaft vibration and displacement using eddy current proximity sensing.
2. Is it compatible with other 3300 XL components?
Yes, it is fully compatible within the 3300 XL transducer system.
3. What industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy industrial manufacturing.
4. What is the measurement principle?
Non-contact eddy current displacement measurement between probe tip and conductive target.
5. What is the typical cable length?
This configuration corresponds to a short integrated cable (~0.5 m variant).
6. Can it operate in harsh environments?
Yes, it is designed for high vibration, temperature variation, and industrial conditions.
7. Does it require calibration during installation?
No individual calibration is required when used with a matched 3300 XL system.
8. What is the expected service life?
Typically over 10 years in properly maintained industrial environments.
9. Can it be used in continuous monitoring systems?
Yes, it is designed for 24/7 machinery protection and condition monitoring.
10. Why is the 3300 XL platform widely used?
Because it provides standardized accuracy, modular interchangeability, and proven reliability in critical asset protection systems.
