Introduction

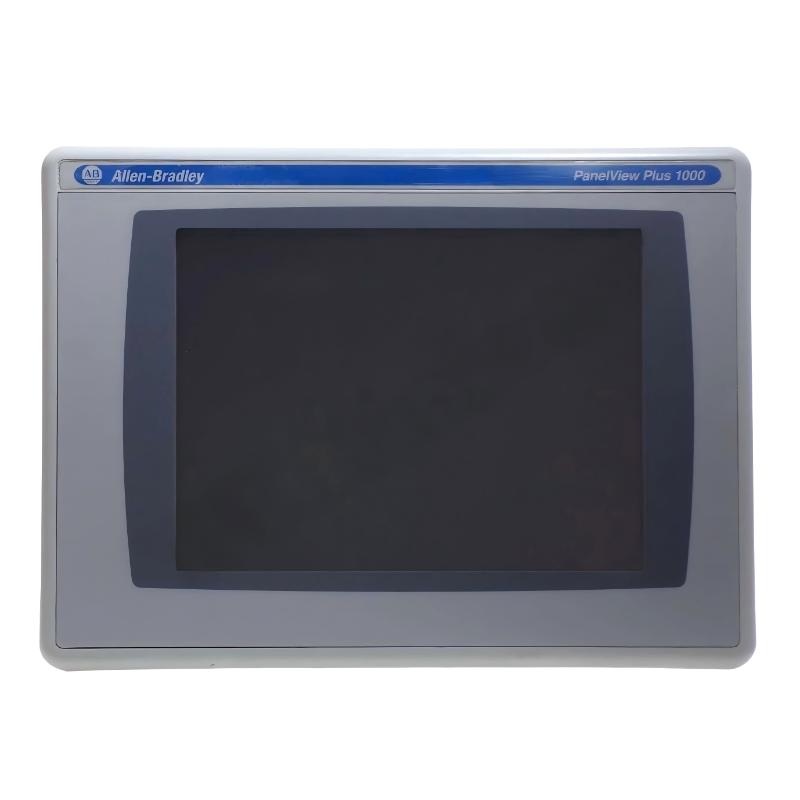

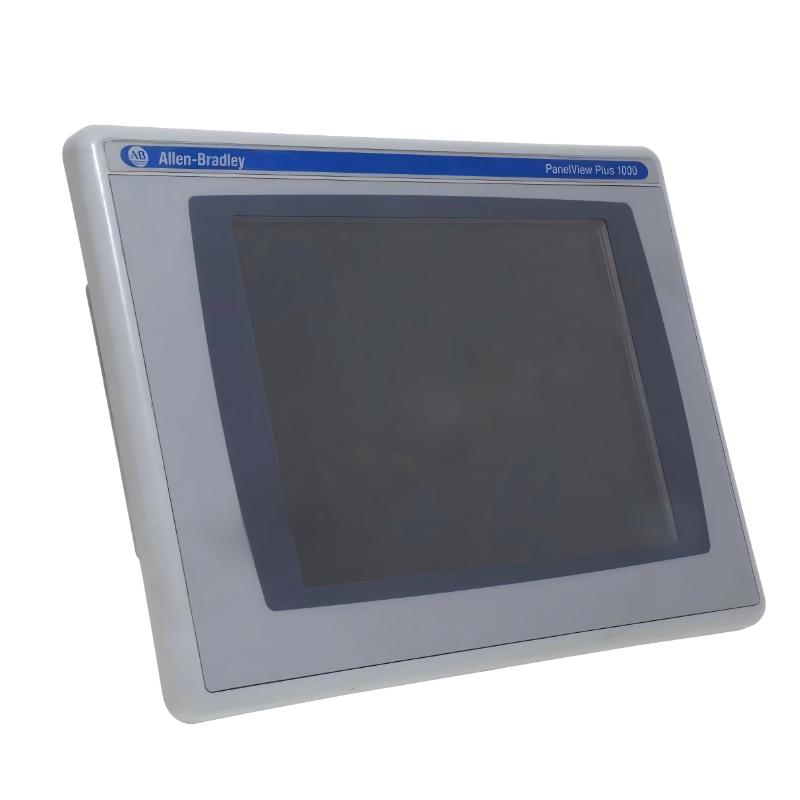

The Allen Bradley 2711P-T10C4D8 PanelView Plus 6 1000 Operator Interface combines rugged industrial design with advanced visualization capabilities. Featuring a 10.4-inch display, this HMI provides operators with clear, responsive control over machinery and process systems.

Its compatibility with FactoryTalk View ME allows flexible application development, while Ethernet and RS-232 communication options ensure seamless integration with PLCs. The 2711P-T10C4D8 is ideal for operators in manufacturing, chemical processing, and utility applications seeking reliable, real-time control.

Technical Specifications

Parameter	Specification
Model	2711P-T10C4D8
Series	PanelView Plus 6
Display Size	10.4 inch
Resolution	640 × 480 SVGA
Display Type	Color TFT Resistive Touchscreen
Dimensions (W × H × D)	329 × 248 × 55 mm
Weight	2.5 kg (5.51 lb)
Power Supply	100–240V AC
Communication Ports	Ethernet, RS-232
USB Ports	2 × USB
Operating System	Windows CE 6.0
Software	FactoryTalk View ME
Protection Rating	Industrial panel-mount enclosure

Applications

The Allen Bradley 2711P-T10C4D8 PanelView Plus 6 1000 is a robust human-machine interface designed for industrial automation and process visualization. It is ideal for environments where operators need real-time control and monitoring of complex machinery. Typical applications include:

PLC-based manufacturing lines
Packaging and material handling systems
Oil & gas process control panels
Power distribution and utility monitoring
Pharmaceutical and chemical processing plants
Food and beverage production lines
Factory automation systems requiring precise operator interaction

This interface enhances operational efficiency, safety, and real-time decision-making in industrial environments.

Advantages

10.4-inch SVGA resistive touchscreen for intuitive operator interaction
High-resolution 640 × 480 display for clear visualization of process data
Industrial-grade design for durability and long-term reliability
Ethernet and RS-232 ports for flexible PLC and network integration
Dual USB ports for data transfer and peripheral support
Compatible with FactoryTalk View Machine Edition for advanced HMI development
Stable operation under harsh factory conditions
Easy installation in standard control cabinets

Technical FAQs

What type of display does this model have?
It features a 10.4-inch color TFT resistive touchscreen with 640 × 480 resolution.
Which PLC systems can it interface with?
Compatible with Allen-Bradley ControlLogix and CompactLogix PLCs.
What software is used to program this HMI?
FactoryTalk View Machine Edition (ME).
What communication options are available?
Ethernet and RS-232 communication ports.
Is it suitable for industrial environments?
Yes, it is designed to withstand vibration, dust, and continuous industrial operation.
Can it support USB devices?
Yes, it includes dual USB ports for maintenance and data transfer.
What operating system does it use?
Windows CE 6.0 embedded.
Does it support remote monitoring?
Yes, depending on network and system configuration.
Is the touchscreen durable for heavy-duty use?
Yes, the resistive touchscreen is designed for industrial glove use and frequent operation.
Is this model still supported by Rockwell Automation?
It is part of the PanelView Plus 6 series, considered legacy but widely used in existing installations.
