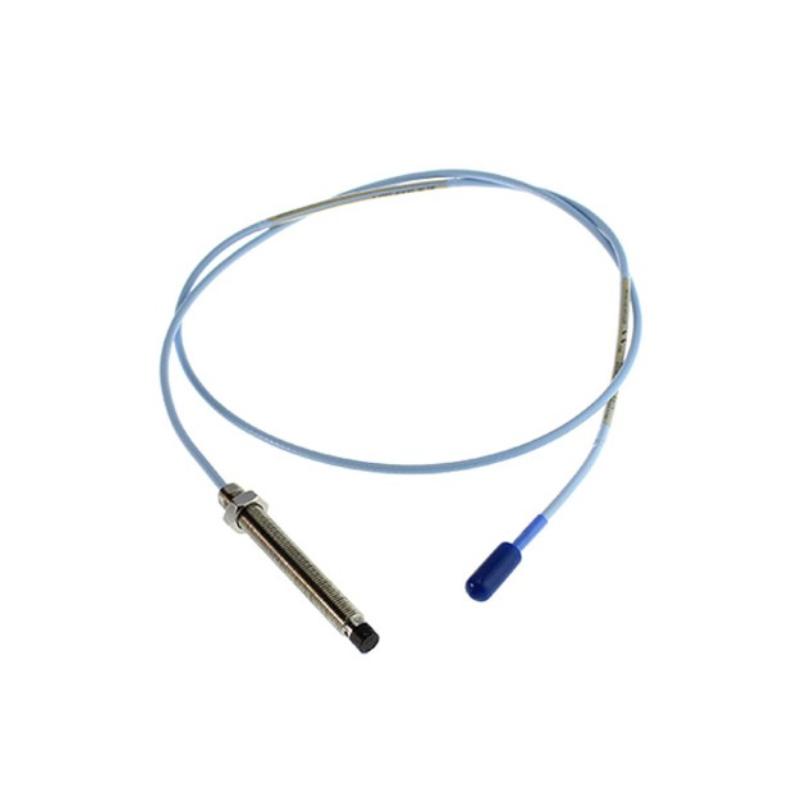

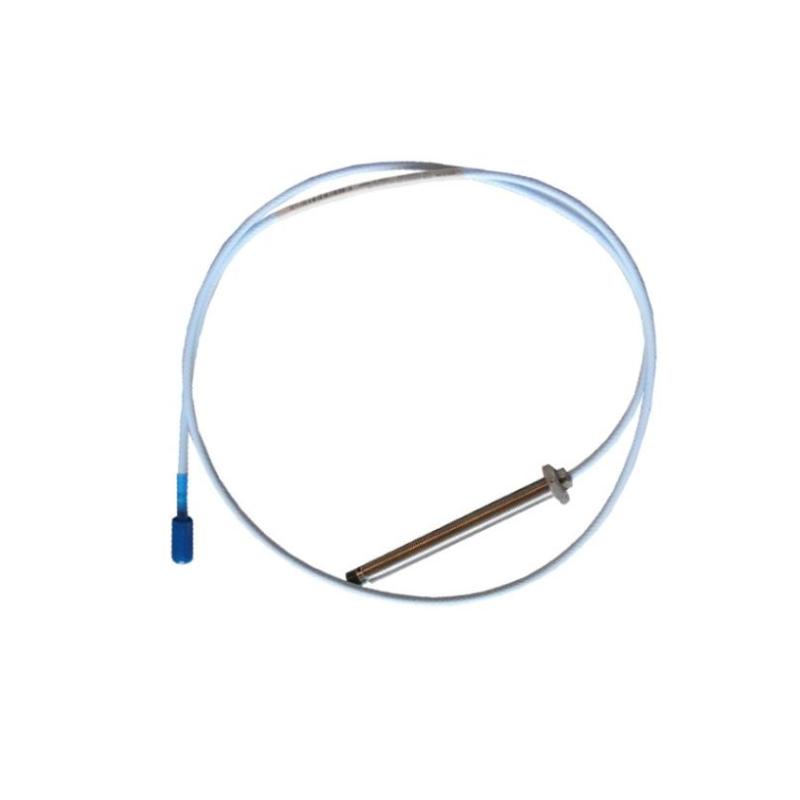

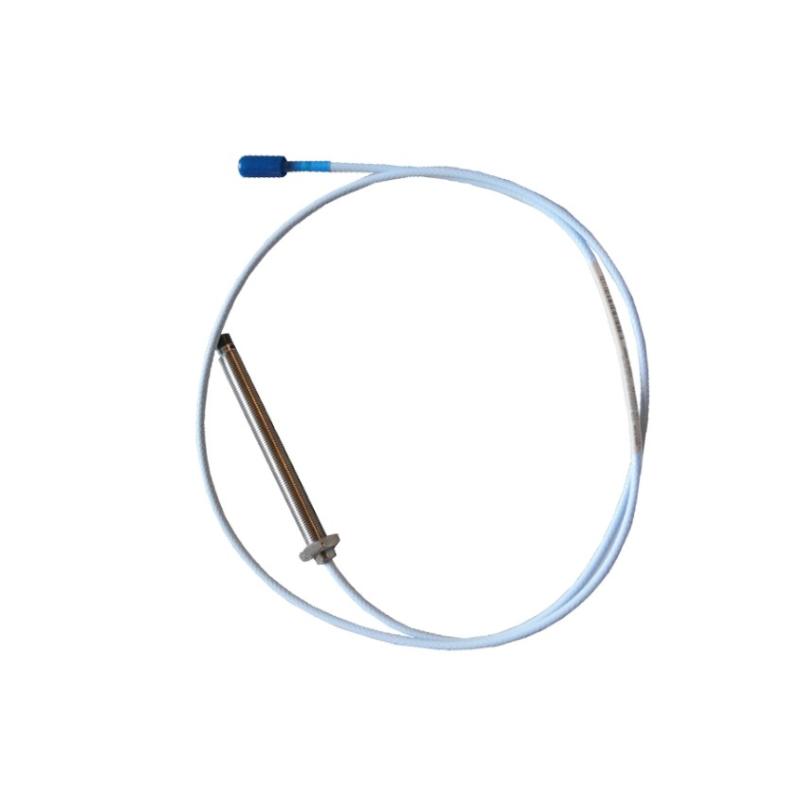

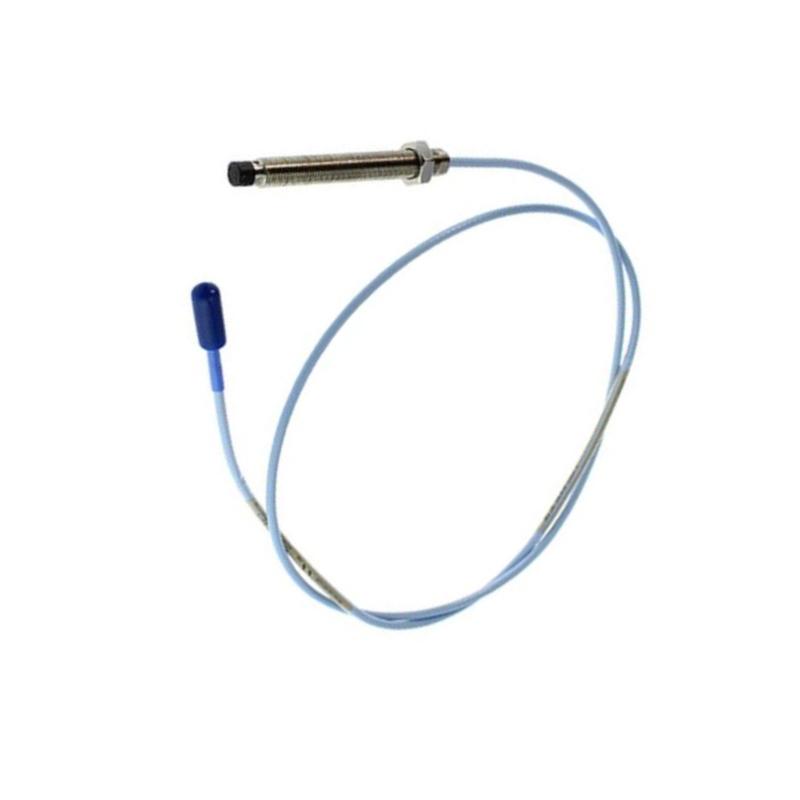

The Bently Nevada 330103-00-03-10-02-CN is a 3300 XL 8 mm eddy current proximity probe designed for high-accuracy shaft vibration and displacement monitoring in rotating machinery. It is commonly used in turbines, compressors, pumps, and other critical industrial assets where continuous condition monitoring is essential for operational safety and predictive maintenance.
This CN-suffixed configuration typically indicates compliance for specific regional requirements, while maintaining full compatibility with the standard 3300 XL transducer ecosystem.
Technical Specifications
This model follows the modular 3300 XL coding system, where each segment defines mechanical structure, cable length, and connector configuration.
| Specification Item | Details |
|---|---|
| Series | 3300 XL 8 mm Proximity Probe |
| Model | 330103-00-03-10-02-CN |
| Measurement Type | Eddy current (non-contact displacement sensing) |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 (typical 3300 XL metric configuration) |
| Case Length | ~30 mm (code “03”) |
| Cable Length | ~1.0 m (code “10”) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Linear Range | ~2.0 mm (typical 80 mil system range) |
| Sensitivity | ~7.87 V/mm (system matched with Proximitor) |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Operating Temperature | approx. -51°C to +177°C (system dependent) |
| Weight | ~0.323 kg |
Dimensions (approx.): ~81 × 50 × 64 mm (varies slightly by packaging and vendor configuration)
Recommended Related Models
To build a complete vibration monitoring chain, this probe is typically paired with:
- 330180 Proximitor Sensor Module
- 330130 Extension Cable (3300 XL 8 mm system)
- 3500/42M Vibration Monitor Module
- 3500/15 Power Supply Module
- Other 330103 variants with different cable or approval codes
These components ensure stable signal conditioning and full system integration across industrial protection architectures.
Popular Bently Nevada Models
Within the same ecosystem, these models are frequently used:
- 330103-00-03-05-02-00 (standard variant)
- 330103-00-03-10-02-00 (non-CN version, same electrical family)
- 330103-00-09-10-02-CN (compact case variant)
- 330180 Proximitor Sensor series
- 3500/44M Dynamic Vibration Monitor Module
