Introduction

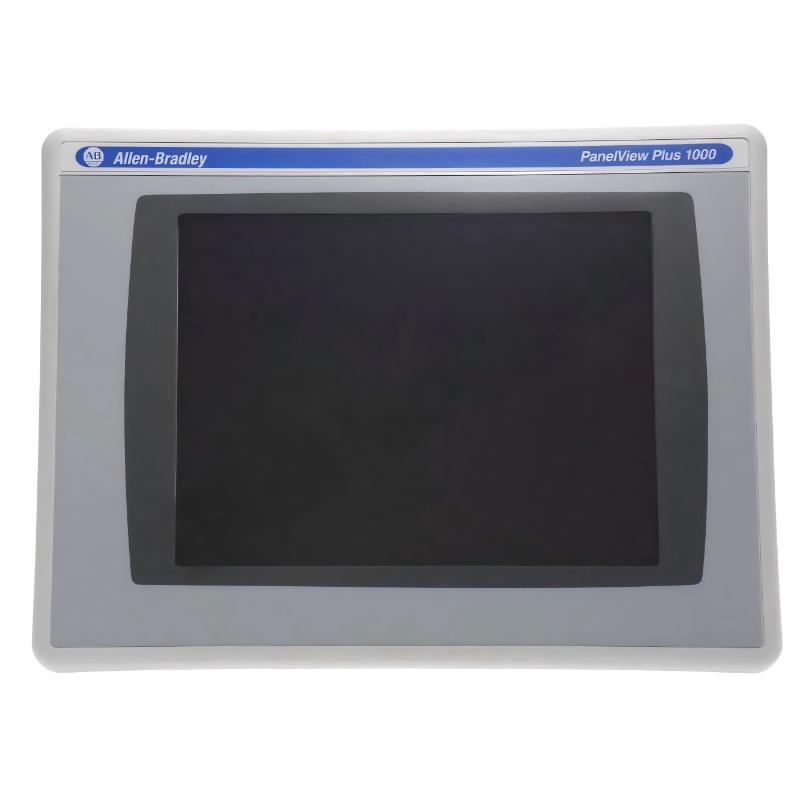

The Allen Bradley 2711P-T10C4D9 PanelView Plus 6 1000 Operator Interface provides a reliable, high-resolution platform for operators to monitor and control industrial processes. With a 10.4-inch resistive touchscreen, it offers intuitive navigation and real-time feedback.

Its integration with FactoryTalk View ME enables flexible HMI application development, while Ethernet and RS-232 connectivity allows seamless PLC integration. Rugged industrial design ensures dependable operation in challenging factory environments.

Technical Specifications

Parameter	Specification
Model	2711P-T10C4D9
Series	PanelView Plus 6
Display Size	10.4 inch
Resolution	640 × 480 SVGA
Display Type	Color TFT Resistive Touchscreen
Dimensions (W × H × D)	329 × 248 × 55 mm
Weight	2.5 kg (5.51 lb)
Power Supply	100–240V AC
Communication Ports	Ethernet, RS-232
USB Ports	2 × USB
Operating System	Windows CE 6.0
Software	FactoryTalk View ME
Protection Rating	Industrial panel-mount enclosure

Applications

The Allen Bradley 2711P-T10C4D9 PanelView Plus 6 1000 is a high-performance HMI designed for interactive operator control in industrial automation environments. Its robust design and intuitive touchscreen make it ideal for:

PLC-based manufacturing and assembly lines
Packaging and material handling automation
Process monitoring in oil, gas, and chemical industries
Power distribution control systems
Food and beverage production lines
Pharmaceutical and laboratory process automation
General factory automation requiring real-time operator feedback

This operator interface enhances process visibility, operational safety, and efficiency in industrial applications.

Advantages

10.4-inch TFT color resistive touchscreen for precise operator interaction
640 × 480 SVGA resolution ensures clear visualization of process data
Industrial-grade design suitable for demanding environments
Ethernet and RS-232 communication ports for flexible PLC integration
Dual USB ports for programming, data transfer, and peripheral support
Compatible with FactoryTalk View Machine Edition (ME) for advanced HMI development
Stable operation under vibration, temperature variations, and continuous use
Compact panel-mount design simplifies installation

Technical FAQs

What type of display does this model feature?
10.4-inch color TFT resistive touchscreen with 640 × 480 SVGA resolution.
Which PLC systems are supported?
ControlLogix and CompactLogix PLCs from Allen-Bradley.
What software is used for programming?
FactoryTalk View Machine Edition (ME).
What communication interfaces are included?
Ethernet and RS-232 ports.
Can it withstand harsh industrial conditions?
Yes, designed for vibration, dust, and continuous industrial operation.
Does it have USB connectivity?
Yes, two USB ports for data transfer and peripheral devices.
What operating system is used?
Windows CE 6.0 embedded.
Is remote monitoring possible?
Yes, with proper network configuration.
Is the touchscreen suitable for heavy industrial use?
Yes, it supports glove operation and frequent industrial use.
Is this HMI still supported by Rockwell Automation?
It is part of the legacy PanelView Plus 6 series, widely used in existing installations.
