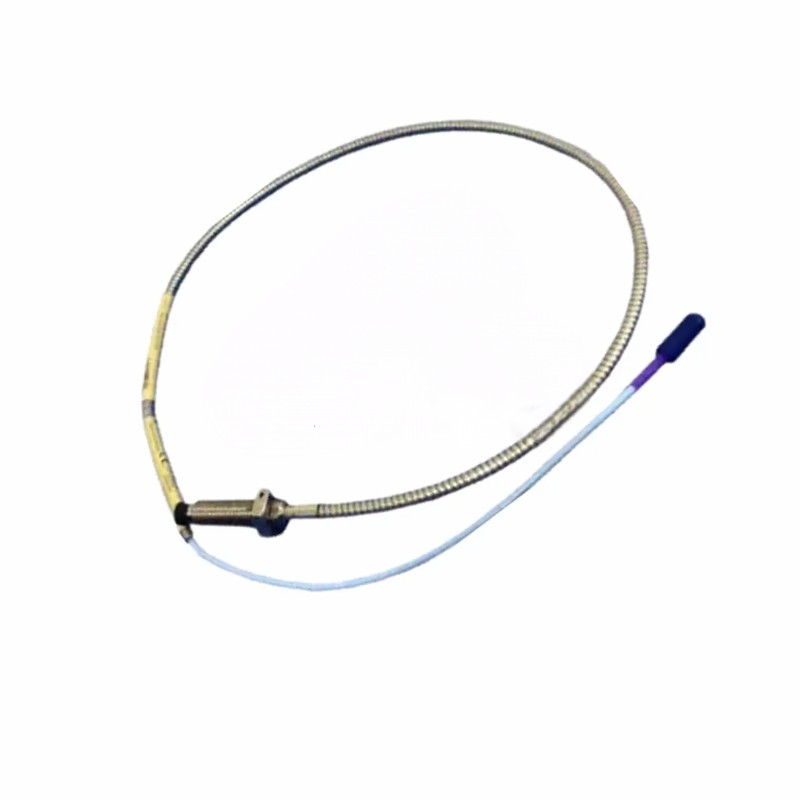

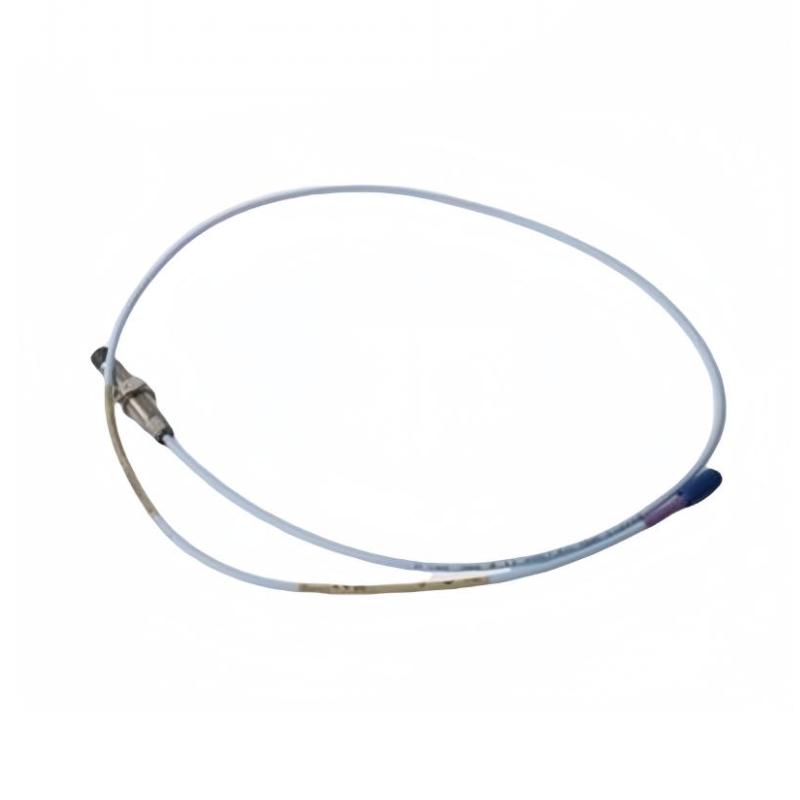

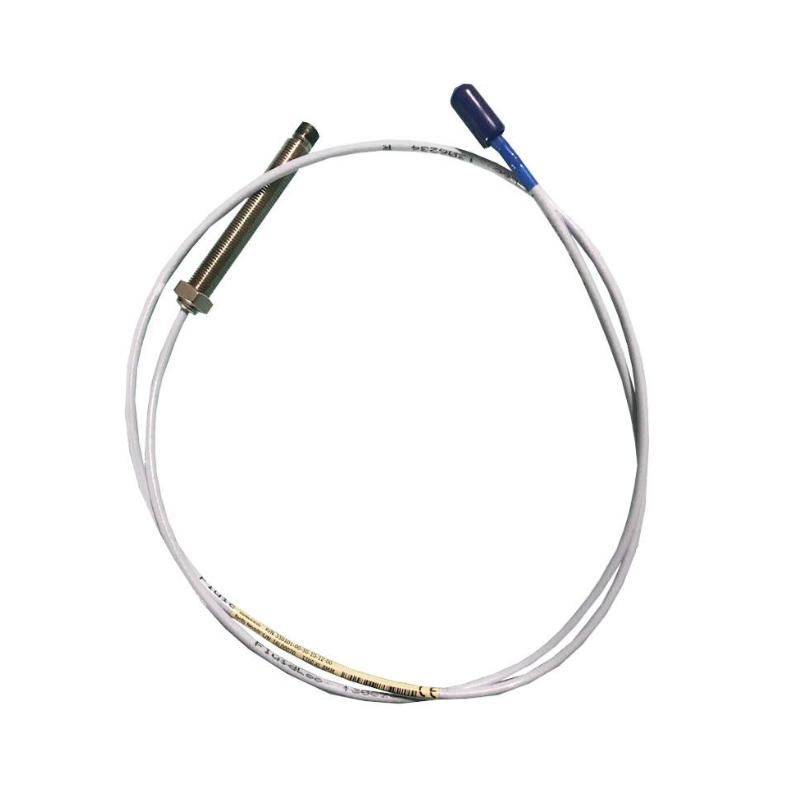

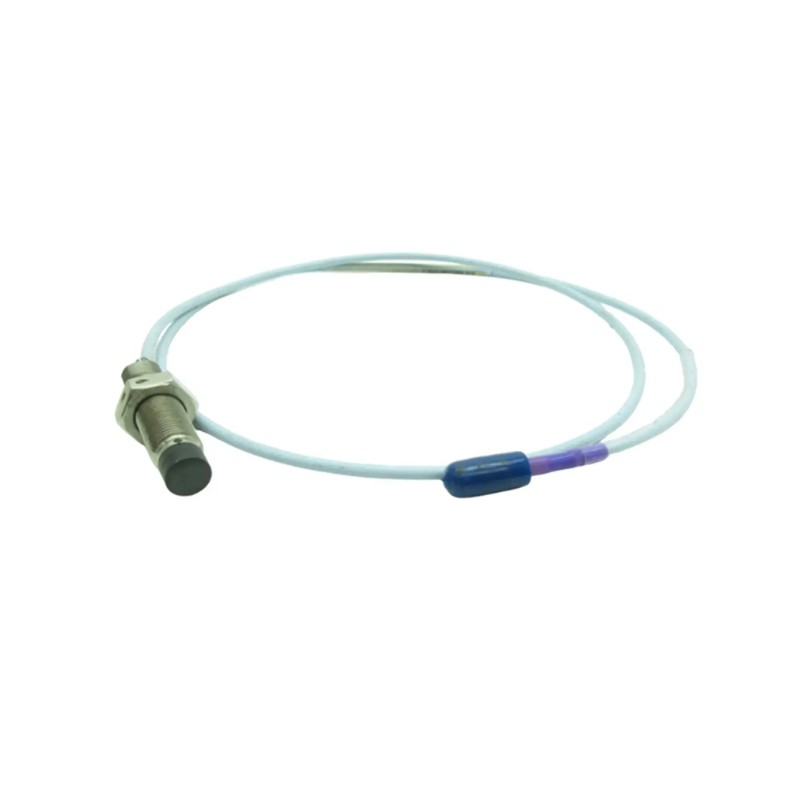

The Bently Nevada 330703-050-120-10-02-00 is an 11 mm proximity probe from the 3300 XL series used for non-contact measurement of shaft vibration and displacement in rotating machinery.
It is part of a modular eddy current proximity transducer system widely used in industrial condition monitoring and machinery protection applications. The probe is typically installed with a matching extension cable and Proximitor sensor to form a complete measurement chain for turbines, compressors, pumps, and generators.
This configuration is commonly selected for installations requiring a longer mechanical probe body (120 mm class) and flexible mounting adaptability in deeper or heavy-duty machine housings.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330703-050-120-10-02-00 |
| Product Type | 11 mm Proximity Probe |
| Measurement Type | Non-contact vibration / displacement |
| Technology | Eddy current sensing |
| System Compatibility | 3300 XL Proximitor system |
| Probe Tip Size | 11 mm |
| Output Signal | Analog displacement signal |
| Installation Type | Thread-mounted probe assembly |
| Connector System | ClickLoc industrial connector |
| Cable Configuration | Integrated probe + extension cable system |
| Material | Stainless steel probe body |
| Application | Rotating machinery monitoring systems |
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 50–120–120 mm configuration length range × 10–12 mm × 10–12 mm |
| Weight | Approx. 0.3–0.4 kg |
System Configuration
This probe is part of a standard 3300 XL proximity measurement chain:
- 3300 XL 11 mm proximity probe
- Matching extension cable
- 3300 XL Proximitor sensor
The system converts shaft motion into a proportional electrical signal used for vibration monitoring, diagnostics, and protection functions.
Recommended Related Models
| Model | Description |
|---|---|
| 330703-020-110-10-01-05 | Alternative extended configuration |
| 330703-020-100-90-02-00 | Heavy-duty long assembly variant |
| 330703-000-060-10-02-00 | Standard configuration probe |
| 330703-000-050-10-02-00 | Shorter case version |
| 3300 XL Extension Cable | Signal transmission component |
| 3300 XL Proximitor Sensor | Signal conditioning module |
