Introduction

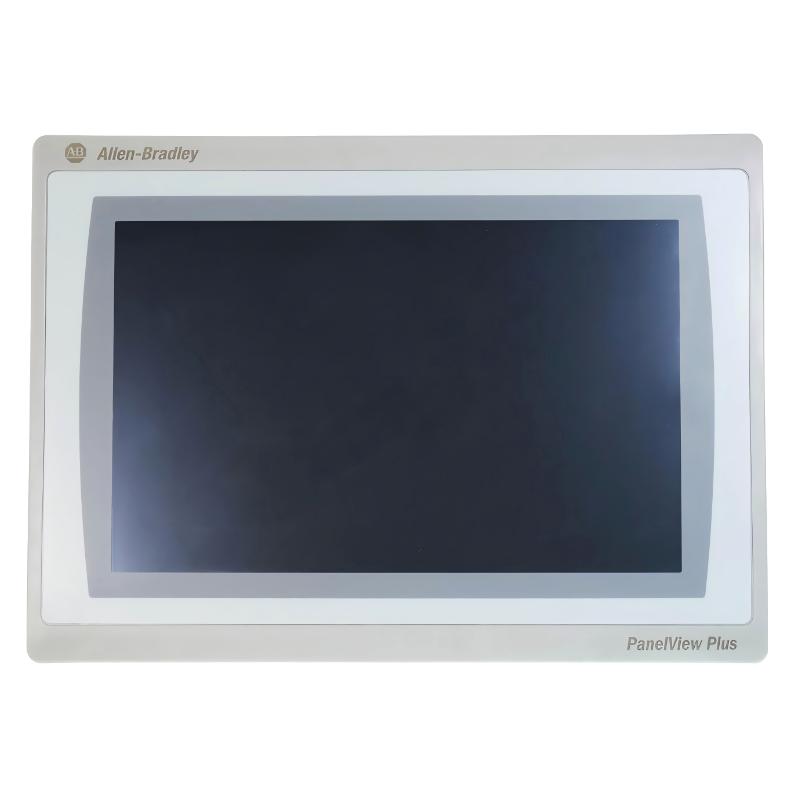

The Allen Bradley 2711P-T12W21D8S PanelView Plus 7 Operator Interface provides operators with an intuitive, widescreen platform for real-time process control and monitoring. Its 12-inch display allows clear visualization of detailed process information, making it ideal for complex industrial systems.

With FactoryTalk View ME support and flexible Ethernet connectivity, it integrates seamlessly with modern automation systems. Its lightweight and durable design make it suitable for demanding industrial environments, improving both operator experience and process efficiency.

Technical Specifications

Parameter	Specification
Model	2711P-T12W21D8S
Series	PanelView Plus 7
Display Size	12 inch Widescreen
Resolution	1280 × 800
Display Type	TFT Color Touchscreen
Dimensions (W × H × D)	340 × 246 × 56.5 mm
Weight	1.95 kg (4.29 lb)
Power Supply	24V DC
Communication Ports	Ethernet, optional serial
USB Ports	2 × USB
Operating System	Windows CE 6.0
Software	FactoryTalk View ME
Protection Rating	Industrial panel-mount enclosure

Applications

The Allen Bradley 2711P-T12W21D8S PanelView Plus 7 is a high-performance operator interface built for industrial automation applications. Its 12-inch widescreen touchscreen provides clear visualization for complex processes. Typical applications include:

Factory automation and assembly lines
PLC-based process control systems
Packaging and material handling automation
Oil, gas, and chemical process monitoring
Power distribution and utility control panels
Food and beverage production lines
Pharmaceutical and laboratory automation

This interface enhances operational efficiency, safety, and operator interaction in demanding industrial environments.

Advantages

12-inch widescreen TFT color touchscreen for wide-format process visualization
High-resolution 1280 × 800 display ensures crisp and detailed process data
Robust industrial-grade design for reliable operation in harsh environments
Multi-protocol Ethernet connectivity for seamless PLC integration
FactoryTalk View Machine Edition (ME) support for advanced HMI applications
Lightweight design at 1.95 kg for easier panel integration
Durable touchscreen supports glove operation and frequent use
Front panel protection for dust and water ingress

Technical FAQs

What display type does this HMI use?
12-inch TFT color widescreen touchscreen with 1280 × 800 resolution.
Which PLCs is it compatible with?
ControlLogix, CompactLogix, and other Allen-Bradley PLCs.
What software is used for programming?
FactoryTalk View Machine Edition (ME).
What communication interfaces are included?
Ethernet and optional serial connections depending on configuration.
Is it suitable for industrial environments?
Yes, it is designed for vibration, dust, and continuous industrial operation.
Does it have USB connectivity?
Yes, USB ports are included for programming and data transfer.
What operating system does it use?
Windows CE 6.0 embedded.
Can it support remote monitoring?
Yes, with proper network configuration.
Is the touchscreen durable for industrial use?
Yes, it supports glove operation and frequent touches.
What are its mounting options?
Panel-mount design compatible with standard industrial enclosures.
