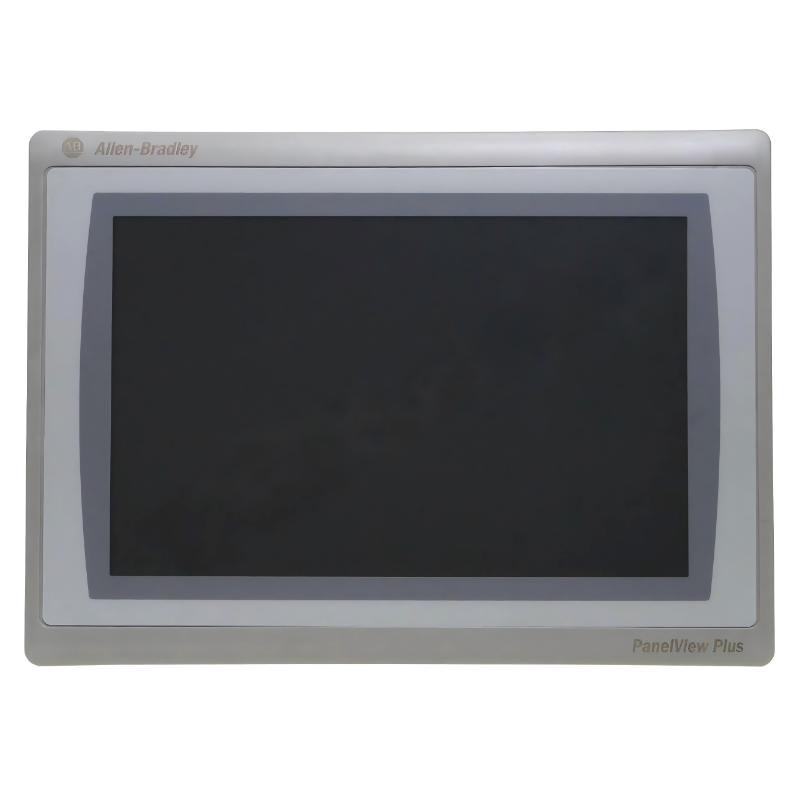

Allen Bradley 2711P-T12W22D8S PanelView Plus 7 Operator Interface

Applications

The Allen Bradley 2711P-T12W22D8S PanelView Plus 7 is designed for industrial operators who require clear visualization and precise control over complex machinery. Its widescreen interface is ideal for:

• PLC-based factory automation and assembly lines
• Process monitoring in oil, gas, and chemical plants
• Packaging and material handling systems
• Power distribution and utility monitoring panels
• Food and beverage production automation
• Pharmaceutical and laboratory process control
• General industrial machinery requiring real-time operator feedback

This HMI delivers intuitive interaction, process visibility, and operational efficiency for modern industrial environments.

Advantages

• 12-inch widescreen TFT color touchscreen for expansive process visualization
• High-resolution 1280 × 800 display ensures crisp, detailed data presentation
• Lightweight and durable design (1.95 kg) suitable for panel integration
• Multi-protocol Ethernet connectivity for seamless PLC integration
• FactoryTalk View Machine Edition (ME) support for advanced HMI applications
• Front panel protection against dust and water ingress
• Industrial-grade construction for continuous operation in demanding conditions
• Responsive touchscreen suitable for gloves and frequent use

Technical FAQs

1. What type of display is used in this model?
   12-inch TFT color widescreen touchscreen with 1280 × 800 resolution.
2. Which PLC systems are compatible?
   Allen-Bradley ControlLogix, CompactLogix, and other PLCs supporting Ethernet.
3. What software is required to configure this HMI?
   FactoryTalk View Machine Edition (ME).
4. What communication interfaces does it have?
   Ethernet and optional serial connections.
5. Is it suitable for harsh industrial environments?
   Yes, designed for vibration, dust, and continuous industrial use.
6. Does it have USB connectivity?
   Yes, dual USB ports for programming, updates, and peripheral support.
7. What operating system does it run?
   Windows CE 6.0 embedded.
8. Can it support remote monitoring?
   Yes, when networked correctly within the automation system.
9. Is the touchscreen durable for industrial use?
   Yes, suitable for glove operation and frequent touches.
10. What type of mounting does this model use?
    Standard panel-mount enclosure compatible with industrial cabinets.
