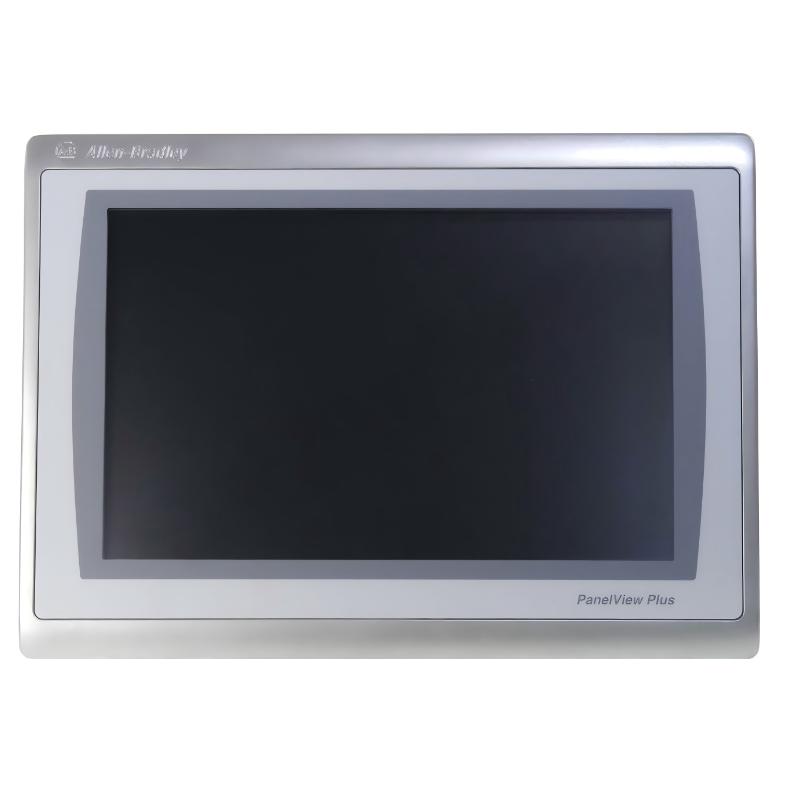

Allen Bradley 2711P-T12W22D9P PanelView Plus 7 Operator Interface

Applications

The Allen Bradley 2711P-T12W22D9P PanelView Plus 7 is designed for industrial operators requiring high-performance visualization and control. Its 12-inch widescreen interface is ideal for:

• Factory automation and assembly lines
• PLC-based process control systems
• Packaging and material handling automation
• Oil, gas, and chemical process monitoring
• Power distribution and utility control panels
• Food and beverage production lines
• Pharmaceutical and laboratory automation

This operator interface provides intuitive interaction and real-time monitoring for complex industrial systems.

Advantages

• 12-inch widescreen TFT color touchscreen for expansive process visualization
• High-resolution 1280 × 800 display ensures clear and detailed process data
• Industrial-grade design for reliable operation in demanding environments
• Multi-protocol Ethernet connectivity for seamless integration with PLCs
• Compatible with FactoryTalk View Machine Edition (ME) for advanced HMI applications
• Front panel protection against dust and water ingress
• Lightweight design (2.54 kg) for easier installation and panel integration
• Durable touchscreen suitable for gloves and frequent operation

Technical FAQs

1. What type of display does this HMI use?
   12-inch TFT color widescreen touchscreen with 1280 × 800 resolution.
2. Which PLC systems are supported?
   Allen-Bradley ControlLogix, CompactLogix, and other Ethernet-enabled PLCs.
3. What software is used to configure this HMI?
   FactoryTalk View Machine Edition (ME).
4. What communication interfaces are available?
   Ethernet and optional serial connections depending on configuration.
5. Is it suitable for harsh industrial conditions?
   Yes, it is designed to withstand vibration, dust, and continuous industrial use.
6. Does it have USB connectivity?
   Yes, dual USB ports for programming, data transfer, and peripherals.
7. What operating system does it run?
   Windows CE 6.0 embedded.
8. Can it support remote monitoring?
   Yes, with proper network configuration and integration.
9. Is the touchscreen durable for industrial use?
   Yes, supports glove operation and frequent use.
10. What type of mounting is used?
    Standard panel-mount enclosure compatible with industrial cabinets.
