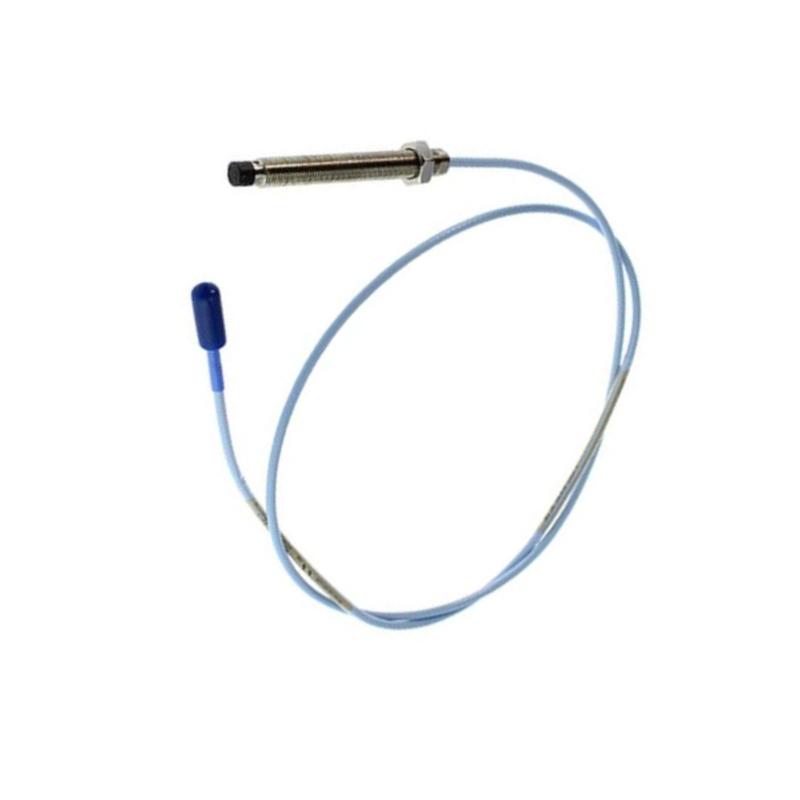

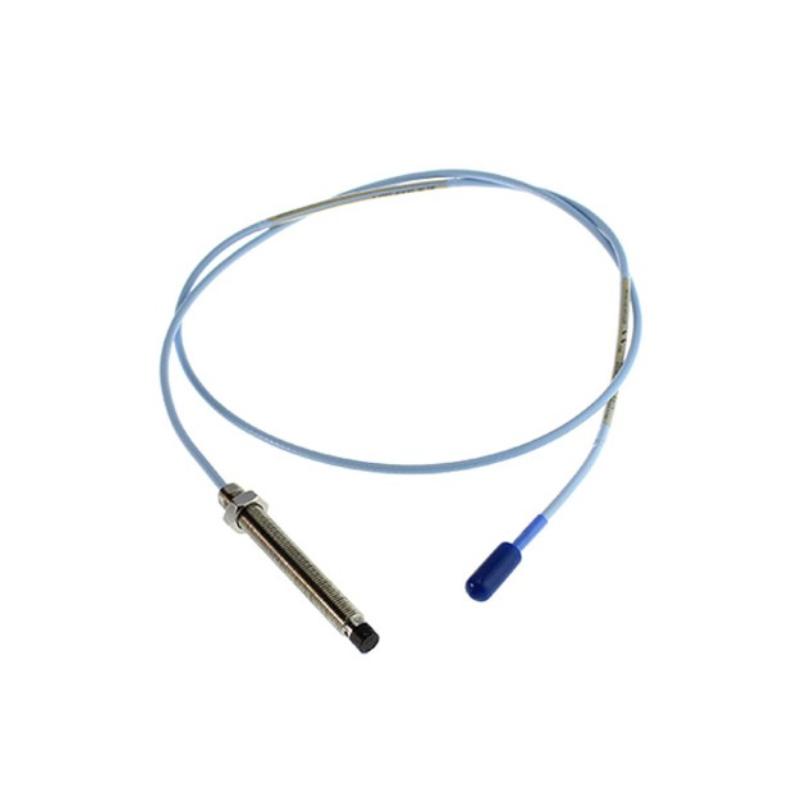

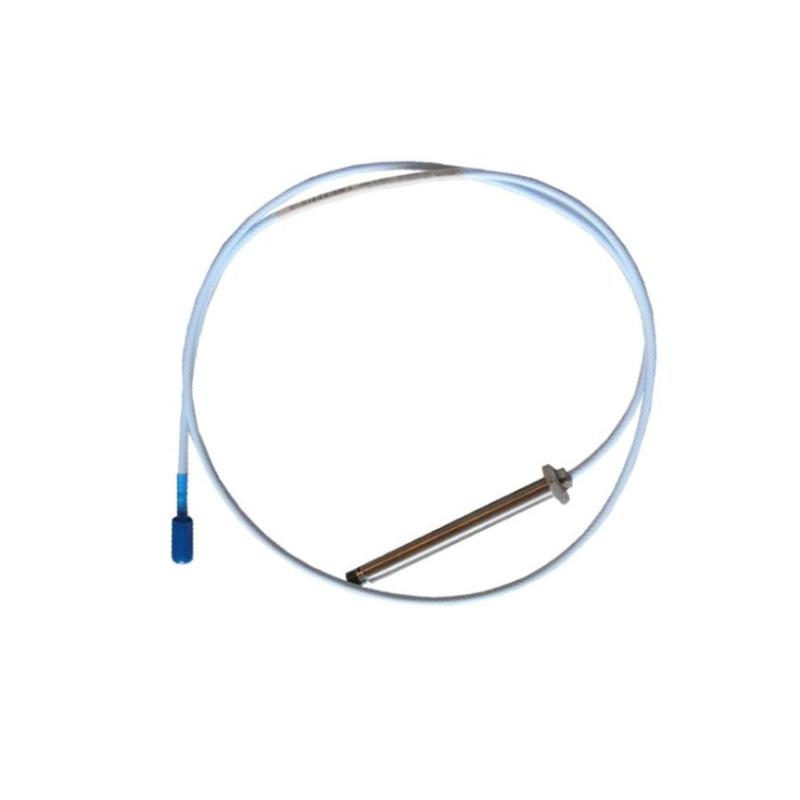

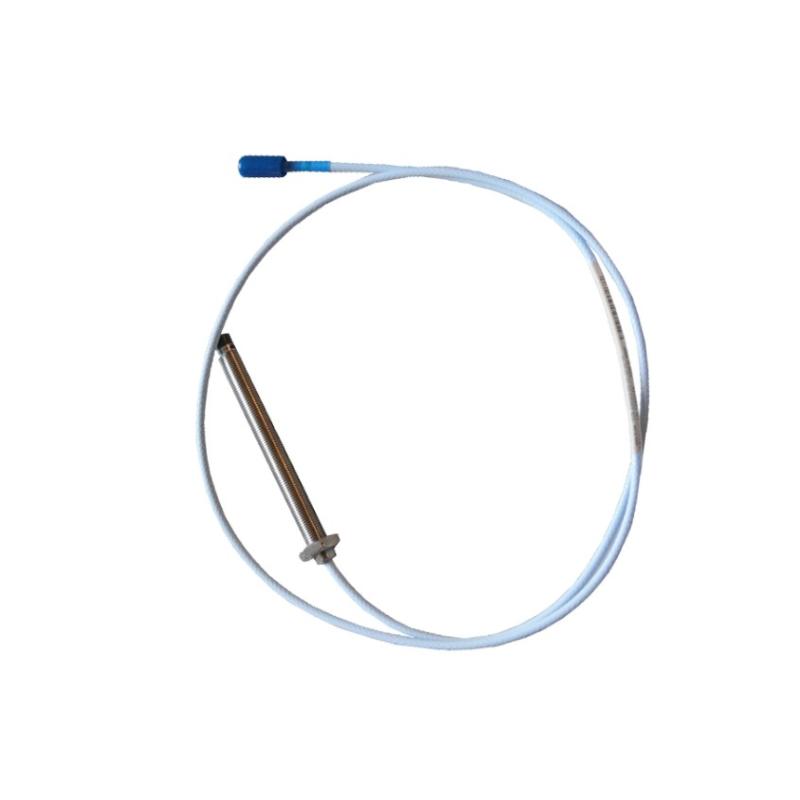

The Bently Nevada 330103-00-04-05-02-05 is a 3300 XL 8 mm eddy current proximity probe used for precise shaft vibration and position monitoring in rotating machinery. It is widely applied in turbines, compressors, pumps, and other critical industrial systems where continuous condition monitoring is essential for preventing unexpected downtime and ensuring long-term equipment reliability.
As part of the 3300 XL platform, this probe is engineered for interchangeability, stable signal output, and robust performance in harsh industrial environments.
Technical Specifications
This model is defined by the 3300 XL ordering code, where each segment represents mechanical and electrical configuration.
| Specification Item | Details |
|---|---|
| Series | 3300 XL 8 mm Proximity Probe |
| Model | 330103-00-04-05-02-05 |
| Measurement Type | Eddy current (non-contact displacement sensing) |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 (typical 3300 XL metric configuration) |
| Case Length | ~40 mm (code “04”) |
| Cable Length | ~0.5 m (code “05”) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Linear Range | ~2.0 mm (80 mil standard system range) |
| Sensitivity | ~7.87 V/mm (200 mV/mil system matched) |
| Housing Material | Stainless steel (industrial grade) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Operating Temperature | approx. -40°C to +150°C (system dependent) |
| Weight | ~0.32–0.40 kg |
Dimensions (approx.): ~100 × 50 × 30 mm to 120 × 60 × 40 mm depending on configuration and packaging ([cite: turn0search3, turn0search1])
Recommended Related Models
For a complete vibration monitoring chain, this probe is typically paired with:
- 330180 Proximitor Sensor Module
- 330130 Extension Cable (3300 XL 8 mm system)
- 3500/42M Vibration Monitor Module
- 3500/15 Power Supply Module
- Other 330103 variants with different cable lengths or approval codes
These components ensure full system compatibility and stable signal conditioning in Bently Nevada machinery protection systems.
Popular Bently Nevada Models
Within the same industrial ecosystem, commonly used alternatives include:
- 330103-00-03-05-02-05 (short cable variant)
- 330103-00-03-10-02-05 (CN/approval variant)
- 330103-00-05-50-02-05 (long cable configuration)
- 330180 Proximitor Sensor series
- 3500/44M Dynamic Vibration Monitor Module
