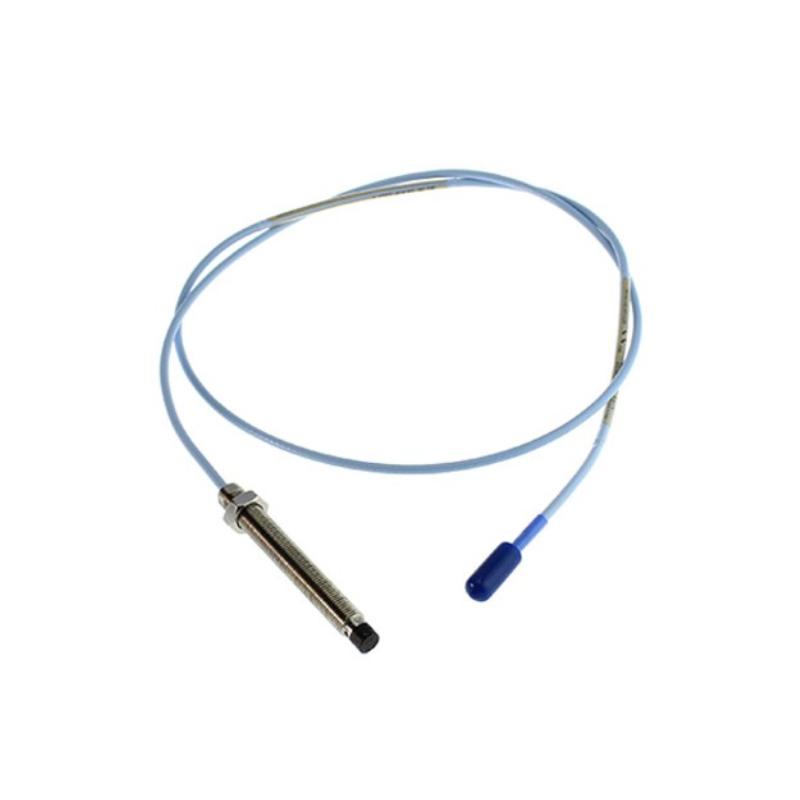

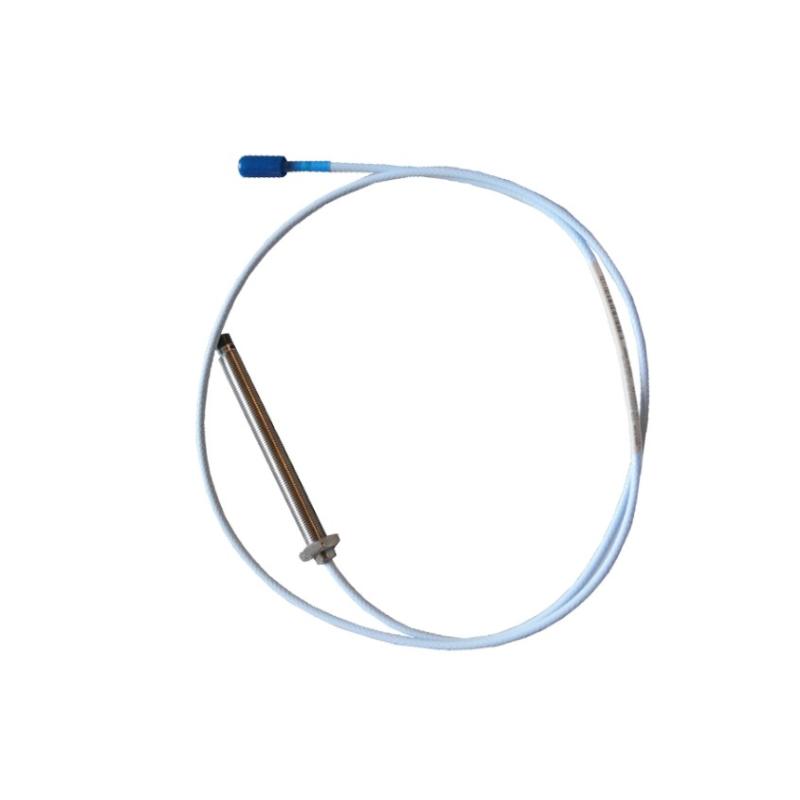

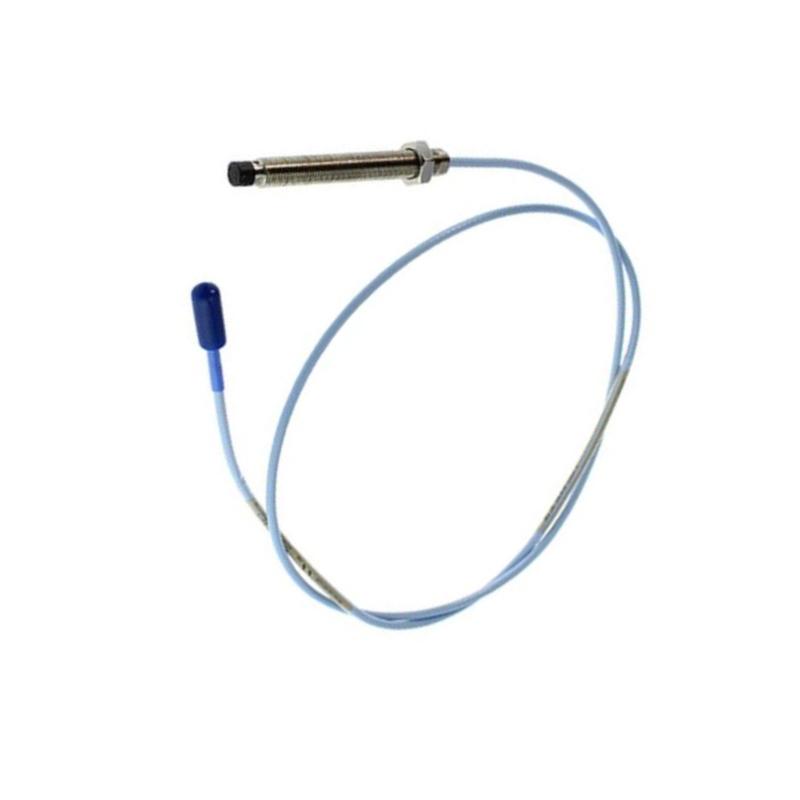

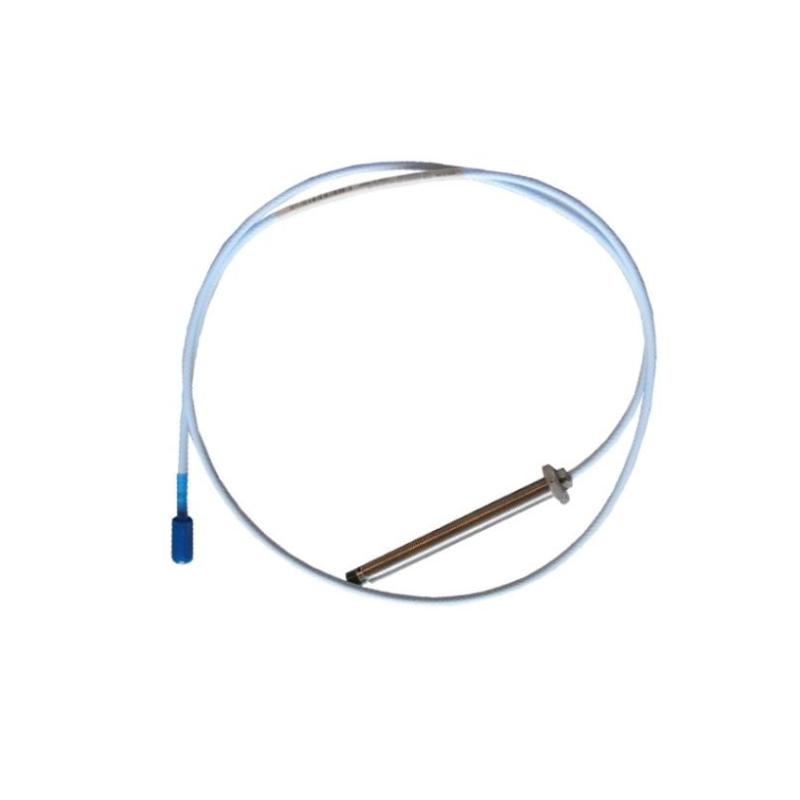

The Bently Nevada 330103-00-04-05-02-RU is a 3300 XL 8 mm eddy current proximity probe designed for high-precision shaft vibration and position measurement in rotating machinery. It is commonly deployed in turbines, compressors, pumps, and other critical industrial assets where continuous monitoring is required for machinery protection and predictive maintenance.

The “RU” suffix generally indicates a region-specific approval/configuration (often related to EAC/GOST compliance for CIS/Russian-market deployments) while maintaining full compatibility with the standard 3300 XL system architecture.

Technical Specifications

This model follows the 3300 XL modular ordering code structure, defining probe geometry, case length, cable length, and connector type.

Specification Item	Details
Series	3300 XL 8 mm Proximity Probe
Model	330103-00-04-05-02-RU
Measurement Type	Eddy current (non-contact displacement sensing)
Probe Diameter	8 mm
Thread Type	M10 × 1 (standard 3300 XL metric mounting)
Case Length	~40 mm (code “04”)
Cable Length	~0.5 m (code “05”)
Connector Type	Miniature coaxial ClickLoc™
Linear Range	~2.0 mm (typical 80 mil system range)
Sensitivity	~7.87 V/mm (system matched with Proximitor sensor)
Housing Material	Stainless steel
Probe Tip Material	PPS (Polyphenylene sulfide)
Operating Temperature	approx. -51°C to +177°C (system dependent)
Weight	~0.32–0.35 kg

Dimensions (approx.): ~100 × 50 × 30 mm (varies slightly by packaging and vendor configuration)

Recommended Related Models

To build a complete vibration monitoring system, this probe is typically paired with:

330180 Proximitor Sensor Module
330130 Extension Cable (3300 XL 8 mm system, if split configuration is used)
3500/42M Vibration Monitor Module
3500/15 Power Supply Module
Other 330103 variants with different cable lengths or approval codes

These components ensure stable signal conditioning and full compatibility within Bently Nevada machinery protection systems.

Popular Bently Nevada Models

Within the same ecosystem, commonly used alternatives include:

330103-00-03-05-02-05 (short cable configuration)
330103-00-03-50-02-05 (5 m cable version)
330103-00-04-05-02-05 (standard non-RU variant)
330180 Proximitor Sensor series
3500/44M Dynamic Vibration Monitor Module

Applications

This probe is designed for continuous monitoring of critical rotating machinery in industrial environments:

Gas turbine shaft vibration monitoring
Steam turbine radial and axial displacement measurement
Centrifugal compressor condition monitoring
Pump cavitation and misalignment detection
Gearbox vibration diagnostics
Oil & gas rotating equipment protection systems
Power generation predictive maintenance platforms

It helps detect early-stage mechanical issues such as imbalance, shaft misalignment, and bearing wear before they escalate into major failures.

Advantages

Why this model is widely used in industrial condition monitoring:

High interchangeability within the 3300 XL platform
Stable eddy current signal output for long-term accuracy
Rugged stainless steel construction for harsh environments
ClickLoc connector reduces installation time and wiring errors
Strong resistance to vibration, EMI, and industrial noise
Compatible with API 670-compliant monitoring systems
Designed for continuous 24/7 predictive maintenance operation

Technical FAQs

1. What does the “RU” suffix mean?
It typically indicates region-specific approvals or configuration for Russian/CIS markets while remaining functionally identical within the 3300 XL family.

2. What is the main function of this probe?
It measures shaft vibration and displacement using eddy current sensing.

3. Is it compatible with other 3300 XL components?
Yes, it is fully compatible within the Bently Nevada 3300 XL system.

4. What industries use it?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.

5. What is the measurement principle?
Non-contact eddy current displacement measurement between probe tip and conductive surface.

6. What is the cable length?
This configuration uses an integrated ~0.5 m cable.

7. Can it operate in harsh environments?
Yes, it is designed for high temperature, vibration, and industrial contamination resistance.

8. Does it require calibration during installation?
No individual calibration is required when used with a matched Proximitor system.

9. What is the expected service life?
Typically over 10 years depending on operating conditions and maintenance practices.

10. Why is the 3300 XL system widely used?
Because it provides standardized accuracy, modular interchangeability, and proven reliability in critical rotating machinery monitoring systems.
