Introduction

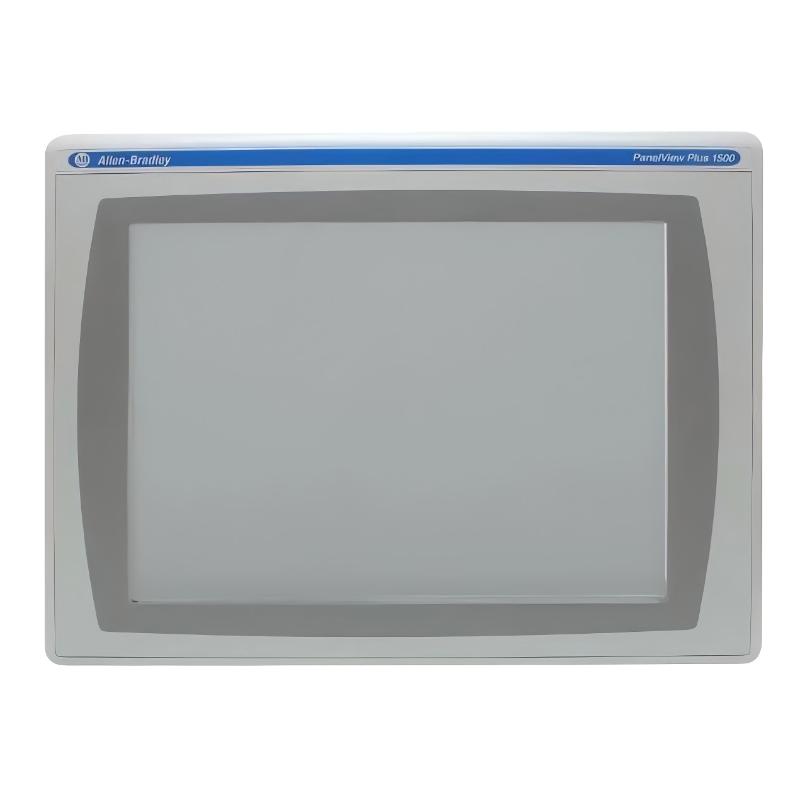

The Allen Bradley 2711P-T15C4D8 PanelView Plus 6 1500 Operator Interface provides operators with a large, high-resolution workspace for real-time process monitoring and control. Its 15-inch touchscreen ensures detailed visualization of process data, trends, and alarms.

Integrated with FactoryTalk View ME and compatible with Allen-Bradley PLCs, it enables efficient operator interaction and control over complex automation systems. Rugged design and responsive touchscreen ensure reliable operation in demanding industrial environments.

Technical Specifications

Parameter	Specification
Model	2711P-T15C4D8
Series	PanelView Plus 6
Display Size	15 inch
Resolution	1024 × 768
Display Type	TFT Color Resistive Touchscreen
Dimensions (W × H × D)	416 × 330 × 65 mm
Weight	4.2 kg (9.26 lb)
Power Supply	100–240V AC
Communication Ports	Ethernet, RS-232
USB Ports	2 × USB
Operating System	Windows CE 6.0
Software	FactoryTalk View ME
Protection Rating	Industrial panel-mount enclosure

Applications

The Allen Bradley 2711P-T15C4D8 PanelView Plus 6 1500 is a 15-inch operator interface designed for advanced industrial automation systems. Its large display and high-resolution touchscreen make it suitable for:

PLC-based factory automation and production lines
Process monitoring in chemical, oil, and gas industries
Packaging, material handling, and conveyor systems
Power distribution and utility monitoring panels
Food and beverage manufacturing automation
Pharmaceutical and laboratory process control
Industrial machinery requiring detailed operator visualization

This HMI ensures operators have clear, real-time visibility of critical process data, enhancing efficiency and safety.

Advantages

15-inch TFT color resistive touchscreen for high-detail process visualization
High-resolution 1024 × 768 display ensures accurate presentation of complex data
Robust industrial-grade construction for reliable operation in harsh environments
Ethernet and RS-232 communication ports for flexible PLC integration
Compatible with FactoryTalk View Machine Edition (ME) for advanced HMI applications
Front panel protection against dust and water ingress
Durable touchscreen suitable for glove operation and frequent use
Weight optimized at 4.2 kg for large-screen panel integration

Technical FAQs

What type of display does this HMI use?
15-inch TFT color resistive touchscreen with 1024 × 768 resolution.
Which PLC systems are compatible?
Allen-Bradley ControlLogix, CompactLogix, and other RS-232/Ethernet-enabled PLCs.
What software is used to program this interface?
FactoryTalk View Machine Edition (ME).
What communication interfaces are included?
Ethernet and RS-232 ports.
Is it suitable for harsh industrial conditions?
Yes, designed for vibration, dust, and continuous industrial operation.
Does it have USB connectivity?
Yes, USB ports are available for programming and data transfer.
What operating system does it use?
Windows CE 6.0 embedded.
Can it support remote monitoring?
Yes, when connected to a proper network setup.
Is the touchscreen durable for industrial use?
Yes, designed for frequent touches and glove operation.
What type of mounting does this model use?
Standard panel-mount compatible with industrial enclosures.
