Introduction

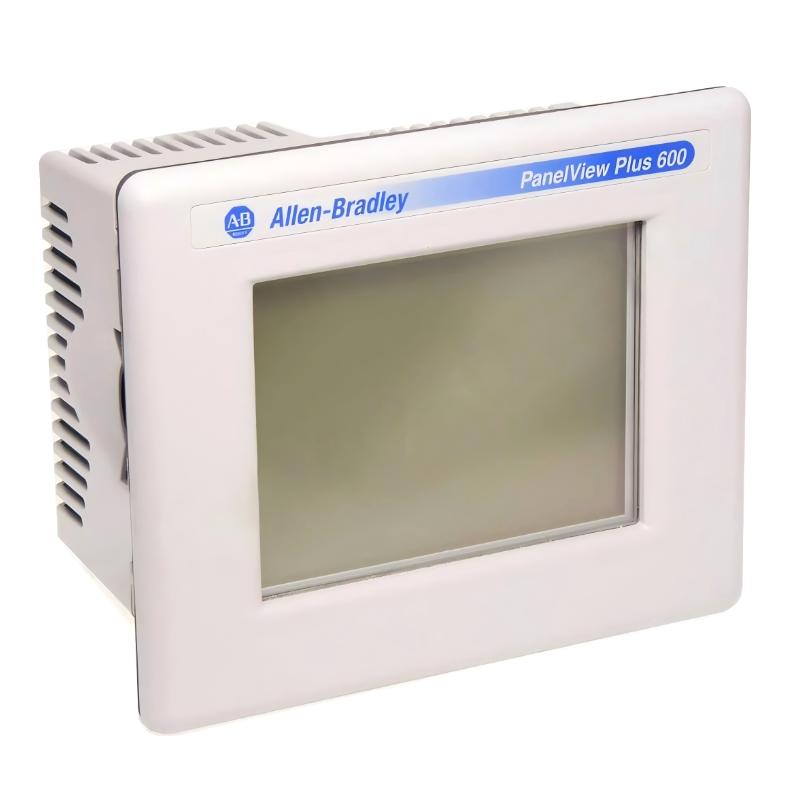

The Allen Bradley 2711P-T6C20A PanelView Plus 600 is part of Rockwell Automation’s widely used legacy HMI family, offering dependable operator interaction for small to mid-scale industrial systems. With its compact 5.7-inch display, it provides essential process visualization and control without the complexity of larger interfaces.

Despite being a legacy platform, it remains widely installed in industrial environments due to its stability, ease of integration, and long-term reliability in machine-level control applications.

Technical Specifications

Parameter	Specification
Model	2711P-T6C20A
Series	PanelView Plus 600
Display Size	5.7 inch
Resolution	320 × 240
Display Type	Color TFT Resistive Touchscreen
Dimensions	185 × 152 × 98 mm
Weight	0.789 kg (1.74 lb)
Power Supply	85–264V AC
Communication	Ethernet / RS-232 / Remote I/O (varies by configuration)
USB Ports	Yes
Software	FactoryTalk View ME
Mounting	Panel mount
Status	Legacy / Discontinued

Applications

The Allen Bradley 2711P-T6C20A PanelView Plus 600 is a compact human-machine interface (HMI) designed for basic industrial visualization and machine-level control. It is widely used in smaller automation systems where reliable operator interaction is required without complex widescreen visualization.

Typical applications include:

Small-scale manufacturing and assembly machines
Packaging equipment and simple conveyor systems
Pump and motor control panels
HVAC and building automation systems
Standalone PLC-controlled equipment
Utility and auxiliary industrial subsystems

This model is especially suitable for cost-sensitive automation projects that still require robust industrial reliability.

Advantages

Compact 5.7-inch color TFT touchscreen for simple and clear operator control
320 × 240 resolution optimized for essential process visualization
Industrial-grade enclosure designed for harsh environments
Supports multiple industrial communication protocols (depending on configuration)
Compatible with FactoryTalk View Machine Edition (ME)
Reliable resistive touchscreen for glove-friendly operation
Front-panel protection suitable for industrial panel mounting
Proven long lifecycle design used in legacy automation systems

Technical FAQs

What display size does this model use?
It uses a 5.7-inch color TFT display.
What is the resolution?
The display resolution is 320 × 240 pixels.
Which software is used for configuration?
FactoryTalk View Machine Edition (ME).
What PLC systems is it compatible with?
Commonly used with Allen-Bradley ControlLogix and CompactLogix systems via Ethernet or legacy communication depending on module.
Is it touchscreen only or keypad-based?
This model is touchscreen-based HMI.
What power supply does it require?
Typically 85–264V AC industrial power input.
Does it support USB connectivity?
Yes, USB ports are included for data transfer and maintenance.
Is it suitable for harsh environments?
Yes, it is designed for industrial vibration and temperature variations.
Is this model still in production?
It belongs to the PanelView Plus 600 series and is generally considered legacy/discontinued.
Can it be used in modern automation systems?
Yes, but it is typically deployed in existing systems rather than new designs.
