Introduction

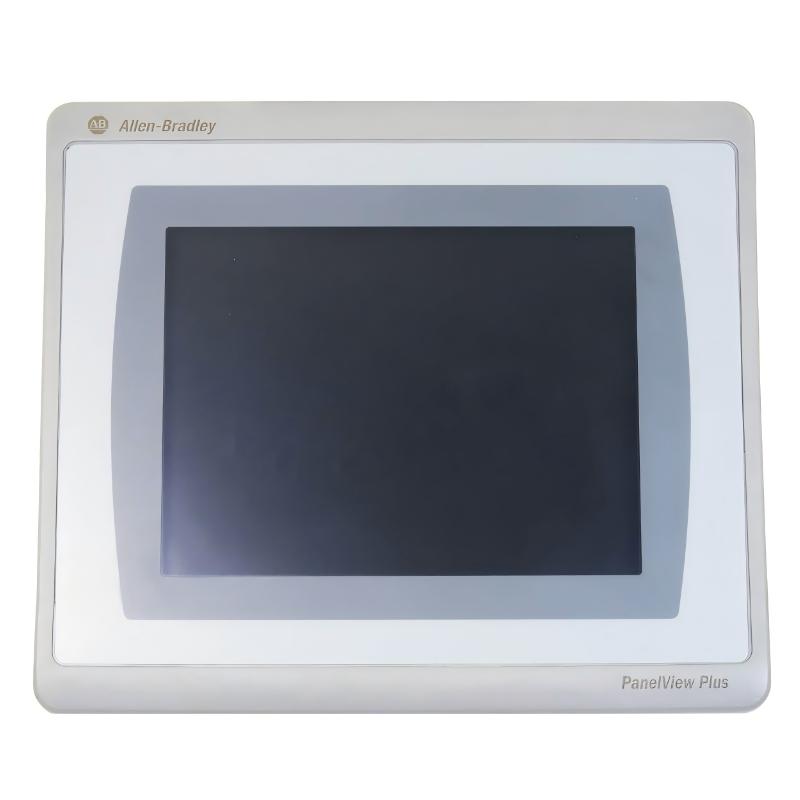

The Allen Bradley 2711P-T6C21D8S PanelView Plus 7 Operator Interface combines compact design with responsive touchscreen operation, making it perfect for small automation systems. Its 6-inch display offers clear visualization of process data, alarms, and trends.

Designed for industrial reliability and compatibility with FactoryTalk View ME, this HMI is ideal for operators needing compact, efficient control in tight panel spaces. It supports modern communication standards, ensuring easy integration with Allen-Bradley PLCs.

Technical Specifications

Parameter	Specification
Model	2711P-T6C21D8S
Series	PanelView Plus 7
Display Size	6 inch
Resolution	480 × 272
Display Type	TFT Color Resistive Touchscreen
Dimensions (W × H × D)	176 × 152 × 56.5 mm
Weight	0.7 kg (1.54 lb)
Power Supply	24V DC
Communication	Ethernet / Optional Serial
USB Ports	Yes
Software	FactoryTalk View ME
Mounting	Panel mount

Applications

The Allen Bradley 2711P-T6C21D8S PanelView Plus 7 is a compact 6-inch HMI designed for machine-level automation, providing a high-quality operator interface in a small form factor. It is ideal for:

Small-scale manufacturing and assembly machines
Packaging and conveyor systems
Pump, fan, and motor control panels
HVAC and building automation systems
Laboratory or test bench automation
Standalone PLC-controlled machinery

Its compact size allows installation in tight panels while maintaining reliable visualization and control.

Advantages

6-inch TFT resistive touchscreen for responsive operator input
480 × 272 resolution for clear and simple process visualization
Lightweight design at 0.7 kg (1.54 lb) for easy panel mounting
Industrial-grade construction for vibration and dust resistance
FactoryTalk View Machine Edition (ME) compatible
Supports Ethernet and optional serial communication
Glove-friendly resistive touch for harsh industrial environments
Compact design suitable for retrofit or space-constrained installations

Technical FAQs

What type of display does this model use?
6-inch TFT color resistive touchscreen.
What is the screen resolution?
480 × 272 pixels.
Which software is required for programming?
FactoryTalk View Machine Edition (ME).
Is it suitable for industrial environments?
Yes, it is built for vibration, dust, and continuous operation.
What communication interfaces are available?
Ethernet and optional serial ports.
What power supply does it require?
24V DC.
Is it touchscreen only or does it have a keypad?
Resistive touchscreen only; no keypad.
Can it integrate with modern PLC systems?
Yes, via compatible Allen-Bradley PLCs and network protocols.
Is this model still produced?
Yes, it is part of the PanelView Plus 7 series, suitable for small HMIs.
What is the D8S suffix indicate?
It specifies the hardware and firmware revision of the PanelView Plus 7 6-inch model.
