Introduction

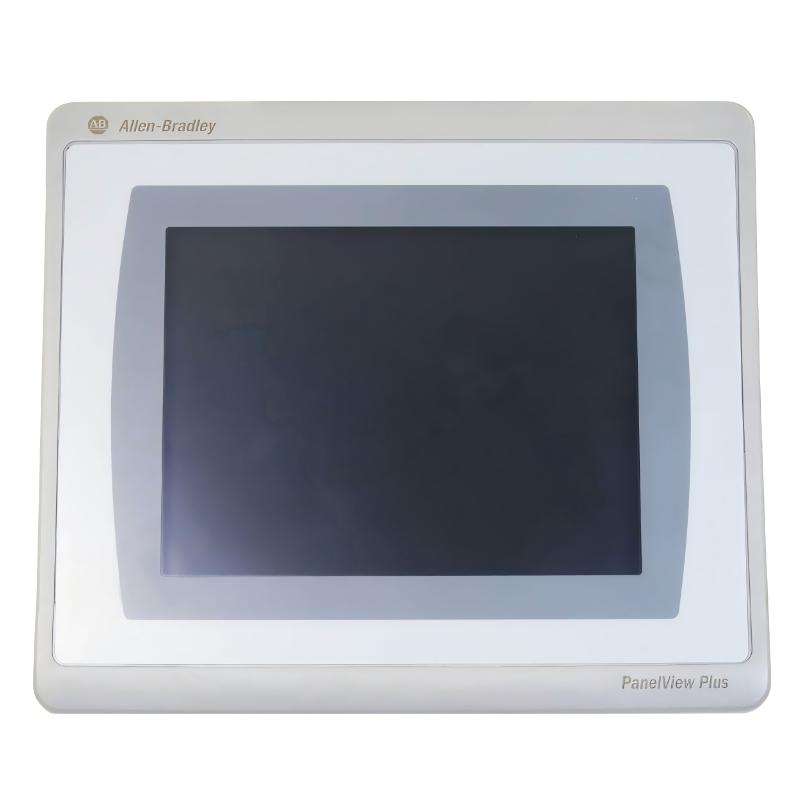

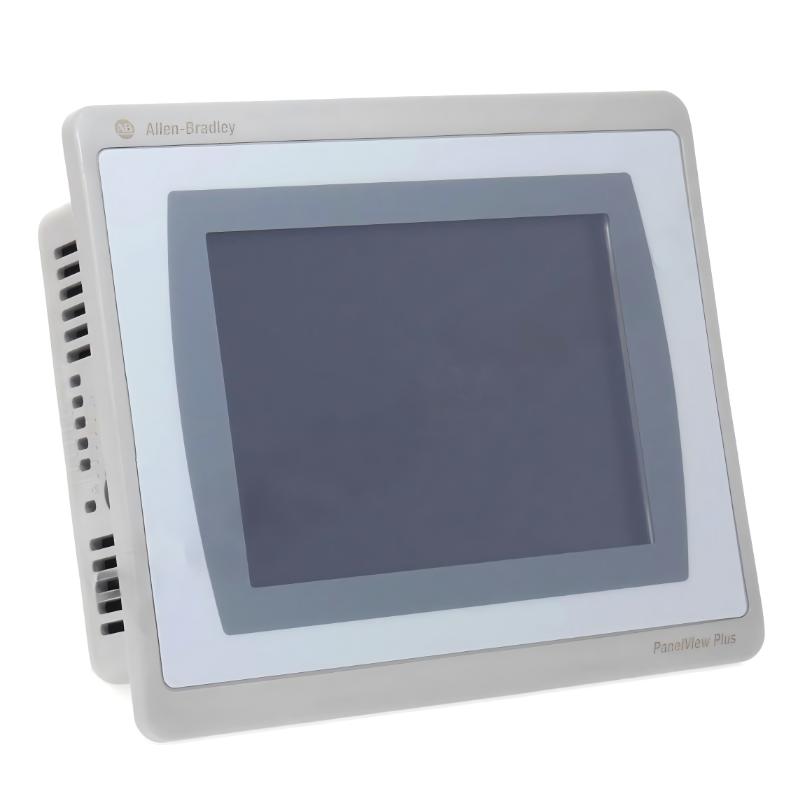

The Allen Bradley 2711P-T6C22D8S PanelView Plus 7 Operator Interface provides a compact yet reliable HMI solution for small automation systems. Its 6-inch resistive touchscreen enables precise operator interaction and clear visualization of process data, trends, and alarms.

Built for industrial environments and integrated with FactoryTalk View ME, this HMI ensures efficient operation in tight panel spaces and is fully compatible with Allen-Bradley PLCs for modern industrial automation applications.

Technical Specifications

Parameter	Specification
Model	2711P-T6C22D8S
Series	PanelView Plus 7
Display Size	6 inch
Resolution	480 × 272
Display Type	TFT Color Resistive Touchscreen
Dimensions (W × H × D)	176 × 152 × 56.5 mm
Weight	0.7 kg (1.54 lb)
Power Supply	24V DC

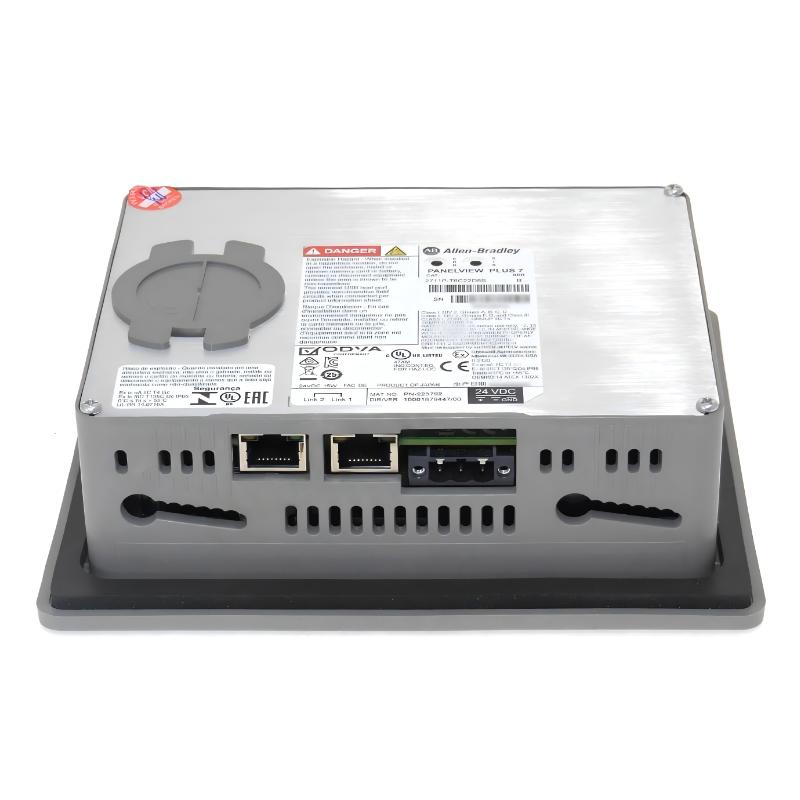

Communication	Ethernet / Optional Serial
USB Ports	Yes
Software	FactoryTalk View ME
Mounting	Panel mount

Applications

The Allen Bradley 2711P-T6C22D8S PanelView Plus 7 is a compact 6-inch HMI designed for small to mid-sized automation systems. Its reliable touchscreen interface provides operators with clear visibility and control, making it ideal for:

Small manufacturing machines and assembly lines
Packaging, conveyor, and material handling systems
Pump, fan, and motor control panels
HVAC and building automation applications
Laboratory or test bench automation
Standalone PLC-controlled machinery

Its compact footprint allows installation in tight control panels while maintaining high usability.

Advantages

6-inch TFT resistive touchscreen for accurate operator input
480 × 272 resolution ensures clear visualization of essential data
Lightweight design at 0.7 kg (1.54 lb) for easy panel mounting
Industrial-grade construction for durability in vibration, dust, and temperature fluctuations
Compatible with FactoryTalk View Machine Edition (ME) for streamlined programming
Ethernet and optional serial communications for flexible PLC integration
Glove-friendly resistive touchscreen suitable for harsh industrial environments
Compact and versatile, ideal for retrofit projects or space-limited installations

Technical FAQs

What type of display does this HMI use?
6-inch color TFT resistive touchscreen.
What is the screen resolution?
480 × 272 pixels.
Which software is used to configure it?
FactoryTalk View Machine Edition (ME).
Is it suitable for industrial environments?
Yes, designed for vibration, dust, and continuous operation.
What communication interfaces are available?
Ethernet and optional serial ports.
What power supply does it require?
24V DC.
Does it have a physical keypad?
No, it is a resistive touchscreen interface only.
Can it connect to modern Allen-Bradley PLCs?
Yes, through Ethernet or serial communication protocols.
Is this model still in production?
Yes, as part of the PanelView Plus 7 series, suitable for compact HMIs.
What does the D8S suffix indicate?
It refers to a specific hardware and firmware revision within the PanelView Plus 7 6-inch platform.
