Introduction

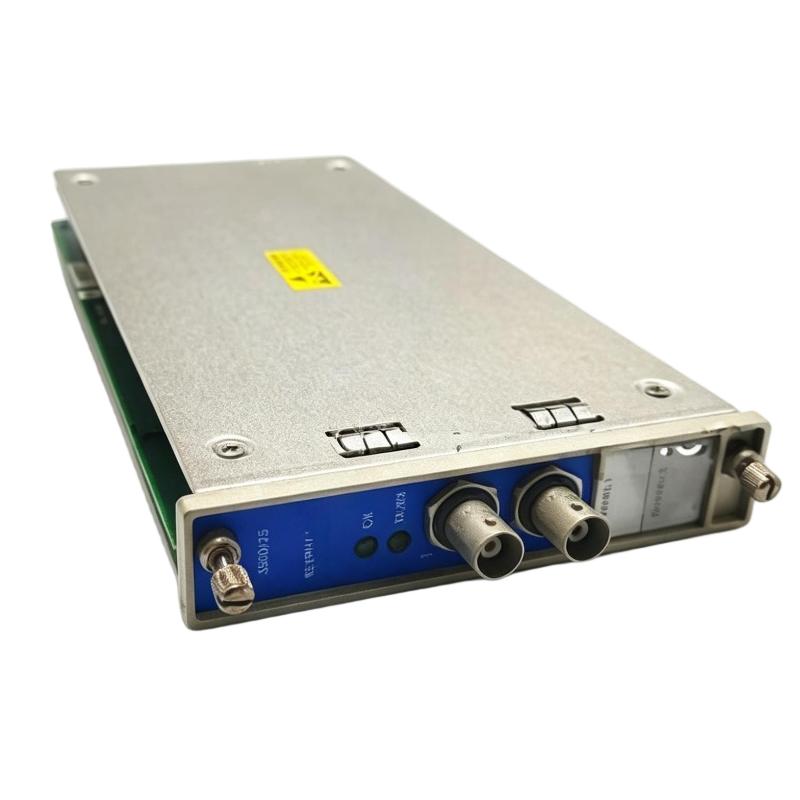

The Bently Nevada 3500/25-02-01-01 Enhanced Bond Phase Module is a high-precision interface module designed to deliver accurate phase measurements in industrial rotating machinery applications. Its advanced isolation and signal conditioning features ensure reliable keyphasor input and phase alignment, even in high-EMI and high-vibration environments. Compact and rack-optimized, this module supports multi-channel configurations and enhances the overall stability and performance of the 3500 monitoring system.

Technical Specifications

Parameter	Specification
Dimensions	119.9 mm × 24.4 mm × 256.5 mm
Weight	0.34 kg
Function Type	Enhanced Bond Phase / Keyphasor Interface
Signal Isolation	Electrical isolation between field and system
Operating Temperature	-20°C to +60°C
Mounting Type	Bently Nevada 3500/25 rack-mounted module
Material	Industrial-grade electronic housing

Recommended Related Models

Model	Product Name
3500/25 125800-02	Isolation Keyer I/O Module
3500/22M 138607-01	TDI Communication Interface Module
3500/42M 135489-01	Proximitor Monitoring Module
3500/15-03-03-00	Power Module

Popular Related Models

Model	Product Name
3500/25-02-01-02	Bond Phase Module Standard
3500/25-02-01-03	Bond Phase Module Extended
3500/05 131151-01	Half-height Blank Front Panel Cover
3500/32 125712-01	Relay Output Control Module

Applications

• Provides precise phase reference measurement for rotating machinery.
Supports turbine, compressor, and generator monitoring in critical industrial environments.

• Interfaces with keyphasor and vibration monitoring modules.
Ensures accurate phase alignment for fault detection and machinery diagnostics.

• Enhances signal integrity in high-vibration, high-EMI conditions.
Prevents measurement errors caused by electrical noise or ground loops.

• Integrates seamlessly into 3500/25 rack configurations.
Maintains reliable operation in multi-channel monitoring systems.

Key Advantages

• Improves machinery fault detection accuracy.
Delivers precise phase measurements to support predictive maintenance strategies.

• Provides electrical isolation between field inputs and system electronics.
Reduces interference and ensures clean signal transmission.

• Compact, rack-optimized design.
Easily integrates into standard 3500/25 rack systems with minimal footprint.

• High reliability for continuous industrial operation.
Engineered for durability in vibration-heavy and high-temperature environments.

• Supports seamless system scalability.
Compatible with multiple modules for advanced monitoring configurations.

Technical FAQs

1. What is the primary function of this module?
It provides enhanced phase measurement and keyphasor interface for accurate machinery monitoring.

2. Is it compatible with all 3500 rack systems?
Yes, it is designed for integration with standard Bently Nevada 3500/25 series racks.

3. Does it provide signal isolation?
Yes, it electrically isolates inputs to reduce noise and prevent ground loop issues.

4. Can it be installed while the rack is powered?
Yes, it supports safe hot-swap installation under proper procedures.

5. Does it process vibration signals directly?
No, it focuses on phase measurement and keyphasor input; vibration signals are handled by other modules.

6. Is it affected by high EMI or vibration environments?
No, it is designed to maintain stable performance in industrial electrical and mechanical conditions.

7. Does it require grounding?
Proper rack grounding is recommended for optimal noise suppression.

8. Can it be used in multi-module configurations?
Yes, it is fully compatible with other 3500/25 modules for multi-channel systems.

9. Is any regular calibration needed?
No routine calibration is required under normal operating conditions.

10. How does it enhance system reliability?
By providing clean phase signals and isolation, it reduces the risk of signal-related errors and improves monitoring consistency.
