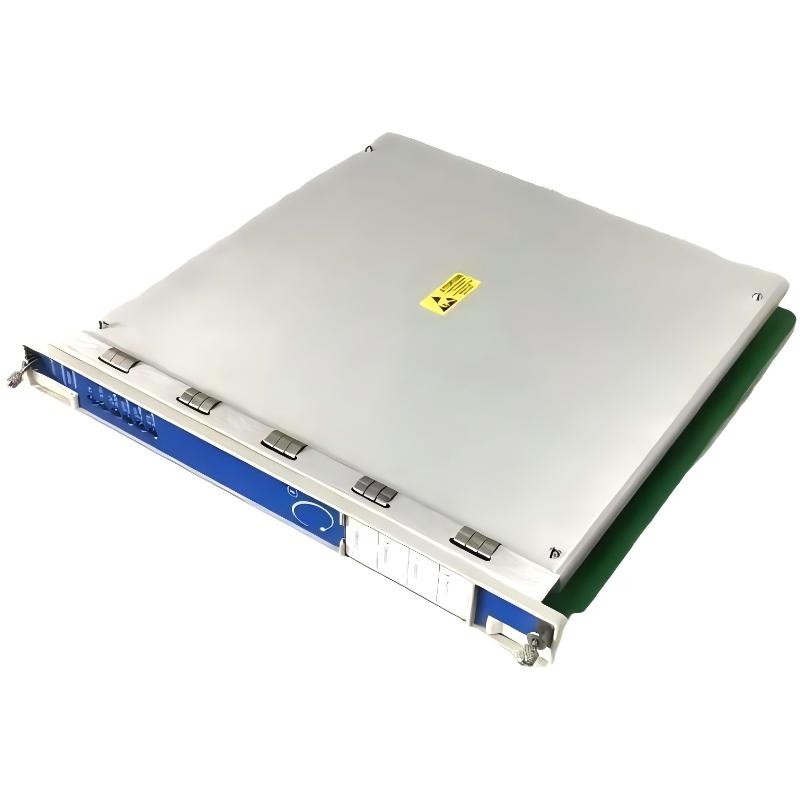

Bently Nevada 3500/32-01-01 149986-02+125720-01 4-channel Relay Control Module

Applications

• Provides relay outputs for Bently Nevada 3500 monitoring systems.
Controls alarms, shutdowns, and other protective actions in rotating machinery applications.

• Interfaces with turbine, compressor, and generator monitoring modules.
Enables automated response to vibration, speed, or phase deviations.

• Supports multi-channel relay configurations.
Allows independent control of up to four output channels for flexible system design.

• Integrates into 3500/32 rack systems.
Maintains reliability and seamless communication with other 3500 series modules.

Key Advantages

• Ensures rapid response for protective actions.
Reduces risk of machinery damage due to abnormal conditions.

• Four independent channels for flexible control.
Supports complex alarm and shutdown schemes in industrial applications.

• Compact, rack-optimized design.
Fits efficiently in standard 3500/32 racks while maintaining airflow and accessibility.

• High reliability in continuous industrial operation.
Engineered to withstand vibration, temperature variations, and electrical noise.

• Simplified installation and maintenance.
Clear labeling and tool-free mounting reduce system downtime.

Technical FAQs

1. How many relay channels does this module support?
It supports four independent relay output channels for versatile control applications.

2. Can it operate while the rack is powered?
Yes, it supports safe hot-swap installation under proper industrial procedures.

3. Is it compatible with all 3500 rack systems?
Yes, it is designed for integration with standard Bently Nevada 3500/32 series racks.

4. Does it require external configuration?
No external configuration is required for standard operation within supported systems.

5. Can the relays handle high-current loads?
They are designed for typical alarm and shutdown loads; consult specifications for maximum current ratings.

6. Is grounding required?
Proper rack grounding is recommended to ensure reliable relay operation and signal integrity.

7. Can it be used in high-vibration or high-EMI environments?
Yes, it is engineered for industrial vibration and electrical noise conditions.

8. Does it affect vibration or phase measurement accuracy?
No, it only provides relay outputs and does not interfere with monitoring signals.

9. Is any routine maintenance required?
Minimal maintenance is needed; periodic inspection and visual checks are sufficient.

10. Can it interface with multi-channel monitoring systems?
Yes, it integrates seamlessly with multiple 3500 modules for complex system control.
