Introduction

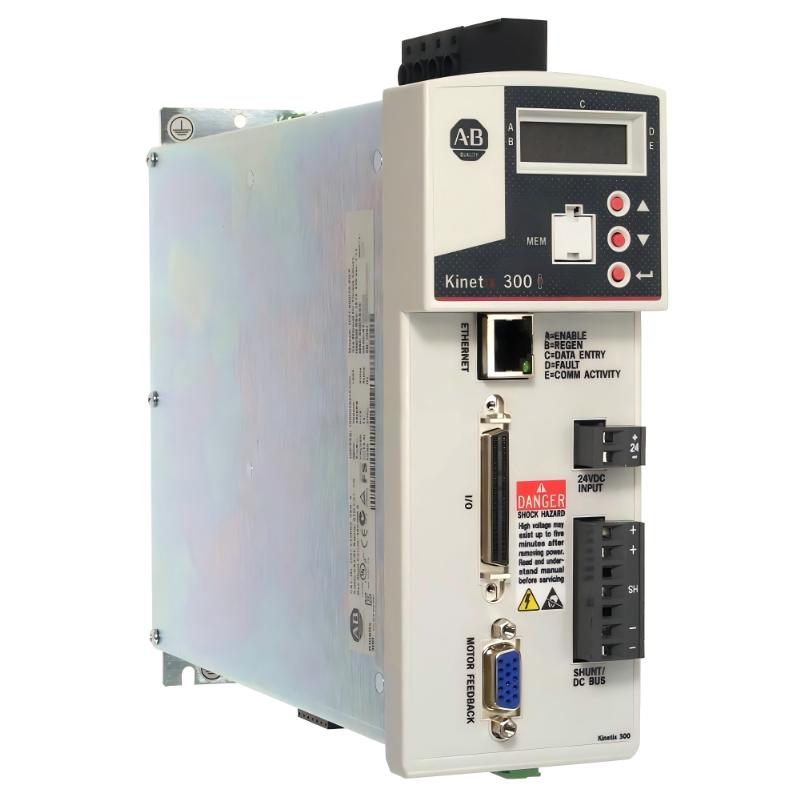

The Allen Bradley 2097-V33PR6 Kinetix 300 EtherNet/IP Index Servo Controller is a high-performance motion control device engineered for precision automation. With EtherNet/IP connectivity and support for multi-axis coordination, it enables accurate, repeatable indexing and positioning for a wide range of industrial applications. Its compact, robust design ensures reliability in harsh environments, while simplified configuration and remote diagnostics streamline installation and maintenance.

Technical Specifications

Parameter	Specification
Dimensions	229.6 mm × 61.7 mm × 190 mm
Weight	1.9 kg
Communication	EtherNet/IP
Function	Index Servo Controller
Operating Temperature	0°C to +55°C
Mounting Type	Panel-mounted / DIN rail-compatible
Material	Industrial-grade metal and polymer housing

Recommended Related Models

Model	Product Name
2097-AC04-M01	Kinetix 300 Servo Drive
2094-BC01-M01	Kinetix 5500 Servo Drive
1756-L71	ControlLogix 5571 PLC
2097-BM02	Kinetix 300 Motion Adapter Module

Popular Related Models

Model	Product Name
2097-V33PR4	Kinetix 300 Index Servo Controller Variant
2097-BC01	Kinetix 300 Servo Drive, Standard
2097-AC04	Kinetix 300 Servo Drive, Advanced
2097-BM01	Kinetix 300 Motion Bus Adapter

Applications

• Provides high-performance indexing control for Kinetix 300 servo systems.
Enables precise motion control in packaging, material handling, and assembly lines.

• Interfaces with EtherNet/IP networks.
Supports real-time communication and synchronization across distributed automation systems.

• Coordinates multiple servo axes.
Optimizes complex motion profiles for conveyors, pick-and-place machines, and robotic systems.

• Integrates with Allen-Bradley ControlLogix and CompactLogix platforms.
Ensures seamless automation integration and scalable machine design.

Key Advantages

• High-precision motion control.
Delivers smooth, repeatable positioning for critical automation tasks.

• EtherNet/IP connectivity.
Supports high-speed data transfer and remote diagnostics.

• Compact and robust design.
Fits easily into standard automation cabinets while withstanding industrial vibration and temperature ranges.

• Flexible multi-axis coordination.
Enables synchronization of multiple servos for complex machine movements.

• Simplified configuration and maintenance.
Integrated tools and clear labeling reduce setup time and facilitate troubleshooting.

Technical FAQs

1. Is this controller compatible with all Kinetix 300 servo motors?
Yes, it is designed to work with Kinetix 300 series servo motors and drives.

2. Can it be networked over EtherNet/IP?
Yes, it fully supports EtherNet/IP for real-time communication and control.

3. How many axes can it control simultaneously?
It supports multi-axis coordination depending on the machine configuration and servo modules connected.

4. Does it require external power supplies?
It requires standard industrial DC power as specified in the installation manual.

5. Can it operate in high-vibration environments?
Yes, the unit is engineered for reliable operation in industrial automation settings.

6. Is remote monitoring supported?
Yes, EtherNet/IP connectivity allows remote diagnostics and monitoring via connected PLC or HMIs.

7. Can it be mounted in standard control panels?
Yes, its compact form factor allows convenient installation in standard industrial cabinets.

8. Does it support safety features or integrated limits?
Yes, it integrates with system safety logic to enforce safe operation of servo axes.

9. Is routine maintenance required?
Minimal maintenance is needed; periodic inspection and cleaning of connectors are recommended.

10. Can it handle complex motion profiles?
Yes, it supports sophisticated indexing, positioning, and multi-axis coordination for complex machinery operations.
