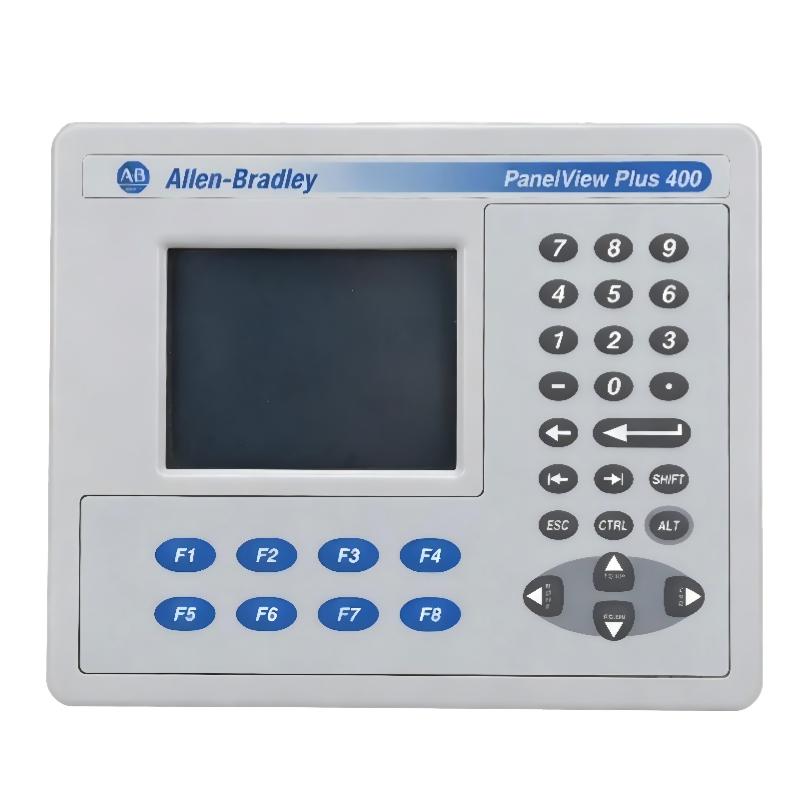

Allen Bradley 2711P-B4C5D8 PanelView Plus 6 400 Operator Interface

Applications

• Provides operator-level visualization and control for compact industrial machines.
Commonly used in packaging equipment, small-scale process systems, and factory automation stations.

• Enables real-time monitoring of PLC-controlled processes.
Displays alarms, machine status, and production data for fast operator response.

• Supports integration with Allen-Bradley ControlLogix and CompactLogix systems.
Allows seamless HMI-to-PLC communication in industrial control networks.

• Used in space-constrained control panels.
Ideal for machines requiring a compact yet full-featured operator interface.

Key Advantages

• Compact 3.5-inch industrial color display.
Delivers clear process visualization in a small footprint design.

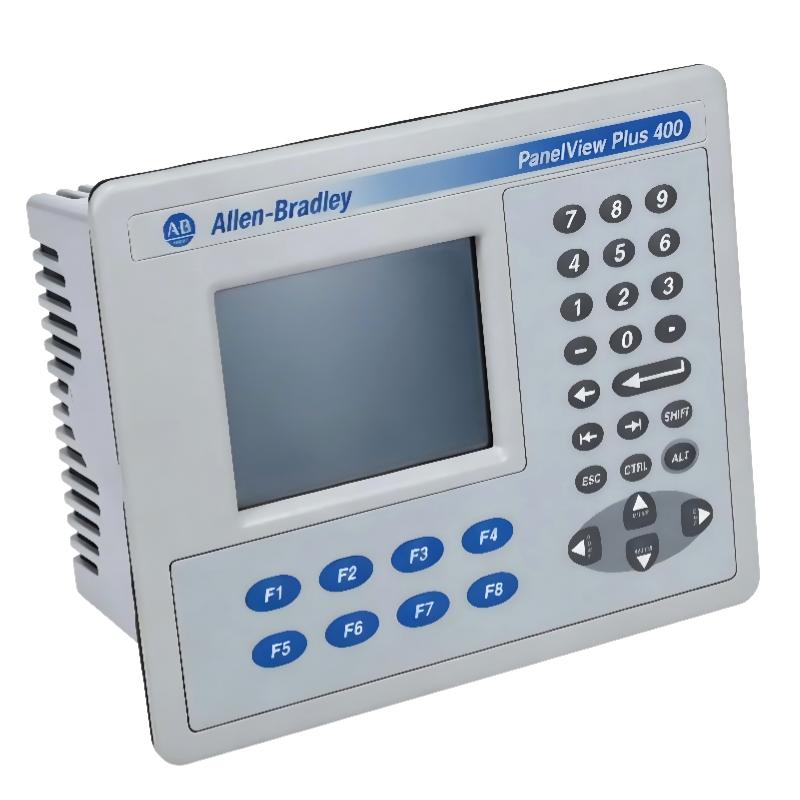

• Dual input method (touchscreen + keypad).
Improves usability in harsh environments or glove-required operations.

• Reliable industrial-grade construction.
Designed for vibration resistance, temperature variation, and electrical noise immunity.

• Flexible communication support.
Typically supports Ethernet/serial-based PLC integration depending on configuration.

• Proven PanelView Plus 6 platform stability.
Widely deployed in legacy and existing industrial automation systems.

Technical FAQs

1. Does this PanelView Plus 6 400 support Ethernet communication?
Yes, it supports Ethernet communication depending on installed communication module and configuration.

2. Can it be connected to ControlLogix PLC systems?
Yes, it is compatible with ControlLogix and CompactLogix PLC platforms.

3. Does it support both touchscreen and keypad operation?
Yes, it supports combined touchscreen and keypad input for flexible operation.

4. Is this model still in production?
No, it is a discontinued legacy model but still widely used in installed systems.

5. Can it run FactoryTalk View ME applications?
Yes, it supports FactoryTalk View Machine Edition runtime applications.

6. Is it suitable for harsh industrial environments?
Yes, it is designed for industrial environments with vibration, dust, and electrical noise.

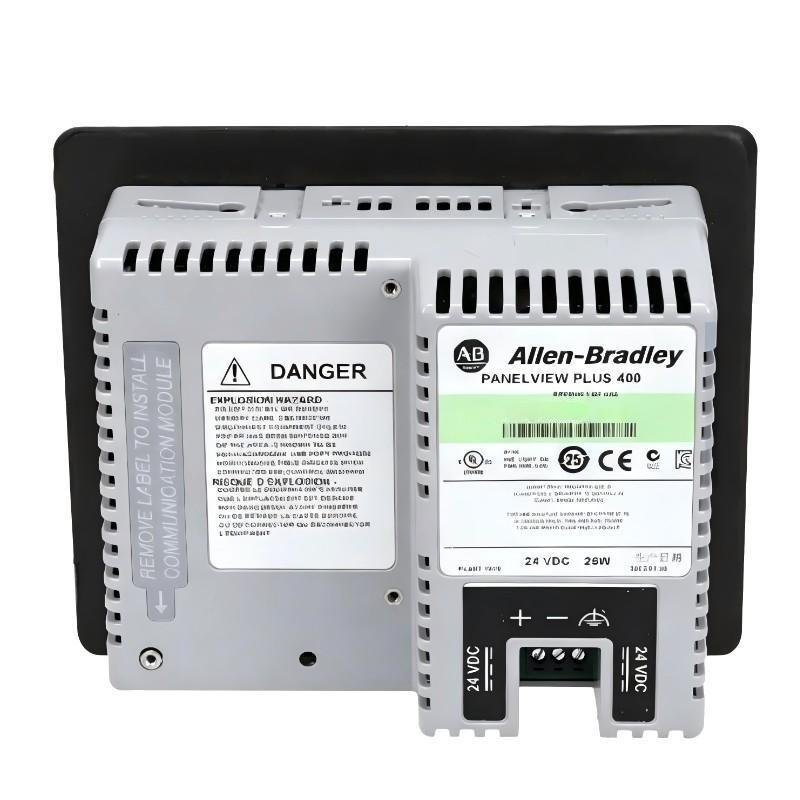

7. Does it require external power supply?
Yes, it operates on standard industrial DC power supplied through the control panel.

8. Can it be panel-mounted in standard enclosures?
Yes, it is designed for standard industrial panel mounting installations.

9. Does it support remote diagnostics?
Yes, when networked via Ethernet, it supports remote monitoring and troubleshooting.

10. What is the main limitation of this model today?
It is a legacy HMI with limited lifecycle support compared to newer PanelView Plus 7 series.
