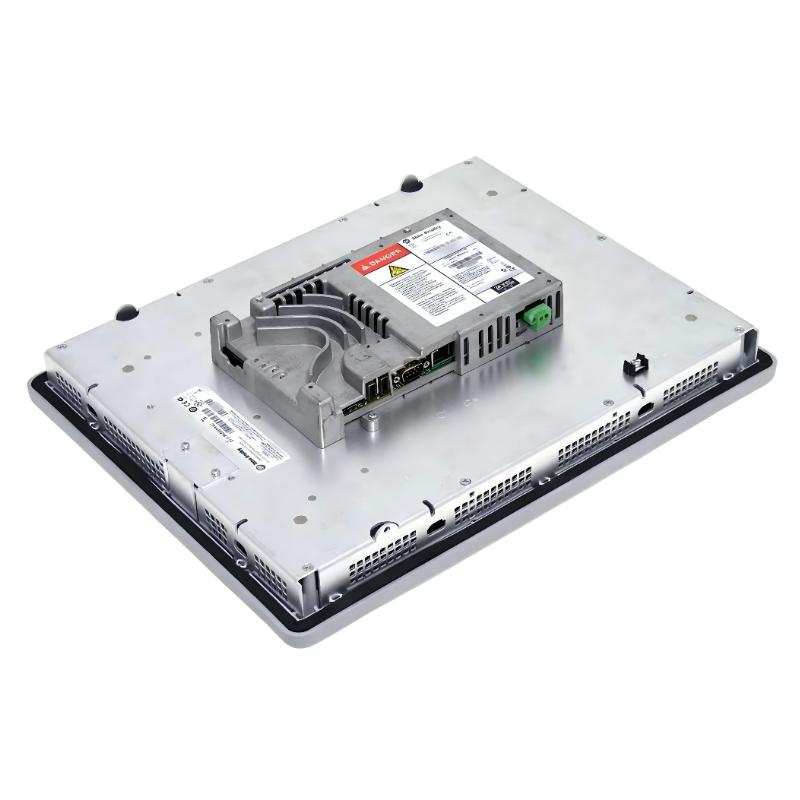

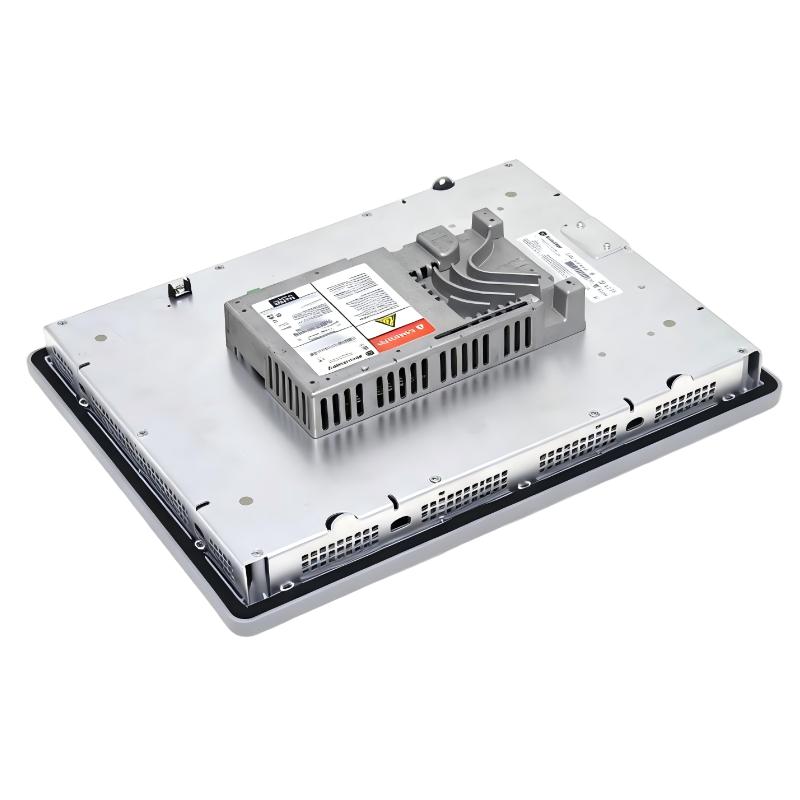

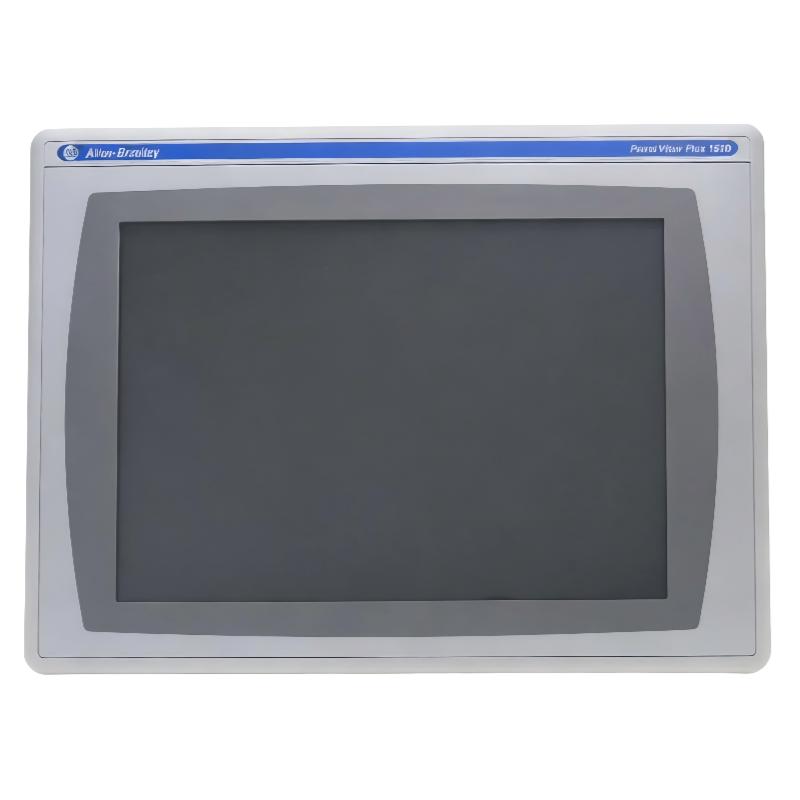

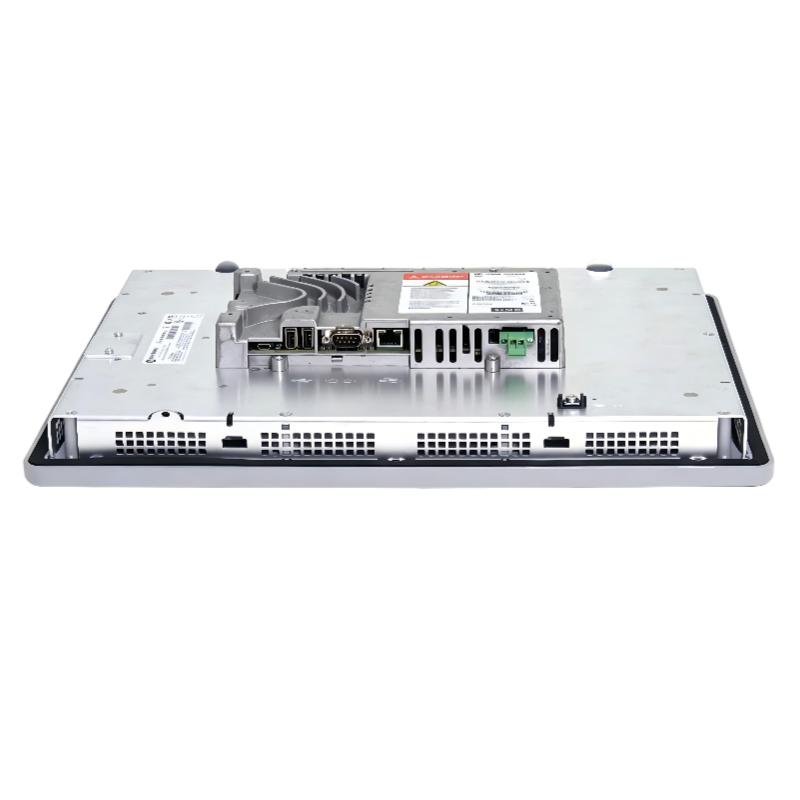

Allen Bradley 2711P-T15C4D9 PanelView Plus 6 1500 Operator Interface
Allen Bradley 2711P-T15C4D9 PanelView Plus 6 1500 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-T15C4D9 Product Origin:USA Product Dimensions:416 x 65 x 330 mm Product Weight:4.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2711P-T15C4D9 PanelView Plus 6 1500 Operator Interface is a large-format industrial HMI designed for advanced machine visualization and control. Featuring a 15-inch color touchscreen and robust communication capabilities, it provides operators with clear, real-time access to critical process data. Built on the reliable PanelView Plus 6 platform, it remains a widely deployed solution in manufacturing, process control, and industrial automation environments requiring stable and long-term HMI performance.
Technical Specifications
Parameter
Specification
Dimensions
416 mm × 65 mm × 330 mm
Weight
4.2 kg
Display
15-inch color TFT LCD
Resolution
1024 × 768 (XGA)
Input Type
Touchscreen
Communication
Ethernet / RS-232 / USB
Operating System
Windows CE 6.0
Mounting Type
Panel mount
Power Supply
18–30 VDC
Recommended Related Models
Model
Product Name
2711P-T10C4D9
PanelView Plus 6 1000 Touch Operator Interface
2711P-B15C4A9
PanelView Plus 6 1500 Keypad/Touch Variant
2711P-K15C4D9
PanelView Plus 6 1500 Keypad Terminal
2711P-RP8A
PanelView Plus Logic Module
Popular Related Models
Model
Product Name
2711P-T15C4D9
PanelView Plus 6 1500 Touch Operator Interface
2711P-T10C22A9P
PanelView Plus 7 1000 Operator Interface
2711P-B10C4A9
PanelView Plus 6 1000 Operator Interface
2711P-K10C4A8
PanelView Plus 6 1000 Keypad Terminal
Applications
• Provides high-level operator visualization for large industrial automation systems.
Commonly deployed in manufacturing lines, process plants, and power generation control rooms.
• Enables real-time interaction with PLC systems via Ethernet and serial communication.
Supports integration with ControlLogix and CompactLogix controllers for centralized automation.
• Displays alarms, process trends, and machine status information.
Helps operators respond quickly to production changes and abnormal conditions.
• Serves as a primary HMI terminal for SCADA-level monitoring at machine or line level.
Improves operational transparency and reduces downtime in complex systems.
Key Advantages
• Large 15-inch high-resolution industrial touchscreen.
Provides clear visualization for complex process data and multi-window HMI applications.
• Dual communication architecture.
Supports Ethernet and RS-232 for flexible integration with modern and legacy PLC systems.
• Rugged industrial-grade construction.
Designed for vibration resistance, electrical noise immunity, and continuous operation.
• Windows CE-based embedded platform.
Ensures stable runtime performance with FactoryTalk View ME compatibility.
• High operator efficiency interface.
Combines intuitive touch control with reliable industrial responsiveness.
Technical FAQs
1. Does this PanelView Plus 6 1500 support Ethernet communication?
Yes, it supports Ethernet communication for PLC connectivity and remote data exchange.
2. Is it compatible with ControlLogix and CompactLogix PLC systems?
Yes, it integrates seamlessly with both ControlLogix and CompactLogix platforms.
3. What software is used to program this HMI?
It is programmed using FactoryTalk View Studio Machine Edition.
4. Does it support both touchscreen operation and keypad input?
Yes, it supports touchscreen-based operation, and some configurations may include keypad support.
5. What operating system does it use?
It runs on Windows CE with extended industrial HMI features.
6. Can it operate in harsh industrial environments?
Yes, it is designed for high vibration, dust, and electrical noise environments.
7. Is remote monitoring possible through this terminal?
Yes, Ethernet connectivity enables remote diagnostics and system monitoring.
8. Does it support alarm and event logging?
Yes, it supports detailed alarm management and historical event tracking.
9. Is this model still actively manufactured?
No, it is a legacy PanelView Plus 6 model but still widely used in installed systems.
10. Can it replace older PanelView terminals easily?
Yes, it is commonly used as an upgrade path from older PanelView Standard and PanelView 600/1000 series.
