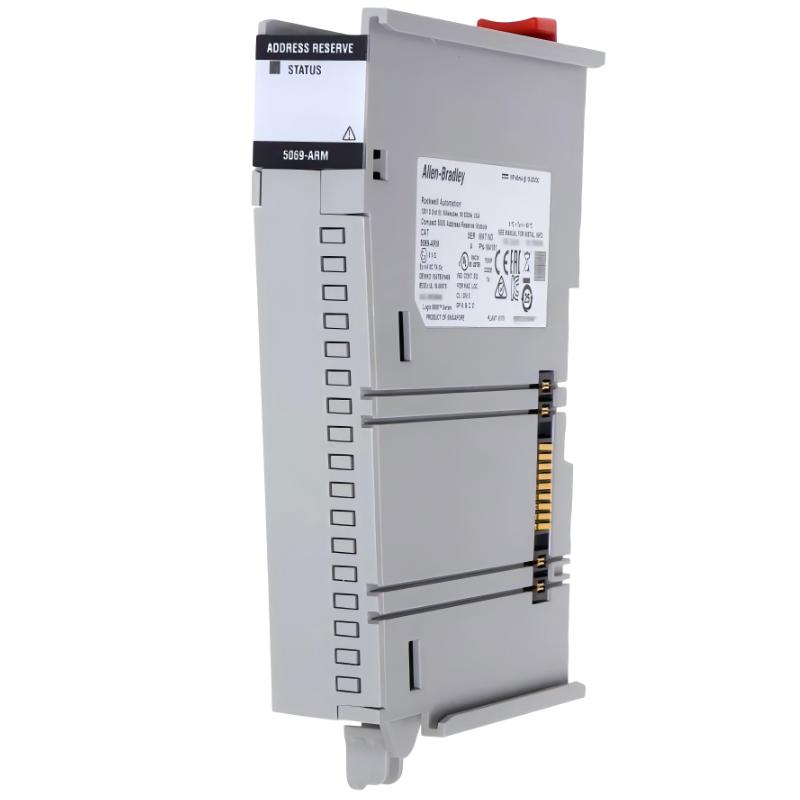

Allen Bradley 5069-ARM Compact 5000 Address Reservation Module
Allen Bradley 5069-ARM Compact 5000 Address Reservation Module
0.0
Points
Brand:Allen Bradley PLC Item No.:5069-ARM Product Origin:USA Product Dimensions:144.57 x 25.56 x 109.09 mm Product Weight:0.175 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5069-ARM Compact 5000 Address Reservation Module is a compact and reliable solution for managing IP and node addresses in Compact 5000 automation networks. Designed to prevent network conflicts and simplify configuration, it is ideal for multi-node, modular, or large-scale industrial automation systems. Its plug-and-play design and industrial-grade reliability make it an essential component for EtherNet/IP network stability and control system efficiency.
Technical Specifications
Parameter
Specification
Dimensions
144.57 mm × 25.56 mm × 109.09 mm
Weight
0.175 kg
Function Type
Address Reservation Module
Communication
EtherNet/IP
Operating Temperature
0°C to +55°C
Mounting Type
Compact 5000 rack-mounted
Material
Industrial-grade polymer and metal housing
Recommended Related Models
Model
Product Name
5069-L330ERM
Compact 5000 Controller, EtherNet/IP
5069-IB16
Compact 5000 Digital Input Module
5069-OB16
Compact 5000 Digital Output Module
5069-OF4
Compact 5000 Analog Output Module
Popular Related Models
Model
Product Name
5069-ARM
Compact 5000 Address Reservation Module
5069-L320ERM
Compact 5000 Controller, EtherNet/IP variant
5069-IF8
Compact 5000 Analog Input Module
5069-OB32
Compact 5000 Digital Output Module
Applications
• Provides IP and node address reservation for Compact 5000 controllers.
Ensures stable and conflict-free network operation in EtherNet/IP environments.
• Supports distributed control systems with multiple Compact 5000 nodes.
Simplifies configuration in complex industrial automation networks.
• Integrates seamlessly with ControlLogix and CompactLogix systems.
Enables efficient IP management across multiple automation devices.
• Ideal for modular or large-scale industrial plants.
Helps prevent communication conflicts and reduces network setup time.
Key Advantages
• Ensures stable IP address allocation.
Reduces risk of network conflicts and downtime in EtherNet/IP systems.
• Compact and lightweight design.
Fits easily into Compact 5000 racks without taking additional space.
• Simplifies network management.
Centralizes address configuration for multi-node CompactLogix and ControlLogix networks.
• Robust industrial reliability.
Designed to operate in standard industrial temperature ranges with vibration and noise tolerance.
• Easy integration with existing systems.
Plug-and-play design reduces installation time and configuration errors.
Technical FAQs
1. What is the main function of the 5069-ARM module?
It reserves and manages IP addresses for Compact 5000 controllers to prevent network conflicts.
2. Is it compatible with all Compact 5000 controllers?
Yes, it is designed for use with the Compact 5000 controller family.
3. Can it handle multiple address reservations simultaneously?
Yes, it can reserve addresses for multiple nodes in a network segment.
4. Does it require external power?
No, it draws power directly from the Compact 5000 backplane.
5. Is it hot-swappable in a running rack?
Yes, it can be installed or removed while the rack is powered, following standard safety procedures.
6. Can it operate in harsh industrial conditions?
Yes, it is designed to withstand vibration, temperature changes, and industrial electrical noise.
7. Does it require software configuration?
Minimal configuration may be required in Studio 5000 to align reserved addresses with the network plan.
8. Is it compatible with EtherNet/IP networks?
Yes, it is specifically designed to manage IP addresses in EtherNet/IP networks.
9. Can it be used in multi-rack systems?
Yes, it is suitable for use in multi-rack Compact 5000 setups for network address consistency.
10. How does it improve network reliability?
By reserving addresses and preventing conflicts, it ensures uninterrupted communication across the automation network.
