Introduction

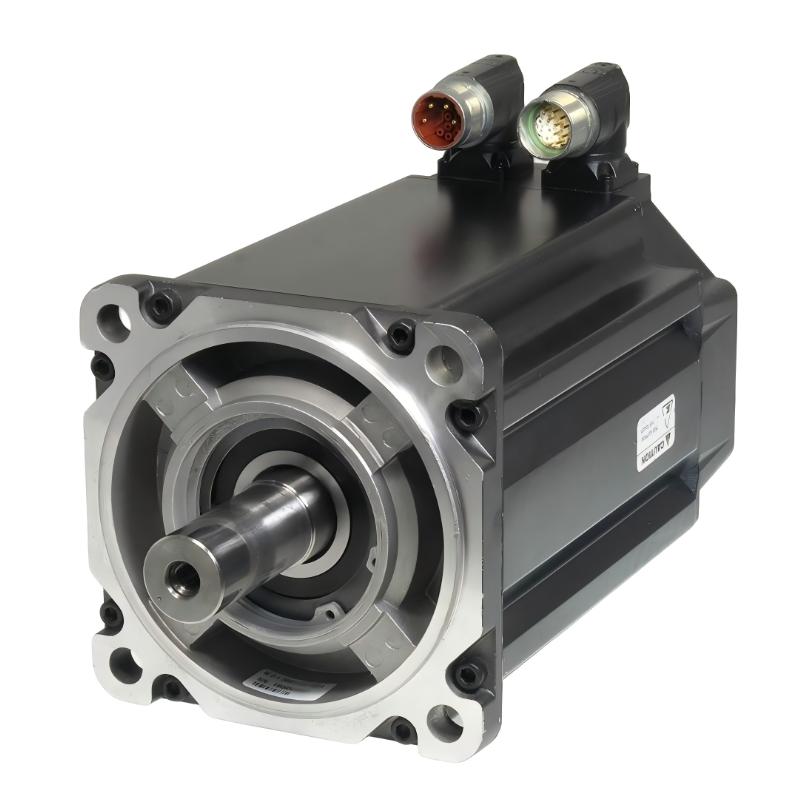

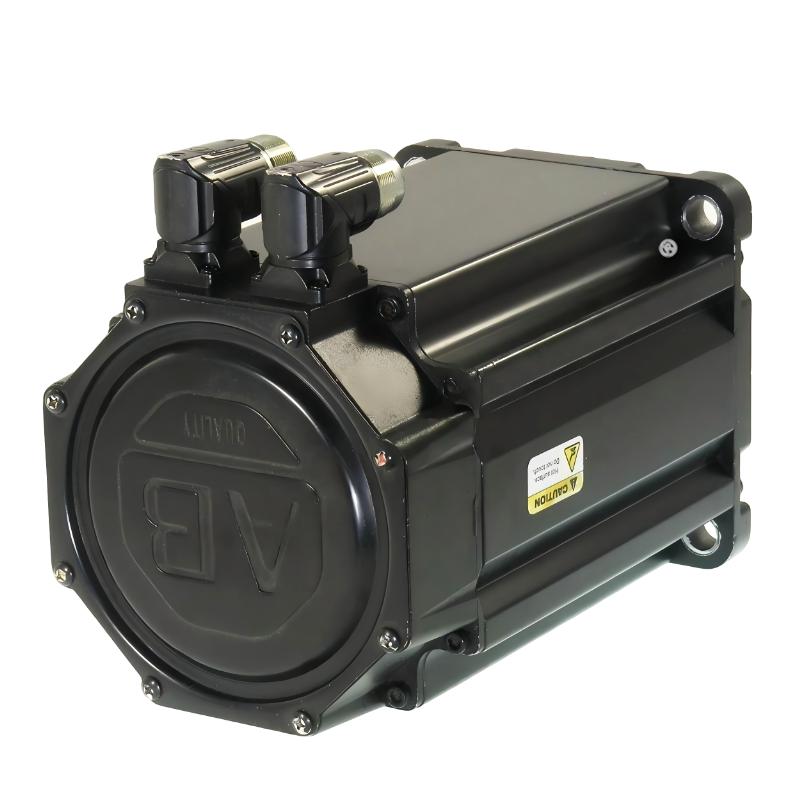

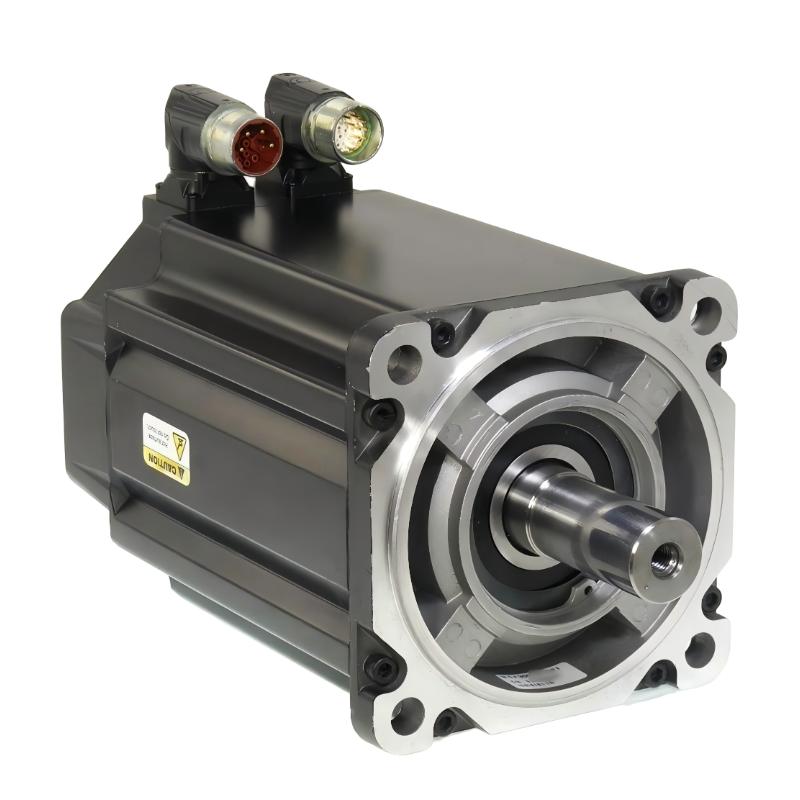

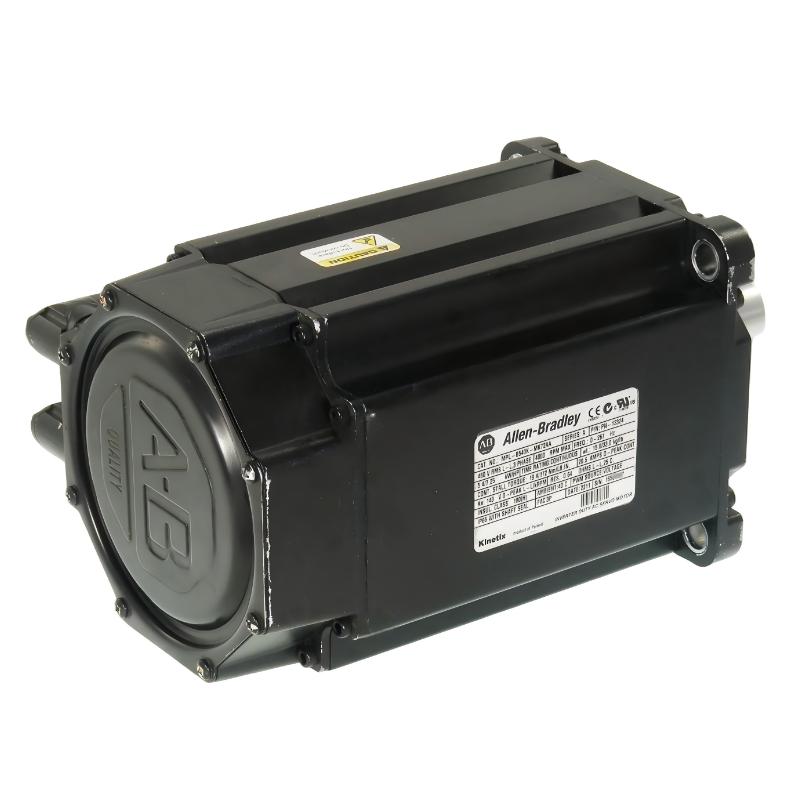

The Allen-Bradley MPL-B540K-MK72AA is a high-performance MP-Series brushless servo motor designed for precision motion control in industrial automation systems. With a 165 mm frame size and low-inertia rotor design, it delivers fast dynamic response and high torque density. Engineered for integration with Kinetix servo drive platforms, it provides accurate positioning, smooth motion, and reliable performance in demanding manufacturing environments such as robotics, packaging, and material handling.

Technical Specifications

Parameter	Specification
Frame Size	165 mm
Weight	15 kg
Rated Voltage	460 V AC
Motor Type	Brushless AC Servo Motor
Feedback	Multi-turn absolute encoder
Rated Speed	Up to 4000 rpm
Construction	Low inertia rotary servo motor
Connector Type	SpeedTEC DIN connector (variant dependent)
Mounting	IEC metric flange mount
Operating Temperature	0°C to +40°C (typical industrial range)

Recommended Related Models

Model	Product Name
MPL-A540K-MK72AA	240V MP-Series Servo Motor Variant
MPL-B540K-MJ72AA	MP-Series Servo Motor Alternative Configuration
2198-D057-ERS4	Kinetix 5700 Dual-Axis Servo Drive
2094-BC01-M01	Kinetix 5500 Servo Drive

Popular Related Models

Model	Product Name
MPL-B540K-MK72AA	MP-Series Low Inertia Servo Motor
MPL-B350P	MP-Series Compact Servo Motor
MPL-B640D	High Torque MP-Series Servo Motor
2198-EN004-ERS	Kinetix 5700 Network Module

Applications

• Provides high-performance rotary motion control for Kinetix servo drive systems.
Commonly used in packaging, robotics, CNC, and high-speed assembly automation.

• Supports precise positioning and speed control in multi-axis motion systems.
Enables synchronized operation in complex industrial machine architectures.

• Integrates with Allen-Bradley Kinetix 5500, 5700, and similar servo drive platforms.
Ensures seamless motion control within EtherNet/IP-based automation systems.

• Ideal for compact high-torque industrial applications.
Suitable for indexing systems, conveyors, and precision manufacturing equipment.

Key Advantages

• High torque density in compact frame design.
Delivers strong output performance while maintaining a 165 mm frame footprint.

• Low-inertia rotor construction.
Enables fast acceleration and deceleration for dynamic motion applications.

• High-resolution absolute encoder feedback.
Improves positioning accuracy and system repeatability in demanding automation tasks.

• Industrial-grade rugged construction.
Designed for continuous operation in vibration, heat, and electrical noise environments.

• Flexible connector and mounting configuration.
Simplifies integration into existing servo-driven machine designs.

Technical FAQs

1. Is this motor compatible with Kinetix servo drives?
Yes, it is designed for use with Allen-Bradley Kinetix servo drive systems.

2. What type of feedback does this motor use?
It uses a high-resolution multi-turn absolute encoder for precise position feedback.

3. Can it operate in high-speed applications?
Yes, it is rated for high-speed rotary motion up to industrial servo performance levels.

4. Does it require external cooling?
In most applications, natural convection is sufficient, but forced cooling may be used in high-duty cycles.

5. Is it suitable for continuous operation?
Yes, it is designed for industrial continuous-duty servo applications.

6. Can it be used in multi-axis systems?
Yes, it supports synchronized motion in multi-axis Kinetix architectures.

7. Does it include a holding brake?
This configuration is typically supplied without a brake (variant-dependent).

8. Is it resistant to industrial vibration?
Yes, it is engineered for stable operation in high-vibration environments.

9. Does it require calibration after installation?
It may require standard servo drive commissioning and motor identification via the drive system.

10. What makes this motor suitable for precision automation?
Its low inertia, high-resolution feedback, and stable torque output ensure accurate and repeatable motion control.
