Brand:Allen Bradley PLC Item No.:25B-D4P0N104 Product Origin:USA Product Dimensions:172 x 72 x 152 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

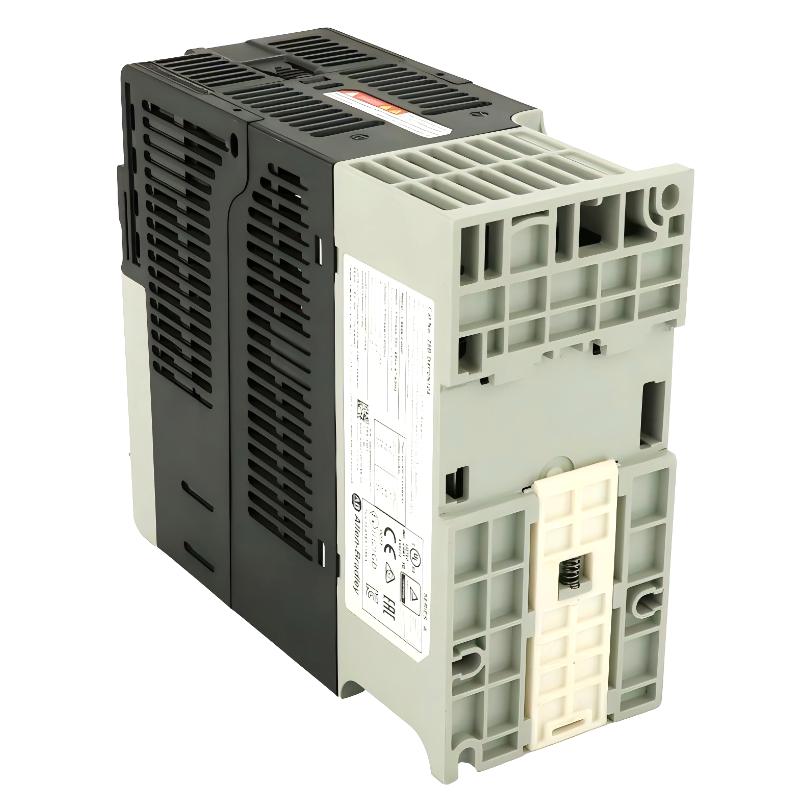

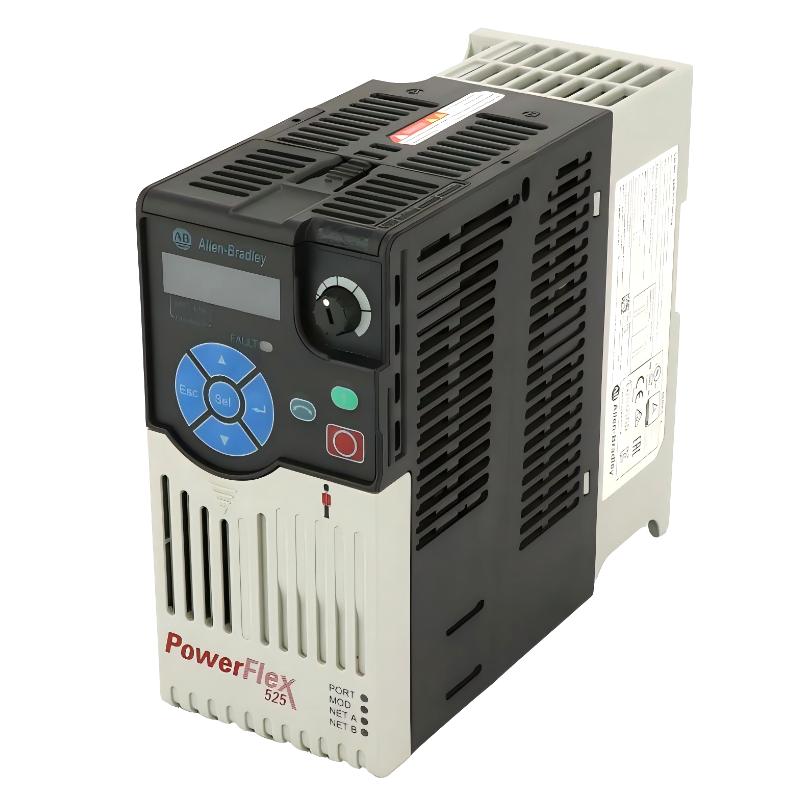

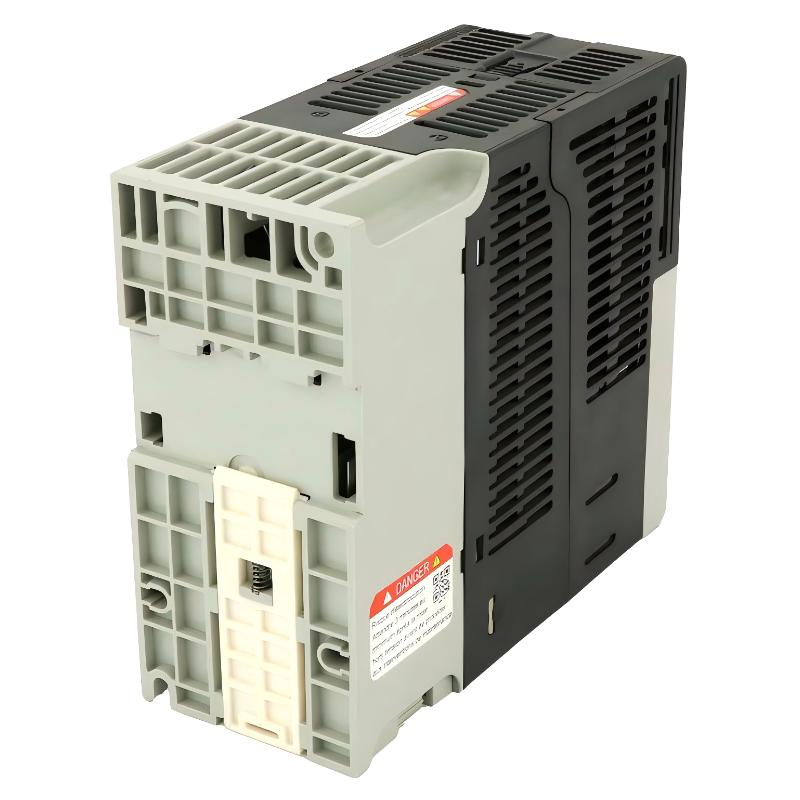

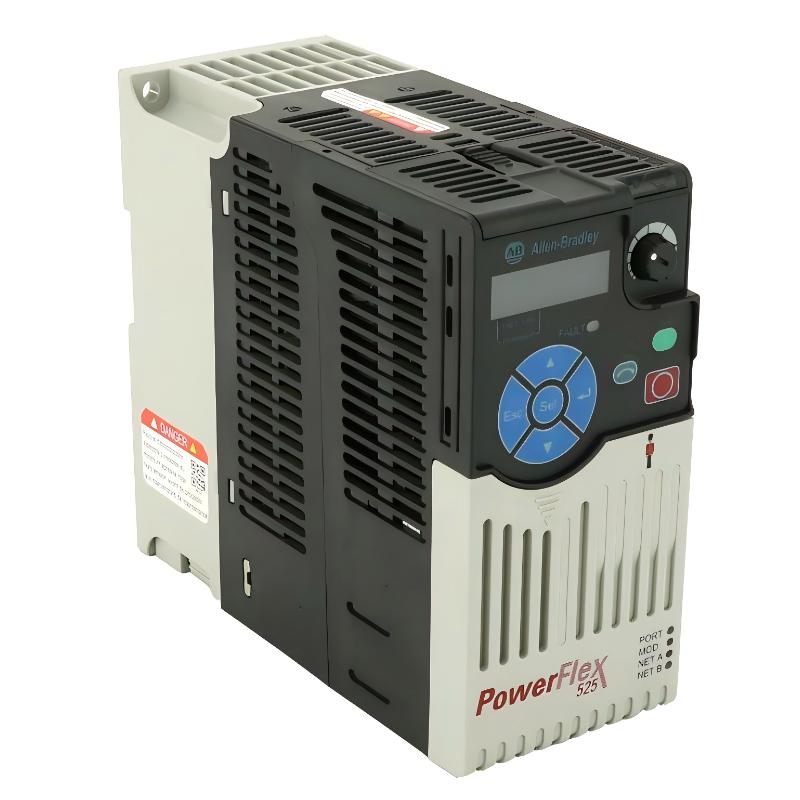

The Allen-Bradley 25B-D4P0N104 PowerFlex 525 AC Drive is a versatile, compact, and energy-efficient VFD designed for small to medium industrial applications. Its precise motor control, EtherNet/IP connectivity, and user-friendly setup make it ideal for conveyors, pumps, fans, and other automated machinery. Built for reliability and space-saving installation, it ensures efficient operation, extended motor life, and seamless integration into Rockwell Automation systems.
Technical Specifications
Parameter
Specification
Dimensions
172 mm × 72 mm × 152 mm
Weight
1.1 kg
Input Voltage
200–240V AC
Output Voltage
0–240V AC
Output Current
4 A
Control Type
V/Hz, Sensorless Vector, Closed-loop Vector
Communication
EtherNet/IP, DeviceNet (optional)
Mounting
Panel mount
Operating Temperature
0°C to +50°C
Protection
Built-in motor overload, short-circuit protection
Recommended Related Models
Model
Product Name
25B-D4P0N104
PowerFlex 525 AC Drive (this model)
25B-D2P0N104
PowerFlex 525 AC Drive 2A, 200–240V
25B-D4P0N115
PowerFlex 525 AC Drive 4A, 380–480V
25B-D5P0N104
PowerFlex 525 AC Drive 5A, 200–240V
Popular Related Models
Model
Product Name
25B-D4P0N104
PowerFlex 525 AC Drive
25B-D4P0N115
PowerFlex 525 AC Drive 380–480V
25B-D2P0N104
PowerFlex 525 AC Drive 2A
25B-D5P0N104
PowerFlex 525 AC Drive 5A
Applications
• Provides reliable motor control for small to medium industrial machines.
Commonly used in conveyors, pumps, fans, and packaging machinery.
• Offers variable frequency drive (VFD) capabilities.
Enables energy-efficient speed control and smooth acceleration/deceleration of AC motors.
• Supports multi-axis and single-axis industrial applications.
Integrates with CompactLogix and ControlLogix systems for coordinated operations.
• Ideal for space-constrained control panels.
Compact design allows mounting in small enclosures without sacrificing functionality.
Key Advantages
• High-performance motor control.
Provides precise speed and torque control for AC induction and permanent magnet motors.
• Built-in EtherNet/IP communication.
Supports easy integration with Rockwell Automation networks and remote monitoring.
• User-friendly setup and programming.
Featuring intuitive keypad interface and parameter configuration via Connected Components Workbench or Studio 5000.
• Energy-efficient operation.
Reduces energy consumption and extends motor life by optimizing drive performance.
Technical FAQs
1. What is the primary function of the 25B-D4P0N104 drive?
It controls AC motors with variable speed and torque for industrial applications.
2. Is it compatible with CompactLogix and ControlLogix systems?
Yes, it supports EtherNet/IP communication for seamless integration.
3. What type of motors does it support?
It supports three-phase AC induction motors and permanent magnet AC motors.
4. Can it handle overload conditions?
Yes, it provides built-in motor overload protection and fault diagnostics.
5. Does it support energy-saving operation?
Yes, it optimizes motor speed and torque for efficient energy use.
6. Is it suitable for harsh industrial environments?
Yes, it is rated for industrial operating conditions, including vibration and temperature fluctuations.
7. Can it be mounted in small enclosures?
Yes, its compact dimensions allow installation in limited-space control panels.
8. How is it programmed?
Via the keypad interface, Connected Components Workbench, or Studio 5000 software.
9. Does it provide network monitoring?
Yes, EtherNet/IP enables remote monitoring and diagnostics.
10. Can it be used in multi-drive systems?
Yes, it supports coordinated control in multi-axis or multi-drive configurations.
